Troubleshooting Guide for Ryobi 18V 1 Gallon Electrostatic Sprayer P2870

Quick Troubleshooting Guide

This guide provides essential troubleshooting steps for the Ryobi 18V 1 Gallon Electrostatic Sprayer (Model P2870). If you encounter operational issues, follow the procedures below to resolve common problems.

Common Issues and Solutions

Leaking From Front

If the unit is leaking from the front, ensure that all o-rings and nozzles are securely in place. Tighten the nozzle selector to ensure a proper seal.

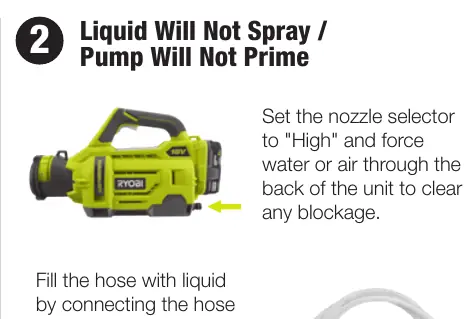

Liquid Will Not Spray / Pump Will Not Prime

If the pump fails to prime or liquid does not spray, follow these steps:

• Set the nozzle selector to the High position.
• Force water or air through the back of the unit to clear any potential blockages.
• Fill the hose with liquid by connecting the hose to the tank and pressing down on the metal bar located inside the hose connector.

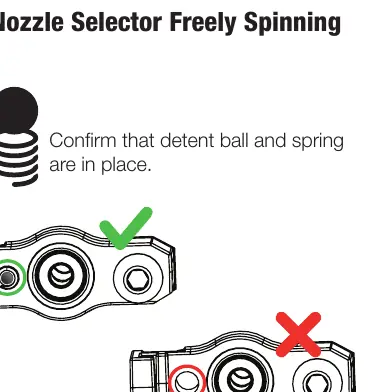

Nozzle Selector Freely Spinning

If the nozzle selector spins freely, confirm that the detent ball and spring are correctly in place.

Chemical Safety and Compatibility

Warning: Failure to use a compatible chemical may void your warranty. Read all instructions before using the appliance.

• Do not use bleach, alcohol-based chemicals, chlorine, hypochlorous acid, or hydrogen peroxide.
• Do not use tablets, powder, or abrasive chemicals.
• Do not combine chemicals.
• The sprayer is compatible with most water-soluble chemicals. Please refer to the official Compatible Chemicals List for the most up-to-date information.

Customer Support

If your issue is not listed here or you require further assistance, please contact the electrostatic sprayer customer support team at 1 (800) 525 - 2579.
