Sanela SLP 02K, SLP 02KZ Infrared Flushing Unit User Manual
Quick guide for the Sanela SLP 02K and SLP 02KZ infrared flushing units. Includes installation steps, wiring diagrams, maintenance tips, and technical specifications.
Table of contents
Manual images
Jump to the sectionQuick guide from the manual
This document provides installation and maintenance instructions for the Sanela SLP 02K and SLP 02KZ infrared flushing units. These units are designed for automatic urinal flushing. Key operational parameters include a sensing range of 0.3 - 0.7 m and an adjustable flushing time of 0.15 - 15.5 seconds.
Installation
The installation process involves mounting the unit into the wall and connecting the water supply and power. Ensure a minimum distance of 200 mm is maintained. The system operates on 24V DC. For the SLP 02KZ model, ensure the 230V/50Hz power supply is correctly connected to the transformer.
Operation
The unit features an automatic infrared sensor. When a user enters the sensing range (0.3 - 0.7 m), the unit prepares for operation. After the user leaves, the flushing cycle is triggered. The flushing time can be adjusted using the appropriate remote control (SLD 03).
Maintenance
To ensure reliable operation, perform the following maintenance at least once a year:
- Check the electromagnetic valve filter for debris and clean if necessary.
- Check the tightness of all screw connections.
- Inspect and clean connector contact surfaces.
- Clean stainless steel components using only water, soap, and a soft cloth. Do not use aggressive or abrasive cleaning agents.
Technical Specifications
- Operating pressure: 0.1 - 0.8 MPa
- Power supply: 24V DC
- Sensing range: 0.3 - 0.7 m
- Flushing time: 0.15 - 15.5 seconds
Manufacturer information
SANELA spol. s r. o.
Practical help
Common problems
Valve blockage due to water impurities
Clean the electromagnetic valve filter at least once a year.
Loose connections
Check and tighten all screw connections and connector contacts annually.
Before use
- Ensure water pressure is between 0.1 and 0.8 MPa.
- Verify 24V DC power supply is correctly wired.
- For SLP 02KZ, ensure the 230V/50Hz transformer is installed.
- Check that the sensor range is clear of obstructions (0.3 - 0.7 m).
- Ensure all stainless steel surfaces are clean and free of abrasive residues.
Specs in practice
- Operating Pressure (0.1 - 0.8 MPa)
- The required water pressure range for the valve to function correctly.
- Sensing Range (0.3 - 0.7 m)
- The distance at which the infrared sensor detects a user.
- Flushing Time (0.15 - 15.5 sec)
- The duration of the water flow per flush cycle.
Images and diagrams

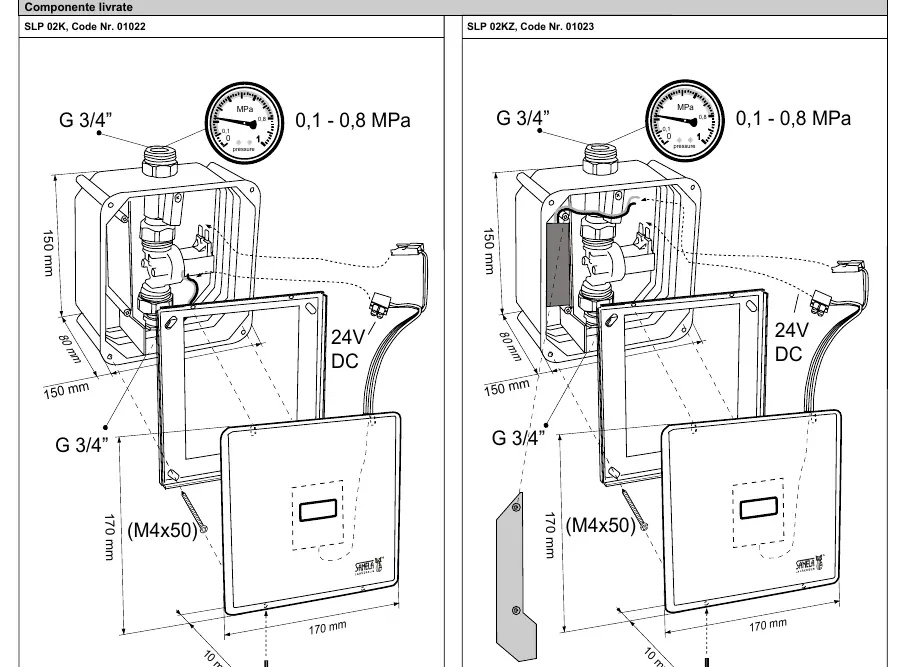

- Page 1 shows the physical dimensions and the G 3/4 inch water connection.

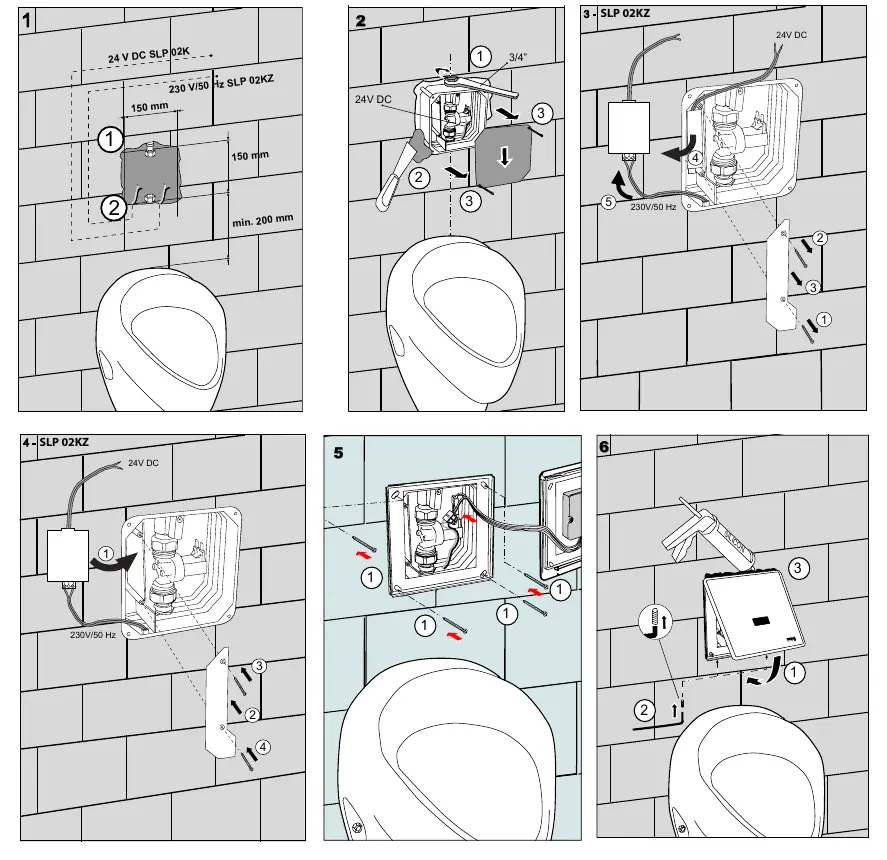

- Page 2 provides step-by-step installation diagrams for both models, including wiring for 24V DC and 230V/50Hz.
- Page 2, step 7c illustrates the automatic adjustment process.
Model compatibility
- Use SLZ 01Y power supply for up to 5 units.
- Use SLZ 01Z power supply for up to 9 units.
- Use SLD 03 remote control for parameter adjustments.
- Use SLA 02 inlet fitting for urinals with back water supply.
