Sanela SLW 04PA Vandal Proof Toilet Flushing Unit Instruction Manual
Quick guide for the Sanela SLW 04PA vandal-proof piezo-controlled toilet flushing unit. Includes installation steps, parameter settings, maintenance, and technical specifications.
Table of contents
Manual images
Jump to the sectionQuick guide from the manual
The Sanela SLW 04PA is a vandal-proof, piezo-controlled toilet flushing unit designed for 24V DC operation. This document provides essential installation, configuration, and maintenance instructions. Ensure the unit is connected to a constant voltage power supply and not controlled by a light switch circuit for proper operation.
Installation
Installation must be performed by qualified personnel. Before starting, ensure you have read the safety instructions. The unit requires a 24V DC power supply. Follow the step-by-step diagrams provided in the manual for mounting the frame, connecting the water supply (0.1 - 0.6 MPa), and wiring the piezo control. Ensure the sieve dimension is ≤ 90 µm.
Operation and Settings
The unit features a main control and a remote control button. Parameters can be adjusted using the Sanela Control app or the SLD 04 remote control. Factory settings include a 5-second flush time. The hygienic flush interval can be set to OFF, 24 hours, 8 flushes, or 8 flushes + 24 hours.
Maintenance
Regular maintenance is recommended to ensure proper function. This includes cleaning the flush valve and checking the sieve. Detailed maintenance instructions are available at www.sanela.eu/service-download.
Technical Specifications
- Power supply: 24V DC
- Water pressure: 0.1 - 0.6 MPa
- Sieve dimension: ≤ 90 µm
- Flush time: 0.5 - 15.5 seconds
Official resources from the manual
Manufacturer information
SANELA spol. s r. o.
Practical help
Common problems
Unit not functioning correctly
Ensure the unit is under constant voltage and not connected behind a light switch circuit.
Water pressure issues
Verify that the water pressure is within the 0.1 - 0.6 MPa range and the sieve is clean.
Before use
- Read all attached safety instructions.
- Ensure a 24V DC power supply is available.
- Check that water pressure is between 0.1 and 0.6 MPa.
- Verify the sieve dimension is ≤ 90 µm.
- Ensure the installation area is prepared according to the provided dimensions.
Images and diagrams

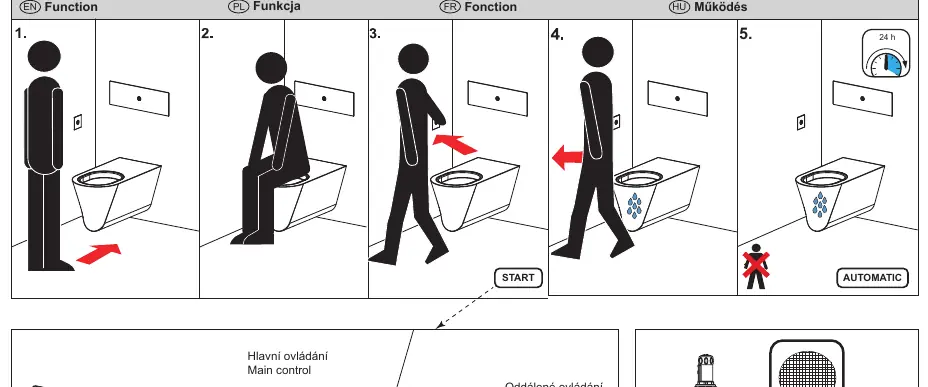

- Page 1: Basic operation and piezo button usage.
- Page 2: Hygienic flush interval settings and component list.

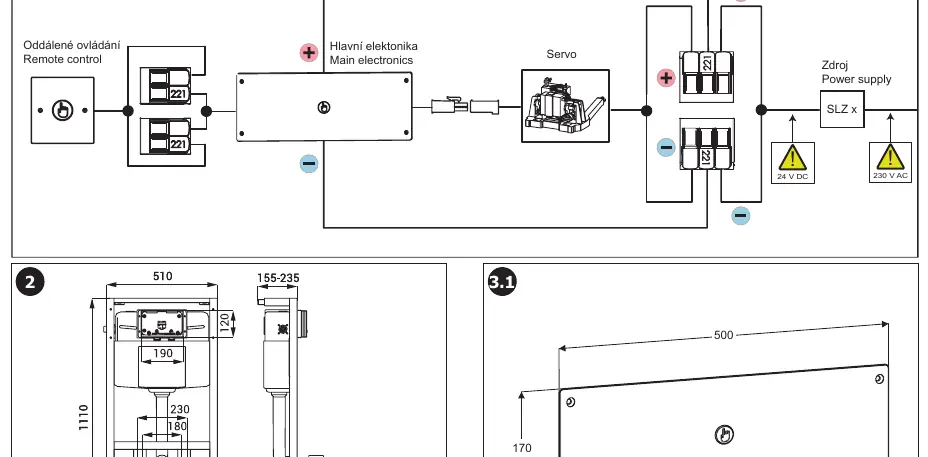

- Page 3: Wiring diagram and installation dimensions.
- Pages 4-10: Step-by-step mechanical installation and assembly.
- Page 12: Flush volume adjustment table.
Model compatibility
- Compatible with SLD 04 remote control for parameter settings.
- Requires external 24V DC power supply (e.g., SLZ 01Y, SLZ 04X).
- Specific installation parts for ceramic vs. stainless steel toilets.
