Sanela SLP 03KB Automatic Urinal Flushing Unit User Manual
Quick guide for the Sanela SLP 03KB automatic urinal flushing unit, covering installation, parameter settings, eco-modes, and maintenance.
Table of contents
Manual images
Jump to the sectionQuick guide from the manual
This document provides installation and configuration instructions for the Sanela SLP 03KB, SLP 03KVB, and SLP 03KBX automatic urinal flushing units. The system operates on 6V power and requires a water pressure between 0.1 and 0.6 MPa. The sieve dimension must be ≤ 90 µm.
Installation
The installation process involves mounting the frame, connecting the water supply, and installing the electronic control unit. Ensure the water supply is within the specified pressure range. Follow the numbered steps in the manual for precise mounting, including drilling holes (Ø 12 mm) and securing the frame with the provided hardware. Ensure the electronic unit is correctly connected to the power source (batteries) and the solenoid valve.
Parameter settings
Parameters can be adjusted using the SLD 03 remote control. Key settings include:
- Detection range: 0.3 - 0.7 m
- Flush duration: 0.5 - 15.5 s
- Hygienic flush interval: OFF / 6 / 8 / 12 / 24 / 48 / 72 / 168 h
Eco modes
The system features two eco-modes for water saving:
- Eco mode 1 (Break Mode): Suitable for environments like schools or stadiums. If no use is detected within a set time (e.g., 300s), the system flushes automatically.
- Eco mode 2 (Office Mode): Suitable for irregular use. Alternates between "small" flushes (1s) for rinsing and "large" flushes (3s) for siphon cleaning based on a set usage count (factory setting 10x).
Maintenance
Regular maintenance is recommended. Monitor battery status via the LED indicator. If the indicator shows a single flash, battery replacement is necessary. Use the Sanela Control application for advanced configuration. For technical support, contact the installation company or visit www.sanela.eu/service.
Official resources from the manual
Manufacturer information
SANELA spol. s r. o.
Practical help
Common problems
LED indicator flashes once
Battery replacement is necessary.
Water pressure issues
Ensure water pressure is between 0.1 - 0.6 MPa and the sieve dimension is ≤ 90 µm.
Before use
- Verify water pressure is 0.1 - 0.6 MPa.
- Ensure sieve dimension is ≤ 90 µm.
- Check that batteries are correctly installed (4x AA alkaline).
- Familiarize yourself with the safety instructions provided in the PDF.
- Ensure the installation area is prepared according to the dimensions provided.
Specs in practice
- Water pressure
- Must be between 0.1 and 0.6 MPa for proper operation.
- Sieve dimension
- Must be ≤ 90 µm to prevent debris from damaging the valve.
- Power supply
- 6V system, powered by 4x AA alkaline batteries.
Images and diagrams
- Pages 6-10 provide a step-by-step visual guide for the physical installation of the frame and electronic components.

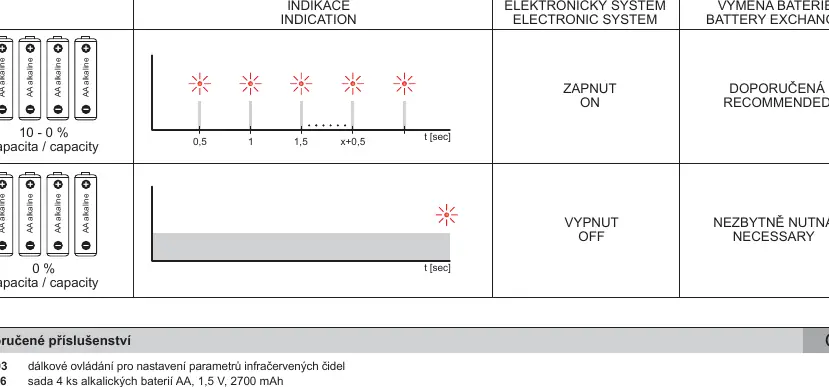

- Page 11 illustrates the battery status indicator and how to interpret the LED signals.
Model compatibility
- Compatible with SLD 03 remote control for parameter adjustment.
- Compatible with SLA 36 alkaline batteries (AA, 1.5V, 2700 mAh).
