Sanela SLP 02K Series Urinal Infrared Flushing Unit User Manual
Quick guide for the Sanela SLP 02K, SLP 02KVZ, and SLP 02KZX urinal infrared flushing units. Includes installation steps, parameter settings, and maintenance instructions.
Table of contents
Manual images
Jump to the sectionQuick guide from the manual
This document provides installation and configuration instructions for the Sanela SLP 02K series infrared urinal flushing units. The system requires a constant power supply and is designed for automatic, touch-free operation. Users can adjust parameters such as flushing time, detection range, and hygienic flush intervals using the SANELA Control application or the SLD 03 remote control.
Installation
Before installation, ensure you have read the safety instructions. The unit must be connected to a constant voltage source and must not be connected behind a light switch circuit.
- Ensure the power supply is off before starting.
- Install the mounting box according to the provided dimensions (140mm x 140mm).
- Connect the 230V AC power supply to the unit.
- Secure the unit in the wall and attach the front cover.
- Ensure all connections are tight and the unit is properly sealed.
Operation and Settings
The system features automatic flushing based on user detection. Factory settings include a 7.5s detection time and a 24h hygienic flush interval. Advanced modes like Eco 1 (Break mode) and Eco 2 (Office mode) are available for specific environments to optimize water consumption.
- Eco 1 (Break Mode): Suitable for schools or stadiums. It prevents flushing during frequent use periods and flushes automatically after a set time of inactivity.
- Eco 2 (Office Mode): Alternates between short rinses and long flushes to clean the siphon effectively.
Maintenance
Regular maintenance is recommended to ensure proper function. Keep the sensor area clean and ensure the water supply pressure is within the 0.1 - 0.6 MPa range. The sieve dimension must be ≤ 90 µm to prevent clogging.
Manufacturer information
SANELA spol. s r. o.
Practical help
Common problems
Unit not flushing
Check if the power supply is constant and not connected to a light switch circuit. Verify the sensor is clean.
Water pressure issues
Ensure the water pressure is between 0.1 and 0.6 MPa and the sieve is not clogged (sieve dimension ≤ 90 µm).
Before use
- Ensure the power supply is constant (not connected to a light switch).
- Verify water pressure is within 0.1 - 0.6 MPa.
- Check that the sieve is clean (≤ 90 µm).
- Ensure the installation environment is suitable for the chosen Eco mode.
Specs in practice
- Operating Voltage
- 230V AC, must be a constant supply.
- Water Pressure
- 0.1 - 0.6 MPa required for proper valve operation.
- Detection Range
- Factory setting 0.3 - 0.7 m, adjustable.
Images and diagrams

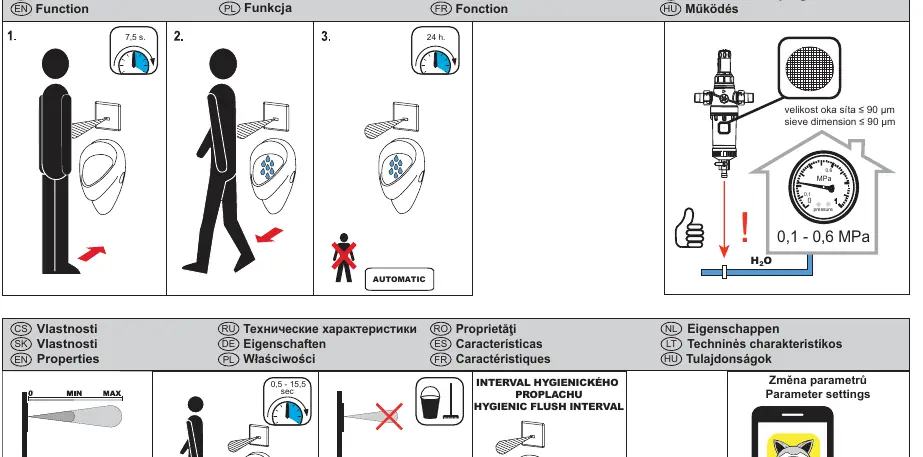

- Page 1: Standard function and factory settings overview.

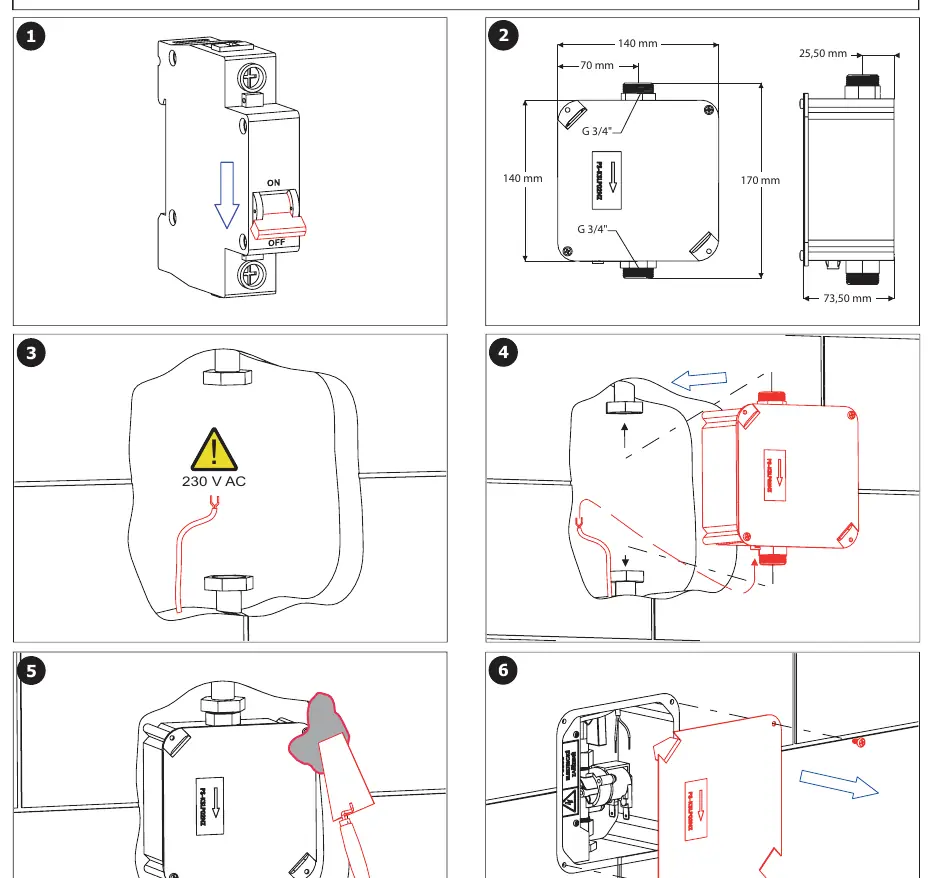

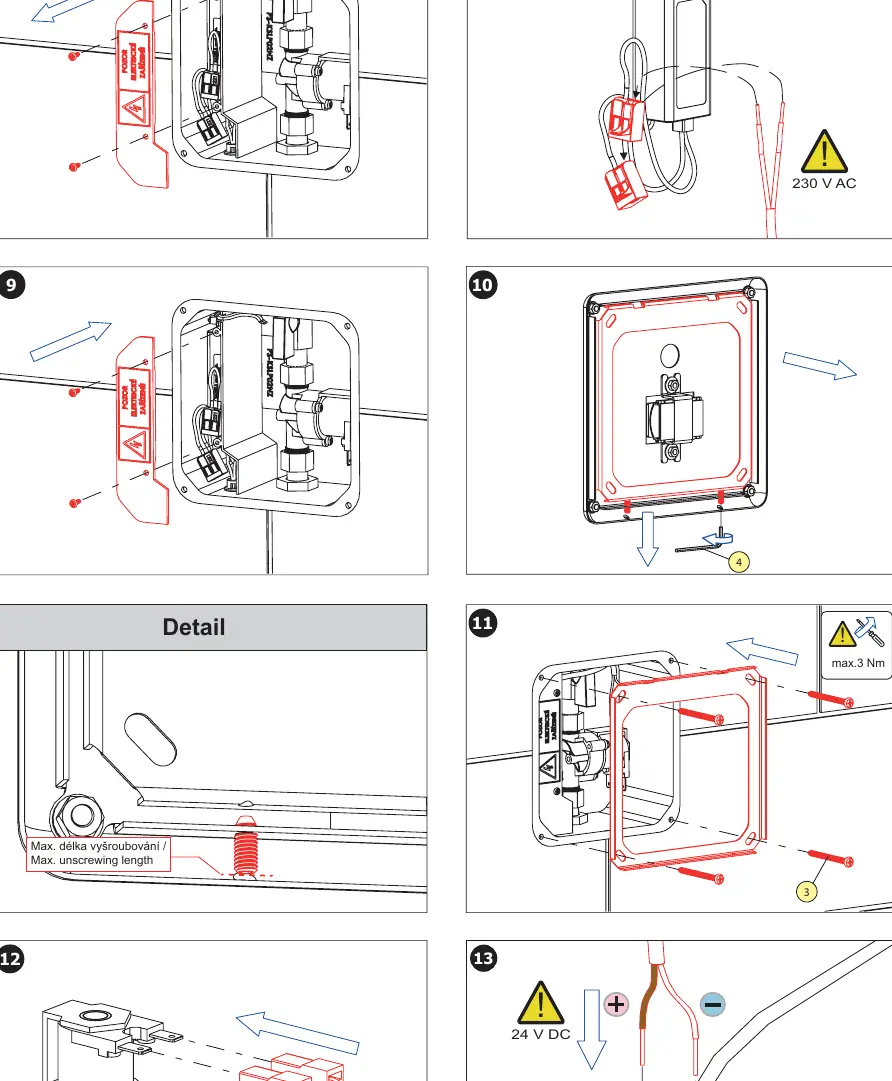

- Page 4-5: Step-by-step installation and electrical connection guide.
- Page 6: Adjustment mode and recommended accessories.
Model compatibility
- Compatible with SLA 02 inlet fitting.
- Compatible with SLD 03 remote control for parameter adjustment.
- Compatible with SLR 08 and SLR 22 mounting frames.
Manual page author
Emily Carter
User documentation editor
Prepares concise manual descriptions and highlights the most useful setup, operation, and maintenance information for readers.
