User Manual for Sebson C120 Mirror Light
Quick guide for the Sebson C120 mirror light, including installation steps, safety warnings, technical specifications, and maintenance instructions.
Table of contents
Quick guide from the manual
This document provides essential instructions for the installation and safe operation of the Sebson C120 mirror light. It is designed for indoor use, including damp rooms, and must be installed by a qualified professional in accordance with local electrical regulations.
Safety information
- Danger: Always disconnect the power supply before installation. Use a voltage tester to ensure the line is de-energized.
- Danger: Do not use the product if it is damaged or has come into contact with moisture.
- Caution: Do not look directly into the light source. Never direct the light beam at people or animals.
- Warning: Do not connect a dimmer, as it may damage the lamp. Do not cover the light with heat-insulating materials.
- The built-in LED light source cannot be replaced.
- Any modification to the product voids the warranty.
Installation
The installation must be performed by a qualified electrician. Ensure that no gas, water, or electrical lines are present at the drilling location before mounting.
- Ensure a minimum distance of 50cm between the illuminated surface and the lamp.
- Wiring: Connect the live wire (black or brown) to L and the neutral conductor (blue or grey) to N.
Cleaning and maintenance
Before cleaning, always switch off the power supply. Use a slightly moistened cloth. Do not use solvent-based cleaners and never clean the device under running water. Ensure no water penetrates the housing.
Technical data
- Operating voltage: 220-240V AC 50/60Hz
- Power: 15W
- Luminous flux: 1500lm
- Color temperature: 4000K
- Protection class: IP44, Class II
Practical help
Common problems
Light does not turn on
Check if the power supply is connected and the circuit breaker is switched on. Ensure the installation was performed correctly by a professional.
Risk of overheating
Do not cover the lamp with heat-insulating materials and ensure proper ventilation.
Before use
- Check the product for external damage before installation.
- Ensure all packaging materials are removed.
- Verify that the power circuit is interrupted and de-energized.
- Confirm the mounting surface is suitable and free of hidden pipes or wires.
- Ensure a minimum distance of 50cm from the illuminated area.

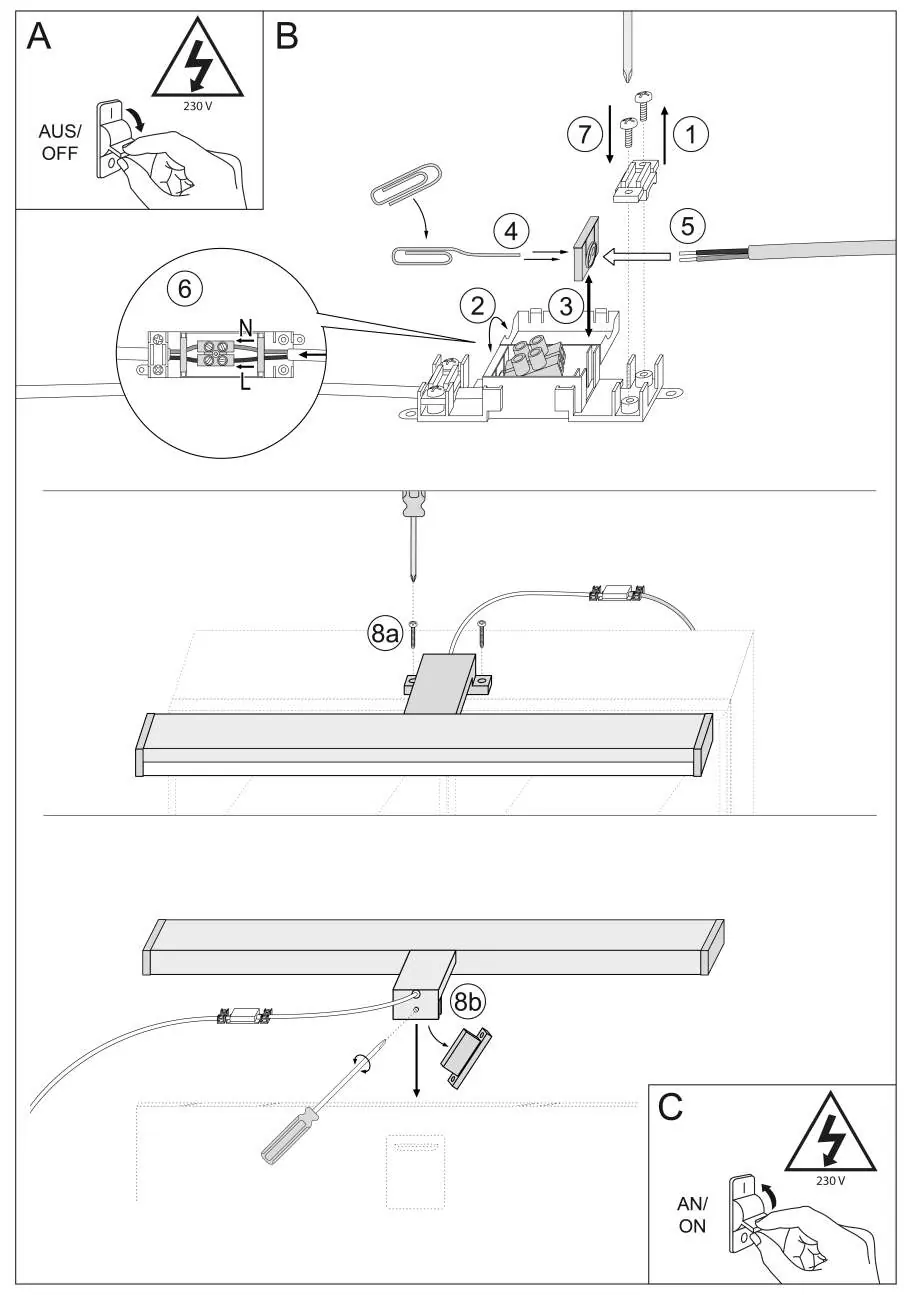

Images and diagrams
- Step A: Turn off the power supply.
- Step B: Follow the wiring diagram to connect the L (live) and N (neutral) wires to the terminal block.
- Step C: Secure the lamp to the surface and turn the power back on.
Model compatibility
- Not suitable for outdoor use.
- Do not connect to a dimmer switch.
- For indoor use only.
