SHAD Top Master Fitting Kit for Voge 500 R (2020)

Product Overview

The SHAD Top Master fitting kit (V0VR50ST) is a specialized mounting system engineered for the Voge 500 R 2020 motorcycle. This kit allows for the secure attachment of a SHAD top case to your vehicle, providing a stable and reliable luggage solution for your travels. The system is designed to integrate seamlessly with the motorcycle's existing frame structure, ensuring both aesthetic harmony and structural integrity.

Safety and Installation Guidelines

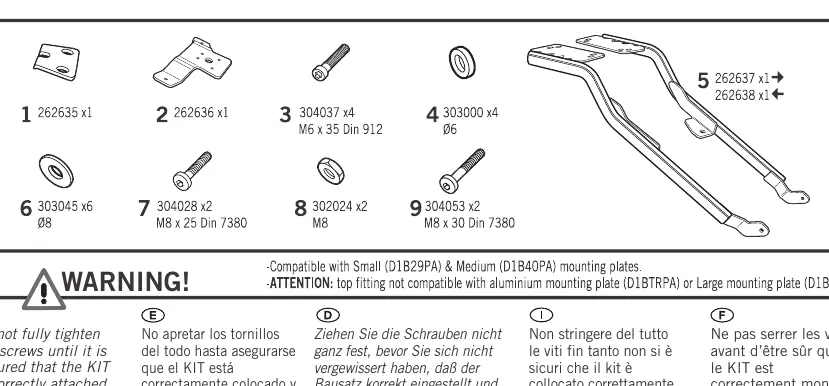

Before beginning the installation, ensure that you have all the necessary components provided in the kit, including the mounting plates, screws, and washers. It is critical to follow the assembly sequence precisely as illustrated in the provided diagrams. A key safety instruction is to avoid fully tightening any screws until the entire kit is correctly positioned and aligned on the motorcycle. This allows for minor adjustments during the assembly process, preventing unnecessary stress on the mounting points and ensuring a perfect fit.

Assembly Process

The installation involves removing specific seat components and body panels to access the mounting points on the motorcycle frame. Once access is gained, the kit components are secured using the provided hardware. Pay close attention to the orientation of the mounting plates and the placement of washers, as these are essential for maintaining the correct spacing and stability of the top case rack. The process concludes with the reinstallation of the motorcycle's seat and bodywork, ensuring that all parts are properly aligned and secured.

Maintenance and Compatibility

Regular maintenance of the mounting kit is recommended to ensure long-term performance. Periodically check that all screws remain tight, especially after the first few rides following installation. The SHAD Top Master kit is compatible with various SHAD mounting plates, including the Small (D1B29PA) and Medium (D1B40PA) versions. Please note that this specific kit is not compatible with aluminium mounting plates (D1BTRPA) or large mounting plates (D1B481PA). Always verify compatibility with your specific top case model before finalizing your setup. For further information or support regarding compatibility with models in other continents, please consult the official SHAD website.
