Shada 2-In-1 Ceiling Motion Sensor PIR 360°
A comprehensive guide for the Shada 2-In-1 Ceiling Motion Sensor. Learn how to install, wire, and adjust the PIR 360° sensor settings for optimal indoor lighting control.
Quick answers from the manual
Quick answer
- The Shada 2-in-1 Ceiling Motion Sensor requires a 75mm ceiling cutout. It operates at a 360° angle with a detection range of 1-8m at a mounting height of 2.2-4m. p. 1
Key actions
- Cut a 75mm hole in the ceiling. p. 1
- Connect wires to L (Power), N (Power), and A (Load). p. 1
Problems and fixes
Light does not turn on
Check wiring connections and adjust LUX settings.
p. 1Maintenance and reset
- Clean the exterior with a soft, dry cloth. Do not use abrasive cleaners. p. 2
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Detection Angle | 360° | Full circular coverage | p. 1 |
| Mounting Height | 2.2-4m | Recommended installation height | p. 1 |
| Time Delay | 10s - 7min | Adjustable light duration | p. 1 |
Where to find it in the PDF
- Installation and Settings p. 1
- Safety and Maintenance p. 2
Table of contents
Manual images
Click an image to enlargeQuick Guide
The Shada 2-in-1 Ceiling Motion Sensor is designed for indoor use to automate lighting based on movement. Key installation steps include cutting a 75mm hole in the ceiling, connecting the power and load wires, and adjusting the sensitivity and time delay settings.
Installation
Before starting, ensure the power supply is switched off at the main breaker to prevent electric shock.
- Hole Preparation: Cut a 75mm diameter hole in the ceiling where the sensor will be installed.
- Wiring: Connect the wires to the terminal block as indicated on the device:
- L: Live (Power)
- N: Neutral (Power)
- A: Load (Output to the light)
- Mounting: Insert the sensor into the prepared hole. The spring clips will secure the unit in place.
Settings and Adjustments
The sensor features two adjustment knobs located on the side of the housing:
- LUX: Adjusts the ambient light threshold (10-2000 lux). This determines at what light level the sensor will activate.
- TIME: Adjusts the duration the light remains on after motion is detected (10 seconds to 7 minutes).
Technical Specifications
- Detection Angle: 360°
- Mounting Height: 2.2m to 4m
- Detection Range: 1m to 8m radius
- Protection Rating: IP20 (Indoor use only)
Safety and Maintenance
Always disconnect the power before performing any maintenance. Do not cover the sensor, as this may cause overheating. Clean the exterior of the device with a soft, dry cloth; do not use abrasive cleaners or solvents. If the device is damaged or not functioning correctly, do not attempt to repair it; replace the unit.
Manufacturer information
Shada B.V.
Practical help
Common problems
Light does not turn on
Check that the power is connected correctly (L, N, A) and ensure the LUX setting is adjusted to the current ambient light level.
Light stays on too long
Adjust the TIME knob to a shorter duration setting.
Before use
- Ensure power is disconnected at the main breaker
- Verify the ceiling cutout is exactly 75mm
- Confirm the mounting height is between 2.2m and 4m
- Check that wiring matches the L, N, A terminal markings
Images and diagrams

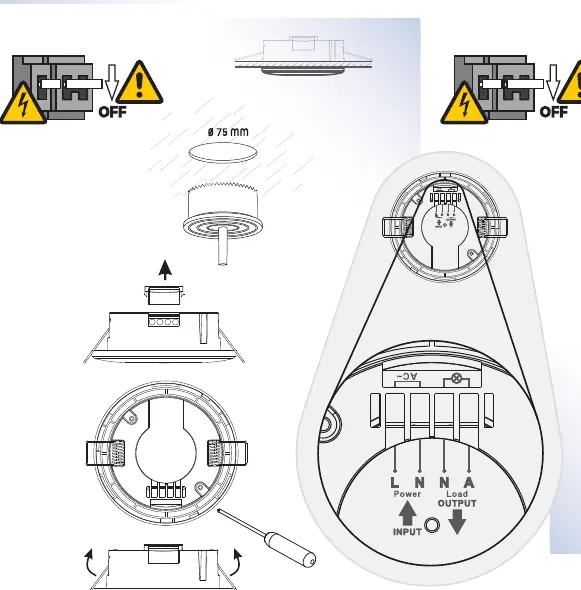

- The wiring diagram indicates L and N for power input and A for the load output.
- The adjustment knobs are located on the side of the sensor housing.
Model compatibility
- Designed for indoor use only.
- Not suitable for dimmable circuits.
