User Manual for Shada Solar LED Floodlight 0300417
Quick guide for the Shada Solar LED Floodlight 0300417. Learn how to install, operate, and configure the lighting modes and battery maintenance.
Table of contents
Quick guide from the manual
The Shada Solar LED Floodlight is a solar-powered lighting solution featuring a motion sensor and multiple operating modes. The device is controlled by a single button that cycles through the following settings:
- 1x press: 18s 100% brightness (motion activated).
- 2x press: 40lm constant brightness + 18s 100% brightness (motion activated).
- 3x press: 40lm constant brightness (sensor off).
- 4x press: OFF.
Installation
To install the floodlight:
- Drill holes in the mounting surface with a distance of 40mm between them.
- Secure the unit to the wall using appropriate screws and plugs.
- Ensure the solar panel is positioned in a location with maximum exposure to direct sunlight for optimal charging.
- The recommended installation height is between 1 and 3 meters.
Maintenance and safety
To ensure the longevity of your device:
- Clean the unit regularly with a soft, damp cloth. Do not use abrasive cleaners or chemicals.
- The device is rated IP54, meaning it is protected against dust and splashing water.
- The internal 18650 Li-ion battery is replaceable. Ensure the battery is handled correctly and disposed of according to local regulations.
- If the light does not function, check the solar panel for dirt or obstructions and ensure the unit is not in the OFF mode.
Manufacturer information
Shada B.V.
Practical help
Common problems
Light does not turn on
Ensure the solar panel is exposed to direct sunlight for charging. Check if the unit is switched to OFF mode.
Sensor not detecting motion
Ensure the installation height is within 1-3 meters and the sensor is not obstructed.
Before use
- Ensure the solar panel is placed in a location with sufficient sunlight.
- Check that the battery is installed correctly.
- Verify the mounting surface is stable.
- Test the operating modes before final installation.
Specs in practice
- 18650 Li-ion
- The type of rechargeable battery used in the device.
Images and diagrams

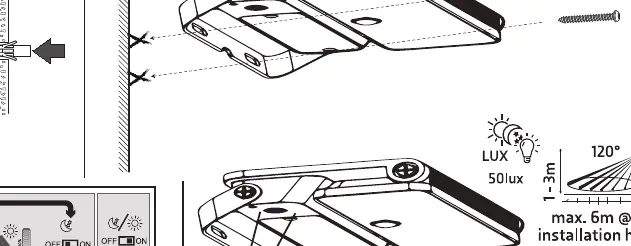

- The diagram shows the drilling distance of 40mm.
- The button cycle shows 4 modes: 18s 100%, 40lm + 18s 100%, 40lm constant, and OFF.
Model compatibility
- Designed for outdoor use.
- Requires direct sunlight for optimal battery charging.
