Shada 1110IM LED Luminaire
Quick guide for the Shada 1110IM LED Luminaire. Includes step-by-step installation instructions, safety warnings, and technical specifications.
Table of contents
Quick guide from the manual
This document provides essential instructions for the safe installation and operation of the Shada 1110IM LED Luminaire. Always ensure the power is disconnected before starting any work. If you are not familiar with electrical installations, please consult a qualified electrician.
Safety Instructions
- Always switch off the power supply at the main breaker before installation or maintenance.
- The luminaire is intended for indoor use only.
- The light source of this luminaire is not replaceable; when the light source reaches its end of life, the whole luminaire must be replaced.
- Do not use abrasive or chemical cleaners.
Installation
- Turn off the power supply at the main breaker.
- Mark the drilling positions on the mounting surface.
- Drill the holes according to the marks.
- Insert the wall plugs into the drilled holes.
- Mount the luminaire bracket to the surface using screws.
- Prepare the electrical wires for connection.
- Connect the wires to the terminal block (L = Live, N = Neutral, Earth symbol).
- Secure the wires properly.
- Attach the luminaire housing to the mounted bracket.
- Secure the luminaire to the bracket.
- Insert the LED tube into the luminaire.
- Turn the power supply back on.
Cleaning and Maintenance
Clean the luminaire only with a soft, dry cloth. Do not use abrasive cleaning agents or solvents, as these may damage the surface of the product.
Disposal
This product is subject to the WEEE directive. Do not dispose of this product with regular household waste. It must be taken to a designated collection point for electrical and electronic waste recycling.
Technical Specifications
- Model: 1110IM
- Power: 6W
- Voltage: 220-240V~
- Frequency: 50/60Hz
- Current: 52mA
Manufacturer information
Shada B.V.
Practical help
Common problems
Luminaire does not turn on
Check if the power supply is switched on at the breaker and ensure all wire connections are secure.
Light source failure
The LED tube is not replaceable. If the light fails, the entire luminaire must be replaced.
Before use
- Ensure the power is disconnected at the main breaker
- Verify the mounting surface is suitable for the luminaire
- Check that the local voltage matches the 220-240V~ requirement
- Ensure you have the necessary tools (drill, screwdriver)
Images and diagrams

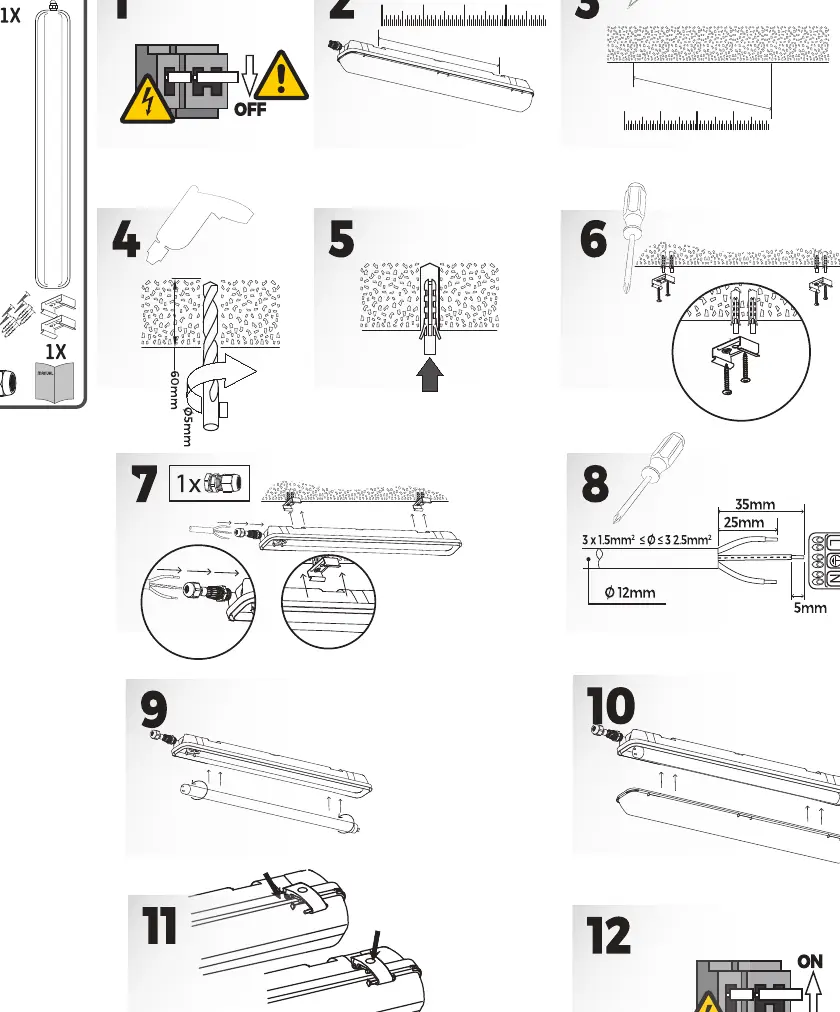

- Steps 1-12 illustrate the complete mounting and wiring process.
- Step 7 specifically details the correct wiring of Live, Neutral, and Earth connections.
- Step 11 demonstrates the correct insertion of the LED tube into the fixture.
Model compatibility
- For indoor use only.
- Not suitable for dimmers unless specified.
- Light source is non-replaceable.
