Simply Retrofits 100W-3CCT LED Area-Parking Light Instruction Manual

Product Overview

The Simply Retrofits 100W-3CCT LED Area-Parking Light is a high-efficiency, solid-state lighting solution designed for versatile outdoor applications. This fixture features a slim, durable design and is engineered for long-term performance with minimal maintenance requirements. It supports a wide input voltage range of 120-347V, making it suitable for various commercial and industrial electrical systems.

Safety and Installation Warnings

Safety is paramount when installing electrical lighting equipment. This product must be installed, inspected, and maintained exclusively by a qualified electrician in strict accordance with all applicable local and national electrical codes. To prevent the risk of fire, electric shock, or explosion, ensure that the main electrical power is completely turned off before beginning any installation or maintenance work. The luminaire must be properly connected to a wiring system that includes an equipment-grounding conductor. Do not install the fixture in environments where ambient temperatures exceed the marked operating temperature on the luminaire nameplate, and ensure that the lens remains tightly closed during operation. Always use supply wires rated for at least 90 degrees Celsius.

Mounting and Installation Methods

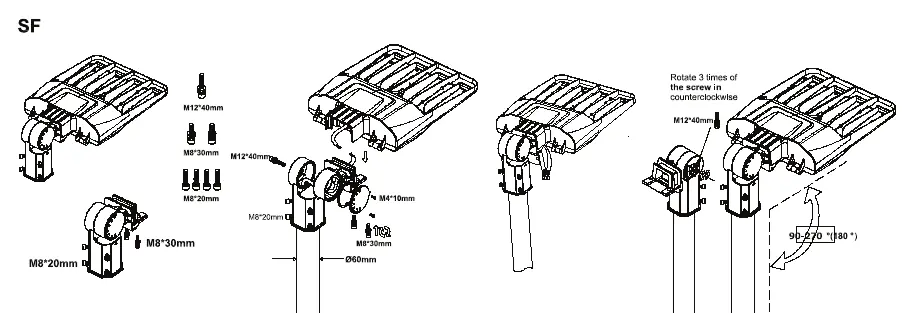

The fixture offers multiple mounting configurations to suit different site requirements, including slip-fitter (SF), trunnion (TR), and round pole/wall mount (RS) options. Each method requires specific hardware provided with the unit. During installation, ensure the lighting fixture is firmly secured to the mounting surface. Verify that all electrical connections are made correctly according to the wiring diagram. After completing the installation, perform a final check to ensure the fixture is stable and functioning correctly before restoring power.

Color Temperature Adjustment

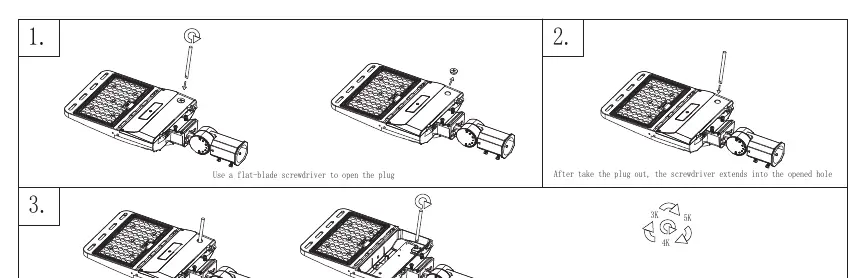

This model features 3-Way CCT (Correlated Color Temperature) adjustability, allowing users to select between 3000K, 4000K, and 5000K color temperatures. To adjust the CCT, locate the adjustment plug on the fixture housing. Use a flat-blade screwdriver to carefully remove the plug. Insert the screwdriver into the exposed hole to engage the internal adjustment knob. Align the knob and turn it clockwise to cycle through the color temperatures in the sequence of 3K, 5K, and 4K. Ensure the plug is securely replaced after the adjustment is complete to maintain the fixture's environmental seal.

Post-Installation Maintenance

Regular maintenance ensures the longevity and efficiency of the LED system. Periodically inspect the fixture for any signs of damage or loose connections. If the light fails to operate correctly, immediately turn off the power supply and contact a local dealer or qualified technician for assistance. Do not attempt to modify the internal components of the luminaire, as this may void the warranty and compromise safety.
