User Manual for Sunjoy 16x12 Hardtop Gazebo A10204368000
Comprehensive assembly and maintenance guide for the Sunjoy 16x12 Hardtop Gazebo (A10204368000). Includes safety warnings, parts list, step-by-step installation instructions, and warranty information.
Quick answers from the manual
Quick answer
- This manual provides assembly instructions for the Sunjoy 16x12 Hardtop Gazebo (A10204368000). It requires at least 4 adults for assembly and should be installed on level ground. p. 1, 2, 3
Key actions
- Assemble on level ground p. 2
- Clear snow from roof p. 2
- Check bolts periodically p. 2
Problems and fixes
Surface rust
Use cooking oil or WD-40 to remove surface rust; touch up scratches with paint.
p. 22Show 1 more answers Show less
Where to find it in the PDF
- Safety Warnings p. 2
- Parts List p. 6, 7, 8, 9
- Assembly Steps p. 10, 21
Table of contents
Manual images
Click an image to enlargeQuick Guide from the Manual
This gazebo is designed for decorative and sunshade purposes. Assembly requires at least 4 adults and should be performed on level ground. Do not assemble on sandy, muddy, or loose soil as stakes will not provide sufficient anchorage. Always check local regulations for installation permits before beginning.
Safety and Preparation

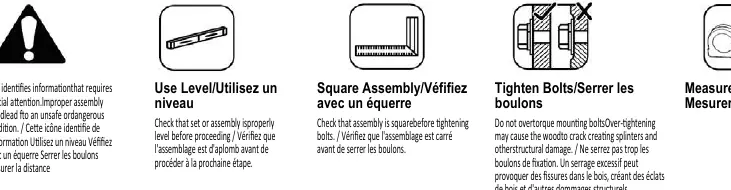

- Tools Required: Cordless drill, hammer, screwdriver, and ladder (not included).
- Safety: Wear protective gloves as some parts may have sharp edges. Keep children and pets away during assembly.
- Site Selection: Install on level ground. If securing to a wood deck or concrete, use appropriate anchors (not included).
- Maintenance: Periodically check and tighten all nuts and bolts. Remove snow from the roof when it exceeds 2 inches in thickness using a plastic snow rake.
Assembly Requirements
Before starting, clear a large area and ensure all parts are present by comparing them with the packaging contents list. Do not dispose of packing materials until assembly is complete. When assembling wooden parts, do not overtorque bolts to avoid splitting the wood.
Maintenance and Care
Steel components are treated with rust-inhibiting paint. If scratches occur, touch them up immediately with rust-inhibiting paint to prevent rusting. Surface rust can be removed with a light application of cooking oil or WD-40. Do not use bleach, acid, or abrasive cleaners on the roof or frame.
Warranty Information
Sunjoy Group provides a 1-year limited warranty for the original purchaser, covering defects in workmanship and materials, provided the item was factory-sealed and maintained with care. The warranty does not cover commercial use, acts of nature, vandalism, misuse, or improper assembly.
Practical help
Common problems
Surface rust on steel components
Touch up scratches immediately with rust-inhibiting paint. Remove existing surface rust with a light application of cooking oil or WD-40.
Wood splitting during assembly
Do not overtorque bolts when assembling wooden parts.
Gazebo instability
Ensure installation on level ground. Do not assemble on sandy, muddy, or loose soil as stakes will not hold.
Before use
- Ensure all parts are present by comparing with the packaging contents list.
- Clear a large area for assembly.
- Gather required tools: cordless drill, hammer, screwdriver, ladder.
- Ensure at least 4 adults are available for assembly.
- Check local regulations for installation permits.
Show more Show less
Images and diagrams
- The manual includes an exploded drawing on page 5 to help identify parts.

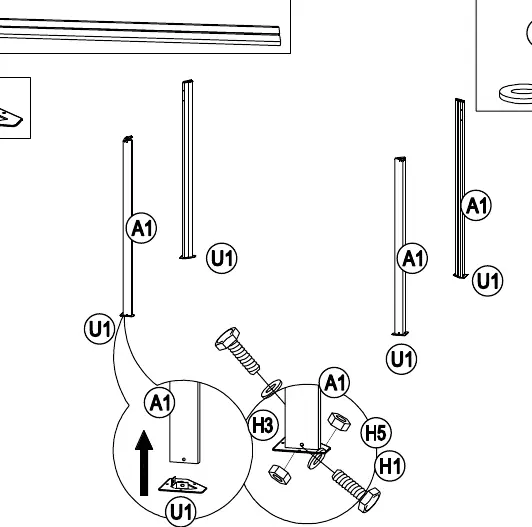

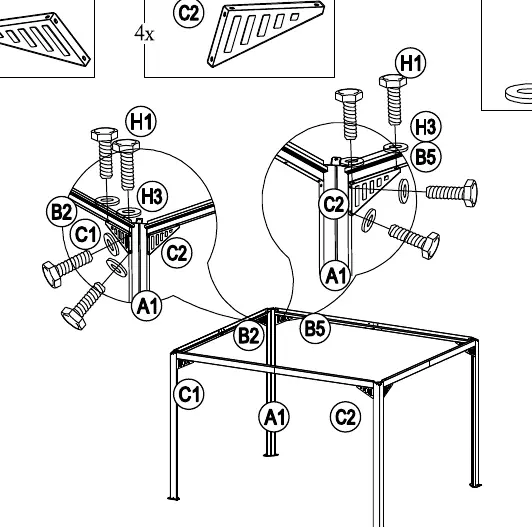

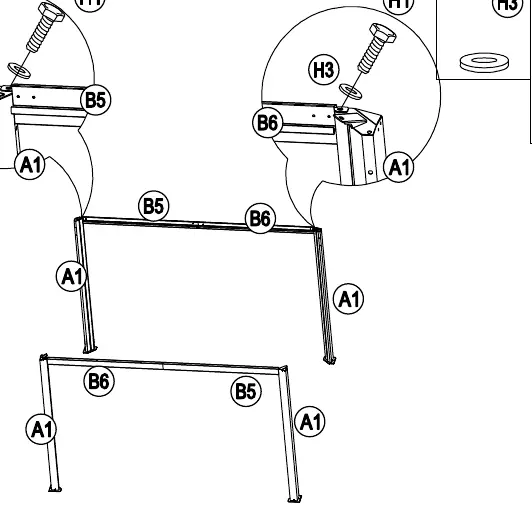

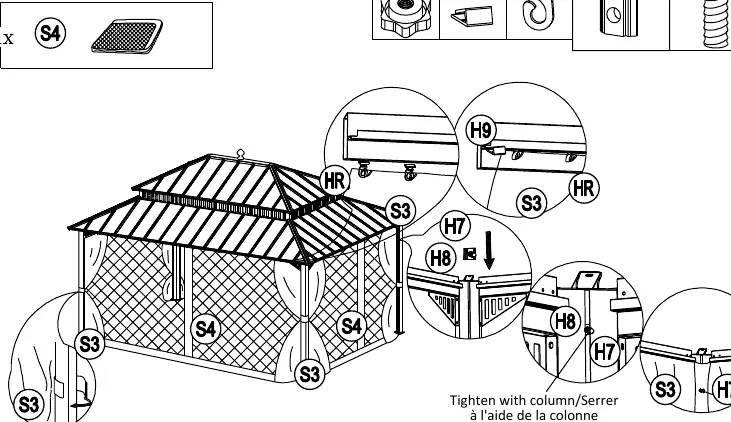

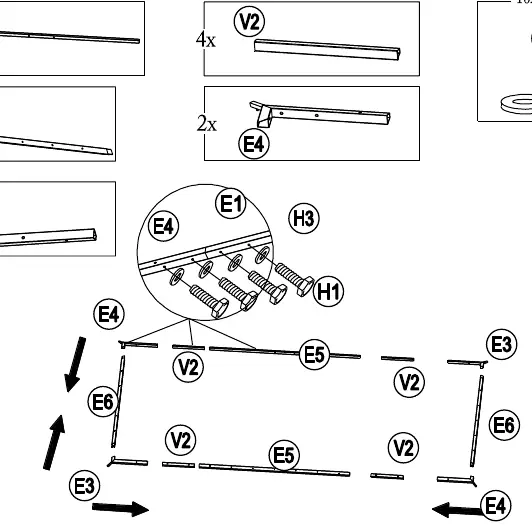

- Assembly steps 1-24 detail the construction process from the base posts to the roof panels.
Model compatibility
- Intended for decorative and sunshade purposes only.
- Not designed to withstand harsh weather, high winds, rain, or snow.
