Assembly Instructions for Sunjoy 16x12 Hardtop Gazebo A10204388000
Complete assembly guide for the Sunjoy 16x12 Hardtop Gazebo (A10204388000). Includes safety warnings, parts list, step-by-step installation instructions, and maintenance tips.
Quick answers from the manual
Quick answer
- The Sunjoy 16x12 Hardtop Gazebo (A10204388000) is a decorative outdoor structure. Assembly requires 4 adults, a level surface, and basic tools like a drill, hammer, and ladder. It is not designed for harsh weather conditions. p. 1, 2, 3
Key actions
- Assemble the frame and roof structure following the 23-step guide. p. 10, 11, 12, 13
- Secure the gazebo to the ground using the provided stakes. p. 21
Problems and fixes
Surface rust
Touch up scratches with rust-inhibiting paint or remove with cooking oil/WD-40.
p. 22Show 3 more answers Show less
Maintenance and reset
- Periodically check and tighten all bolts. p. 22
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Dimensions | 16x12 | Gazebo footprint size | p. 1, 4 |
Where to find it in the PDF
- Assembly Instructions p. 10, 11, 12, 13
- Parts List p. 6, 7, 8, 9
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
This manual provides assembly instructions for the Sunjoy 16x12 Hardtop Gazebo. Assembly requires at least 4 adults and should be performed on level ground. Do not assemble on sandy, muddy, or loose soil. Ensure all parts are present before beginning and use the recommended tools: cordless drill, hammer, screwdriver, and ladder.
Safety and Warnings
- Adult Assembly Only: At least 4 adults are recommended for safe assembly.
- Surface Requirements: Install on level ground. Do not assemble on sandy, muddy, or loose soil as stakes will not provide sufficient anchorage.
- Weather Conditions: This gazebo is for decorative and sunshade purposes only. It is not designed to withstand harsh weather, including high winds, rain, or snow.
- Snow Removal: Remove snow from the roof if it exceeds 2 inches in thickness using a plastic snow rake to avoid damage.
- Sharp Edges: Some parts may have sharp edges; wearing protective gloves is advised.
- Maintenance: Periodically check and tighten all nuts and bolts.
Assembly Preparation
Before starting, clear a large area and place all parts from the box on the floor. Compare parts with the packaging contents list. Do not dispose of packing materials until assembly is complete. If parts are missing, contact customer support at [email protected].
Assembly Steps
The assembly process is divided into 23 steps, covering the construction of the frame, roof, and final installation:

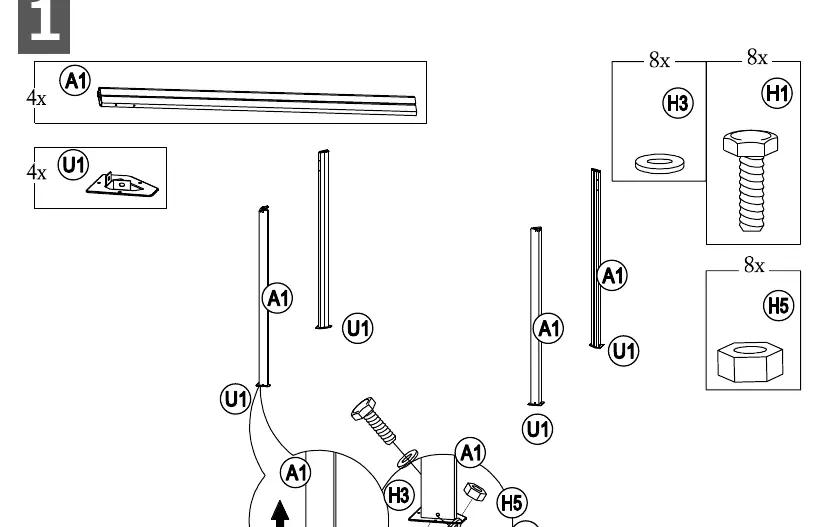

- Steps 1-4: Assembly of the main posts and cross beams.

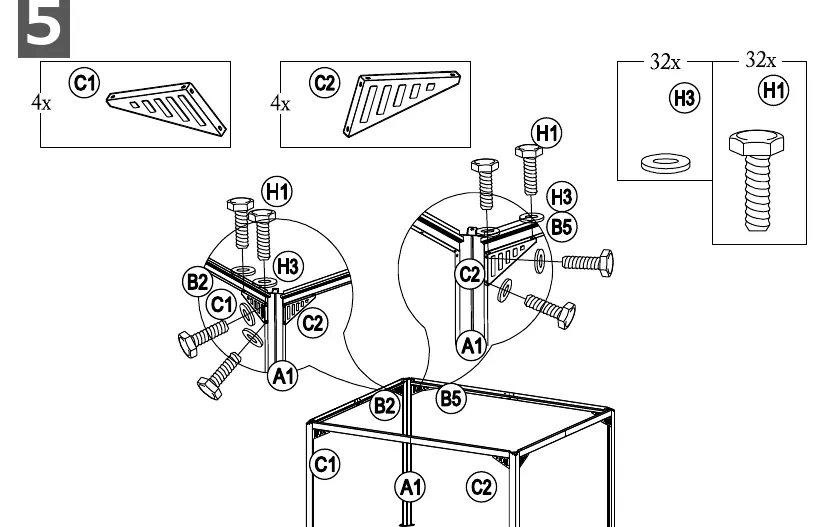

- Steps 5-6: Installation of triangle supports and roof rafters.
- Steps 7-10: Assembly of the roof frame and side screens.
- Steps 11-17: Construction of the roof structure, including middle beams and rafters.

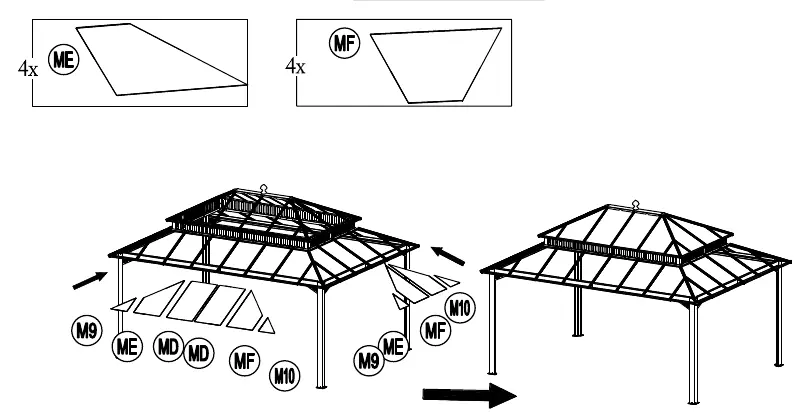

- Steps 18-21: Installation of roof panels and caps.

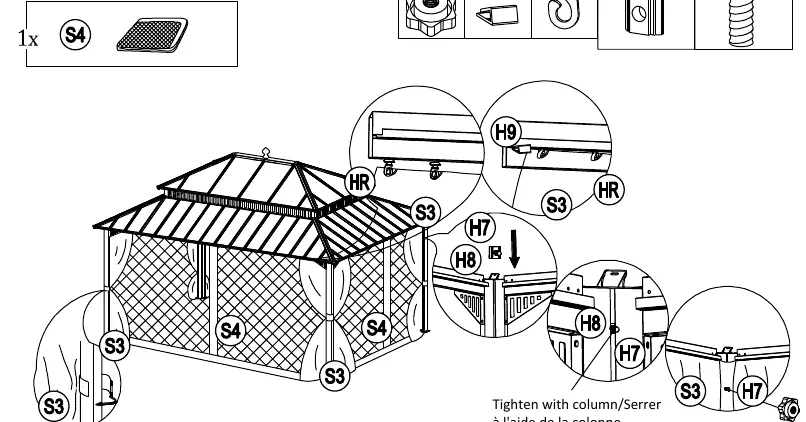

- Steps 22-23: Final installation of curtains, mosquito netting, and securing the gazebo to the ground with stakes.
Maintenance
Steel components are treated with rust-inhibiting paint, but surface oxidation may occur if the coating is scratched. Touch up any scratches immediately with rust-inhibiting paint. Surface rust can be removed with a light application of cooking oil or WD-40. Do not use bleach, acid, or abrasive cleaners on the roof or frame.
Warranty
Sunjoy Group provides a 1-year limited manufacturer's warranty for the original purchaser, covering defects in workmanship and materials, provided the item was factory-sealed and maintained with care. Exclusions apply for commercial use, acts of nature, vandalism, misuse, or improper assembly.
Practical help
Common problems
Surface rust on steel components
Touch up scratches immediately with rust-inhibiting paint. Remove existing surface rust with a light application of cooking oil or WD-40.
Missing parts
Contact customer support at [email protected].
Loose structure
Periodically check and ensure all nuts and bolts are tightened during use.
Before use
- Ensure at least 4 adults are available for assembly.
- Verify the installation site is level ground.

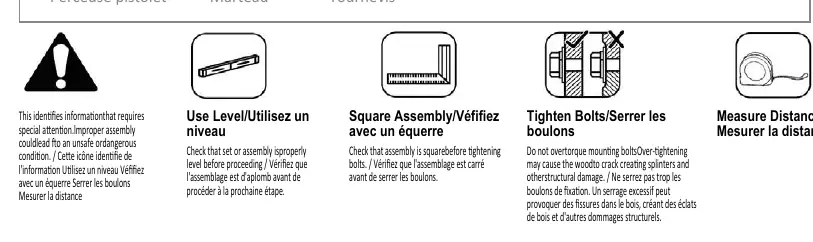

- Prepare tools: cordless drill, hammer, screwdriver, and ladder.
- Check all parts against the packaging contents list.
- Read and understand the manual before starting.
Show more Show less
Images and diagrams
- Exploded drawing shows the relationship between posts, beams, and roof panels.
- Hardware pack table identifies bolts (H1, H2), washers (H3), and screws (H4) by label and quantity.
Model compatibility
- Not designed for harsh weather, high winds, rain, or snow.
- If securing to a wood deck or concrete, use appropriate anchors (not included).
