The TUBE PILOT OVERDRIVE is a real tube-driven guitar pedal featuring a handpicked 12AX7 vacuum tube. It is designed to provide organic, touch-sensitive saturation ranging from subtle blues tones to aggressive rock distortion. The pedal features a rugged metal chassis and true bypass circuitry to maintain signal integrity when the effect is disengaged.
Operation and Controls
The pedal is controlled by two primary knobs:
- TUBE DRIVE: Adjusts the intensity of the tube saturation. Turning this knob controls how hard the 12AX7 tube is driven, allowing for a wide range of dynamics from clean to heavy distortion.
- OUT LEVEL: Controls the overall output volume of the pedal.
Connections
The pedal features standard 1/4 inch input and output jacks. Power is supplied via a 9V DC 400 mA power adapter (TC Electronic Powerplug 9, not included). Ensure you use the correct power supply to avoid damage to the unit.
Performance and Dynamics
The TUBE PILOT OVERDRIVE is highly sensitive to picking dynamics. Playing softly produces a warmer, cleaner tone, while aggressive picking triggers the natural saturation of the internal tube, providing an organic bite and sustain similar to a vintage tube amplifier.
Maintenance and Support
The pedal is housed in a high-quality metal enclosure for durability. For service, support, or warranty information, contact the nearest TC Electronic location:
- Europe: MUSIC Tribe Brands UK Ltd., Tel: +44156 273 2290, Email: [email protected]
- USA/Canada: MUSIC Tribe Commercial NV Inc., Tel: +1 702 800 8290, Email: [email protected]
- Japan: MUSIC Tribe Services JP K.K., Tel: +81 3 6231 0453, Email: [email protected]
Manufacturer information
TC Electronic
Practical help
Common problems
No sound or signal loss
Check that the 9V DC power supply is connected and functioning. Ensure the pedal is engaged (True Bypass is off) and that cables are securely connected to the input and output jacks.
Excessive noise or hum
Ensure you are using a high-quality, regulated 9V DC power supply. Avoid using daisy-chain power supplies if they introduce ground loop noise.
Before use
- Verify the power supply is 9V DC 400 mA.
- Ensure the guitar is connected to the INPUT jack.
- Ensure the amplifier is connected to the OUTPUT jack.
- Start with TUBE DRIVE and OUT LEVEL knobs at a moderate position.
Specs in practice
- 9V DC 400 mA
- Required power input specifications for the pedal to operate correctly.
Images and diagrams

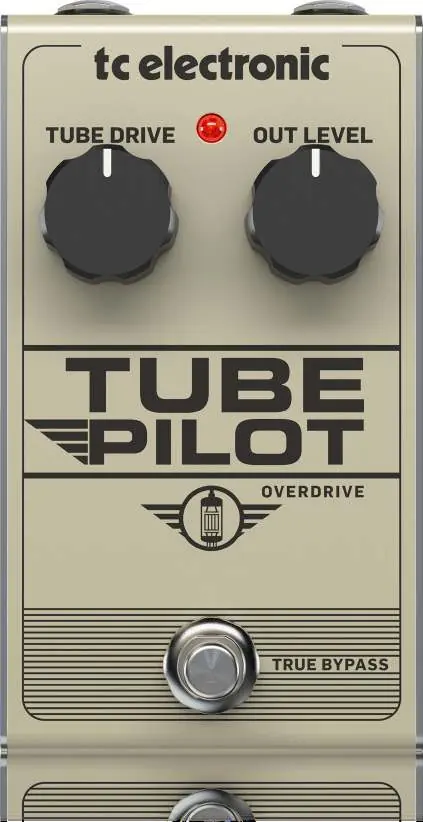

- The top panel features the TUBE DRIVE and OUT LEVEL knobs.
- The footswitch toggles the effect on and off.
- The rear panel contains the INPUT, OUTPUT, and 9V DC power input.
Model compatibility
- Requires a 9V DC 400 mA power supply (not included).
- Compatible with standard electric guitar signal chains.
