Assembly Instructions for Tchibo Modular Metal Sideboard Cabinet
Comprehensive assembly and safety guide for the Tchibo modular metal sideboard cabinet. Includes step-by-step installation instructions, wall mounting requirements, load limits, and maintenance tips.
Table of contents
Manual images
Click an image to enlargeImportant Information
This sideboard requires assembly by 2 people. For safety and stability, the unit must be fastened to a suitable wall. Do not allow the product to stand freely. The maximum load capacity is 40 kg for the top and middle sections, and 5 kg for the drop-down door.
Safety Warnings
- Choking Hazard: Keep small parts and packaging materials away from children.
- Tipping Hazard: Do not open and load more than one folding door at a time. Do not climb or sit on the product.
- Injury Prevention: Wear work gloves during assembly to avoid injury from sharp metal edges.
- Wall Mounting: Ensure no pipes or electrical wiring are located behind the wall at the drilling site.
Intended Use
This product is designed for indoor use in private households. It is not suitable for commercial or professional use. Protect the unit from moisture.
Assembly Preparation
Assemble the product on a soft, even surface (use the transport cardboard) to prevent scratches. If using an electric screwdriver, use the lowest possible torque setting to avoid damage.
Assembly Steps
- Frame Assembly: Assemble the metal frame components as shown in the diagrams, ensuring all holes are properly aligned.
- Door Installation: Attach the drop-down door mechanisms to the frame. Ensure hinges are handled with care to avoid pinching fingers.
- Final Assembly: Secure all panels and components using the provided screws and fasteners.
Wall Mounting
The unit must be secured to the wall to prevent tipping. Use the provided mounting materials (screws and wall plugs) if they are suitable for your wall type. If not, consult a professional to obtain the correct mounting hardware for your specific wall structure.
Care and Maintenance
Clean surfaces using a slightly damp cloth and wipe dry. Do not use abrasive or caustic cleaning agents, or hard brushes, as these may damage the finish.
Disposal
Dispose of all packaging materials according to local recycling regulations. Ensure all assembly materials are accounted for before discarding packaging.
Manufacturer information
Tchibo GmbH
Practical help
Common problems
Unit is unstable or tips over
Ensure the unit is securely fastened to the wall using the provided mounting hardware. Do not open all doors simultaneously.
Risk of pinching fingers
Be careful when pulling out the hinges and assembling metal parts. Wear work gloves.
Missing or damaged parts
Contact Tchibo customer service using the contact information provided on the last page of the manual.
Before use
- Ensure 2 people are available for assembly.
- Prepare a soft, even surface for assembly.
- Wear work gloves to protect against sharp edges.
- Check the wall for hidden pipes or electrical wiring before drilling.
- Verify that the wall type is suitable for the provided mounting hardware.
Specs in practice

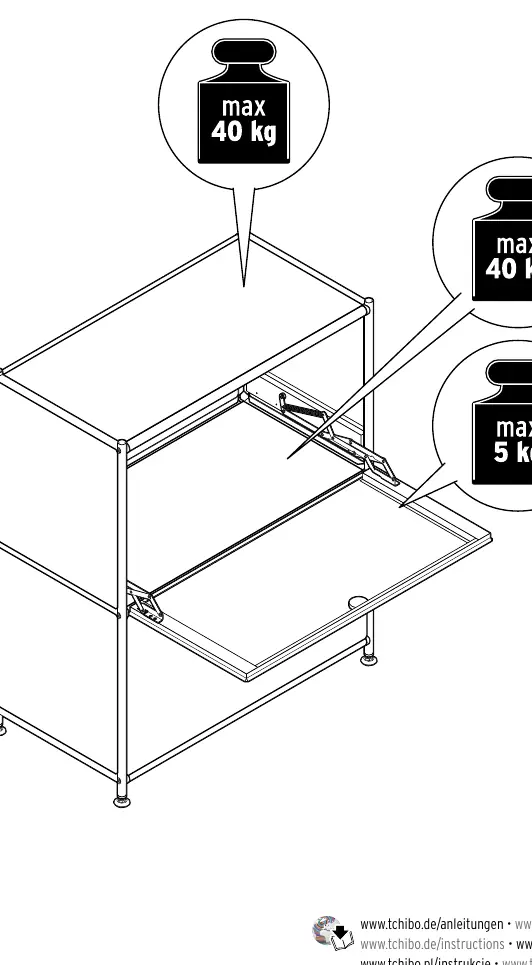

- Max Load (Top/Middle)
- 40 kg maximum weight capacity for the top and middle shelves.
- Max Load (Door)
- 5 kg maximum weight capacity for the drop-down door.
Images and diagrams

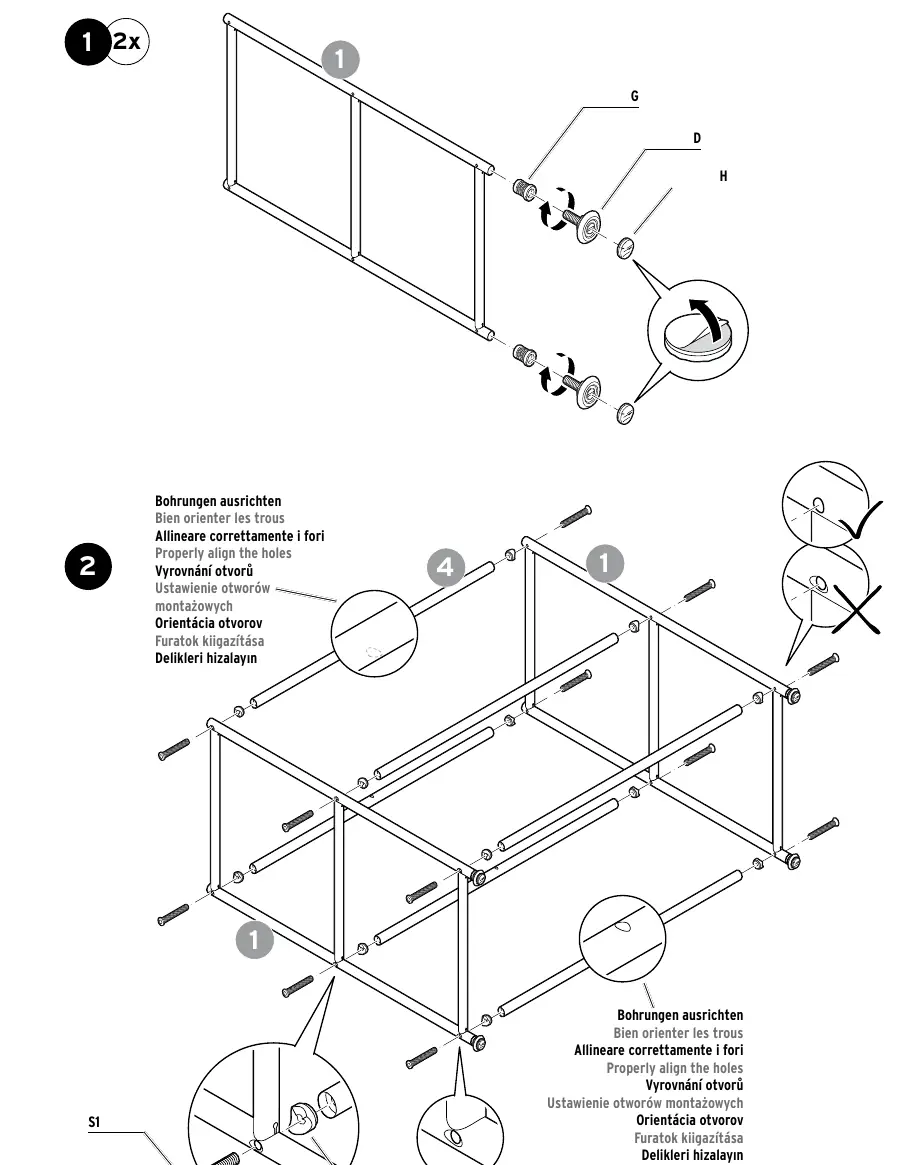

- Steps 1-2: Frame assembly and hole alignment.

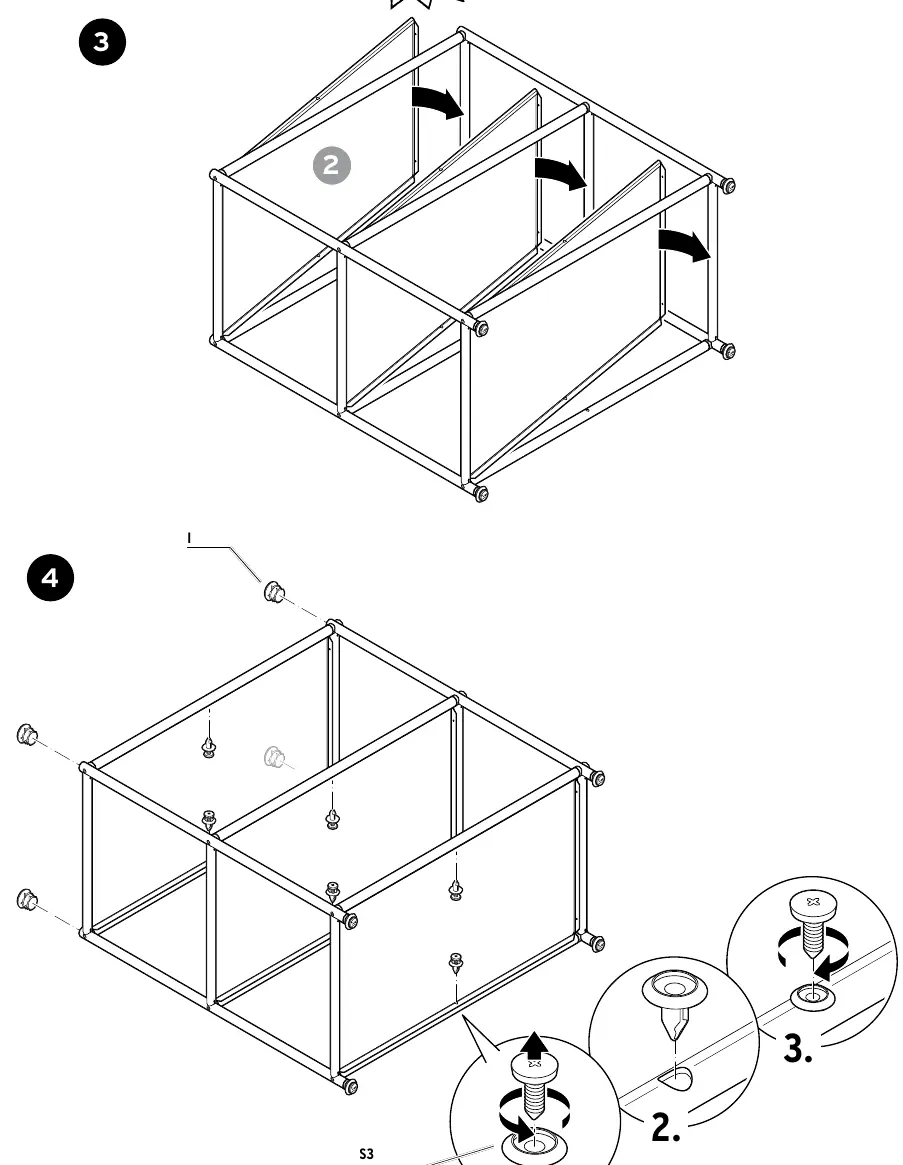

- Steps 3-4: Door hinge and mechanism installation.

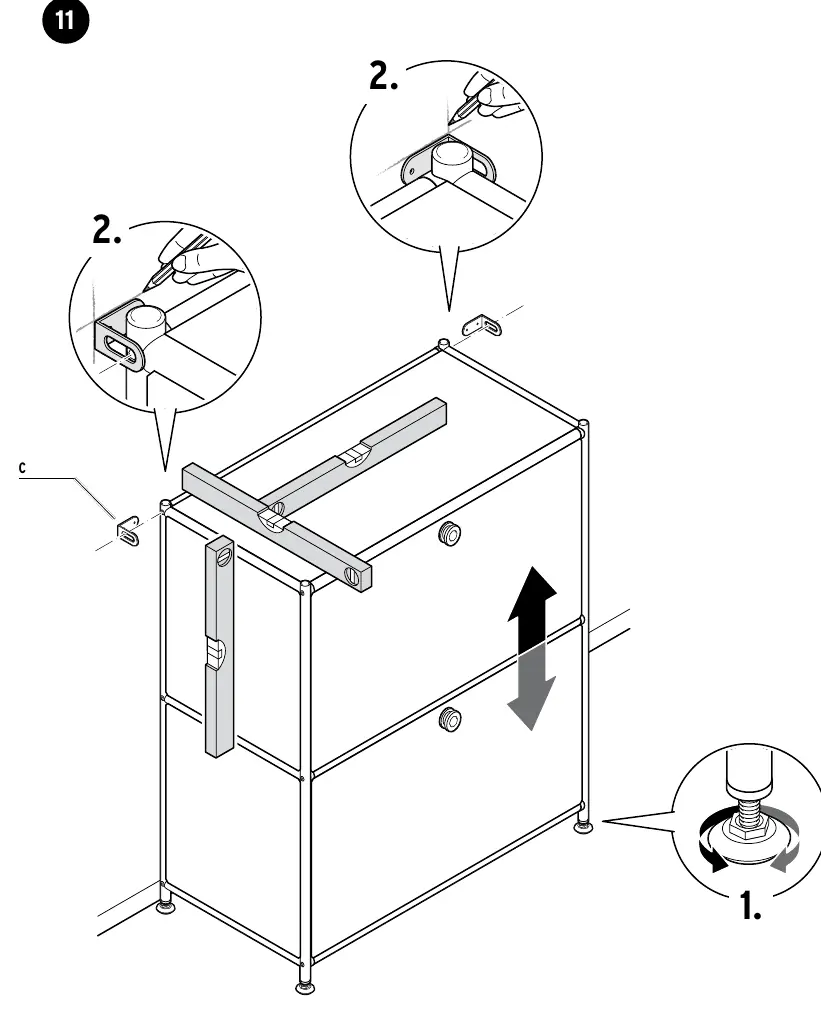

- Steps 11-12: Wall mounting procedure using brackets and wall plugs.
Model compatibility
- Included mounting materials are suitable for standard, solid walls only. Check your wall type before installation.
