User Manual for Tchibo 146220ASHG Bed Side Table
Quick guide for the Tchibo 146220ASHG bed side table. Includes assembly instructions, parts list, safety warnings, and maintenance tips.
Table of contents
Manual images
Click an image to enlargeQuick Guide
The Tchibo 146220ASHG is a bed side table from the MARVIN collection. The unit has a maximum load capacity of 15 kg. Assembly requires basic tools such as a hammer and a screwdriver. Please ensure the furniture is assembled by a qualified person to prevent tipping or injury.
Parts List
Before beginning assembly, verify that all components are present. The parts include various screws (F18, F07, F02, F03), dowels (O02), cam locks (E01, E02), drawer runners (B63), and wooden panels (A, B, C, D, E, F, G, H, I, K, L). Refer to page 2 of the manual for a complete visual inventory of hardware and page 3 for the component layout.
Assembly Instructions
Follow these steps to assemble your bed side table:

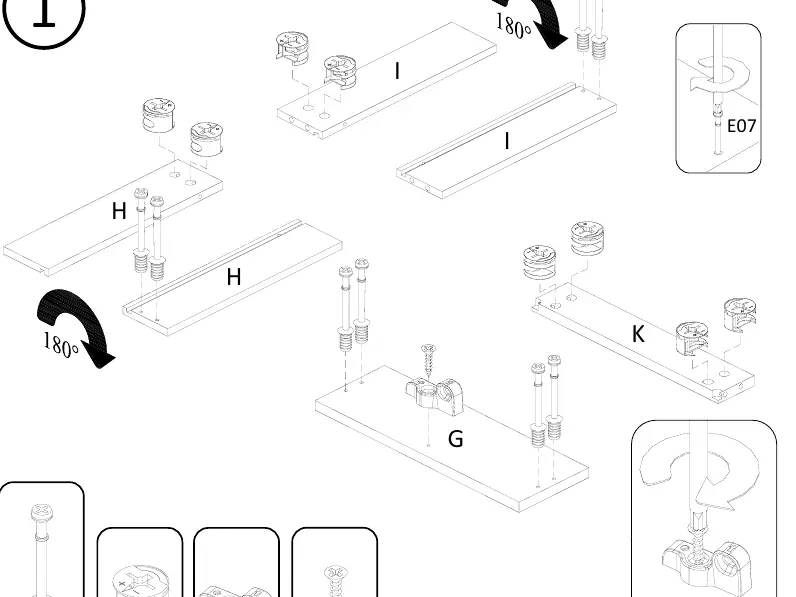

- Step 1: Prepare panels H, I, K, and G by inserting cam locks and screws.
- Step 2: Connect panels I, L, K, and H to form the drawer structure.
- Step 3: Attach panel G to the drawer structure using screws F07 and F02.
- Step 4: Prepare panel A by attaching the drawer runner (B63) and inserting dowels and cam locks.
- Step 5: Prepare panel B by attaching the drawer runner (B63) and inserting dowels and cam locks.
- Step 6: Assemble the main frame by connecting panels C, D, and E.
- Step 7: Secure the frame components together.
- Step 8-9: Finalize the frame assembly.
- Step 10-11: Attach the back panel F using screws F18.
- Step 12: Install the feet (D09) to the bottom of the unit.
- Step 13: Ensure the unit is level and stable.
- Step 14: Apply cover caps (L25, L26) to hide screw heads.
- Step 15: Insert the assembled drawer (G) into the unit and connect any electrical components (W82) if applicable.
Safety and Maintenance
The furniture is designed for indoor use. It is resistant to water, oil, alcohol, and tea for limited durations. Always ensure the furniture is placed on a level surface. If you are unsure about wall mounting or stability, consult a professional. Do not exceed the maximum load of 15 kg.
