User Manual for Tchibo Waffle Maker

Quick guide from the manual

This waffle maker is designed for private household use to bake waffles. It features non-stick coated baking plates and does not have a temperature regulator; it begins heating immediately upon being plugged in. The appliance is suitable for children aged 8 and over under supervision.

Safety warnings

• Electrical safety: Do not touch the appliance with damp hands. Keep the appliance and cable away from water. Unplug during thunderstorms, malfunctions, or before cleaning.
• Burn hazards: The appliance becomes hot during use. Use oven gloves to open/close it. Steam escapes during baking; do not touch the baking plates.
• Usage limits: Do not use outdoors, with a timer, or with a remote control. Do not place near flammable objects or in corners.
• Children: Keep the appliance and cable out of reach of children under 8 years old.

Product overview

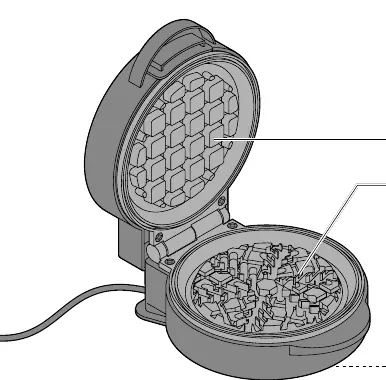

The appliance consists of an upper and lower baking plate, a handle, an indicator light, and a mains cable with a cable tidy located on the base.

Prior to first use

1. Remove all packaging material.
2. Place the appliance on a level, heat-resistant surface.
3. Wipe the baking plates with a damp cloth.
4. Unwind the mains cable and plug it into an earthed socket.
5. Heat the appliance for approximately 10 minutes (ensure good ventilation as there may be a slight odor).
6. After cooling, wipe the plates thoroughly with a kitchen cloth.

Using the waffle maker

1. Open the baking plates and grease them with a little margarine or oil if necessary.
2. Plug in the appliance; the indicator light will turn on to show it is heating.
3. When the light goes out, the baking temperature is reached.
4. Place batter in the center of the lower baking plate using a ladle. Do not overfill.
5. Close the appliance. The indicator light may cycle on and off during baking; this is normal.
6. Bake for approximately 2 to 4 minutes. Check progress by carefully opening the lid.
7. Remove waffles using wooden or plastic utensils to protect the non-stick coating.

Tips for perfect waffles

• If waffles are too light or dark, adjust the baking time.
• If the batter is too runny, it may not reach the upper plate.
• If waffles stick, grease the plates more thoroughly next time.
• The underside of the waffle browns faster than the top.

Cleaning and maintenance

1. Disconnect the plug and allow the appliance to cool completely.
2. Remove residue from baking plates using a soft cloth.
3. Wipe the plates and outer casing with a slightly moistened cloth.
4. Dry thoroughly.
5. Use the cable tidy on the base to store the mains cable.

Troubleshooting

• Not working: Check if the appliance is plugged in.
• Waffles too light: Bake for a longer time or check batter consistency.
• Waffles too dark: Bake for a shorter time.
• Waffles stick: Grease the baking plates more thoroughly.
• Excess steam: Batter may be too runny or you used too much batter.

Technical specifications

• Model: 692 294 / 700 447
• Power: 550 W
• Voltage: 220-240 V ~ 50/60 Hz
• Protection class: I
• Ambient temperature: +10 to +40 °C
