Tchibo 120243CEXX1II Storage Cabinet Assembly Instructions

Quick guide from the manual

This storage cabinet requires assembly by two people. Ensure you have a soft, even surface to work on to prevent scratching the surfaces. The unit must be fastened to a wall for stability. Do not open or load all folding doors simultaneously to prevent tipping.

Safety Warnings

• Danger to children: Keep packaging materials (bags, films) away from children to avoid suffocation. Keep small parts out of reach during assembly as they pose a choking hazard.
• Wall mounting: The cabinet must be fastened to a wall for optimum stability. Ensure there are no pipes or electrical wiring behind the wall at the drilling location.
• Handling: Wear work gloves during assembly to avoid injury from sharp metal edges. Never stand or sit on the product.

Intended Use and Care

The product is designed for indoor, private household use only and is not suitable for commercial purposes. Protect the unit from moisture. For cleaning, do not use abrasive or caustic agents or hard brushes. Clean surfaces with a slightly damp cloth and wipe dry.

Assembly Instructions

Before starting, check all parts against the parts list. Use the provided mounting materials (screws and wall plugs) which are suitable for standard, solid walls. If using an electric screwdriver, use the lowest possible torque setting to avoid damage.

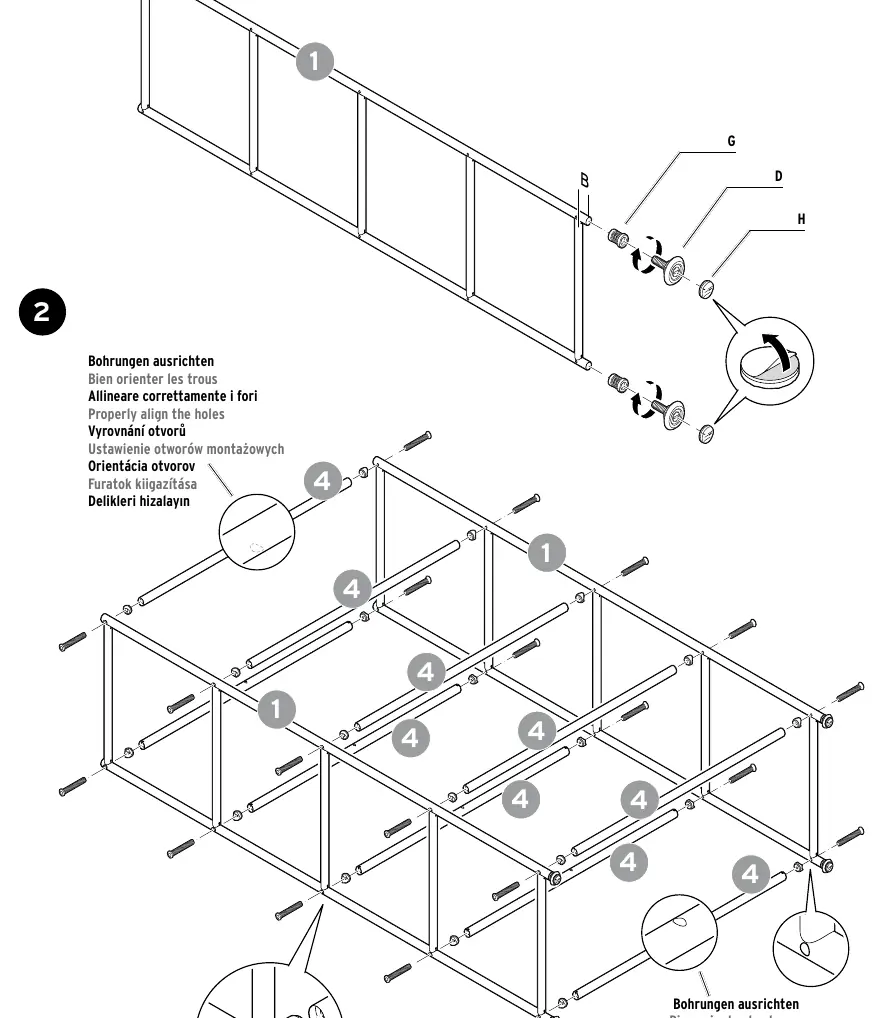

1. Frame Assembly: Align the frame components and secure them using the provided screws and connectors.

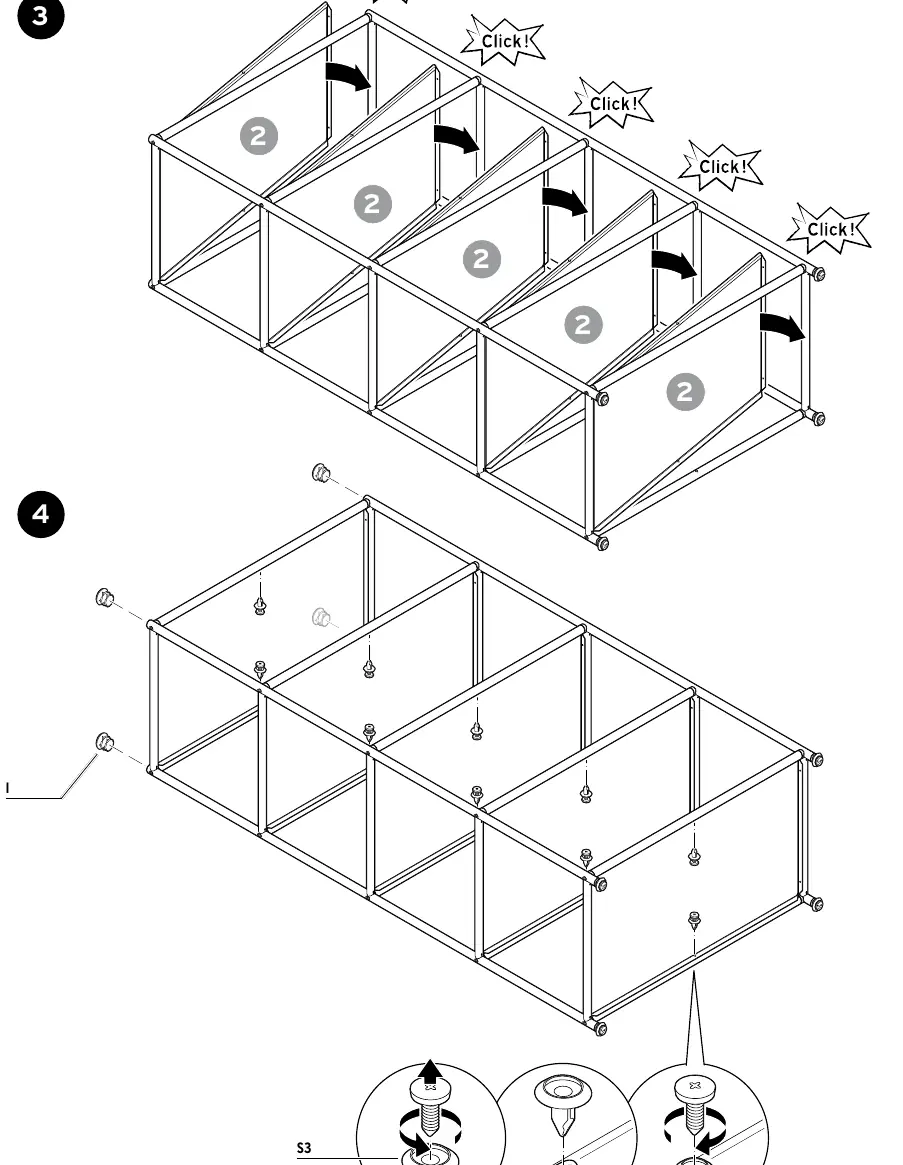

2. Panel Insertion: Insert the panels into the frame until they click into place.

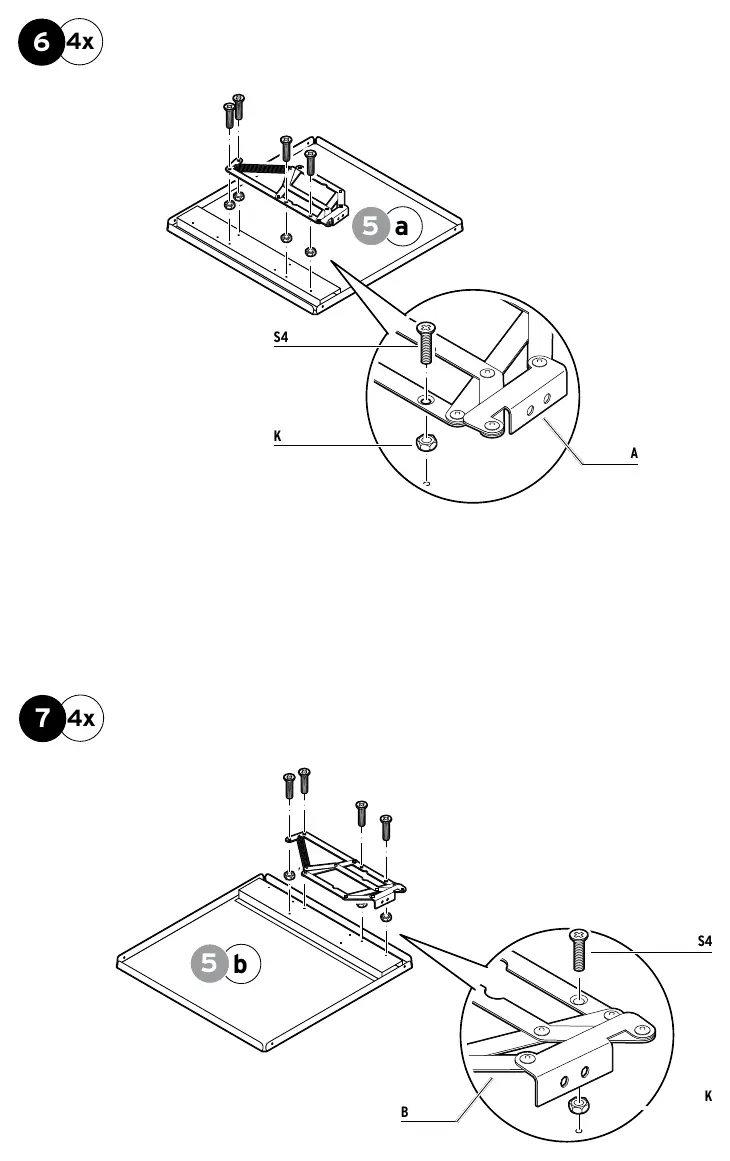

3. Hinge Installation: Attach the hinges to the doors and secure them to the frame.

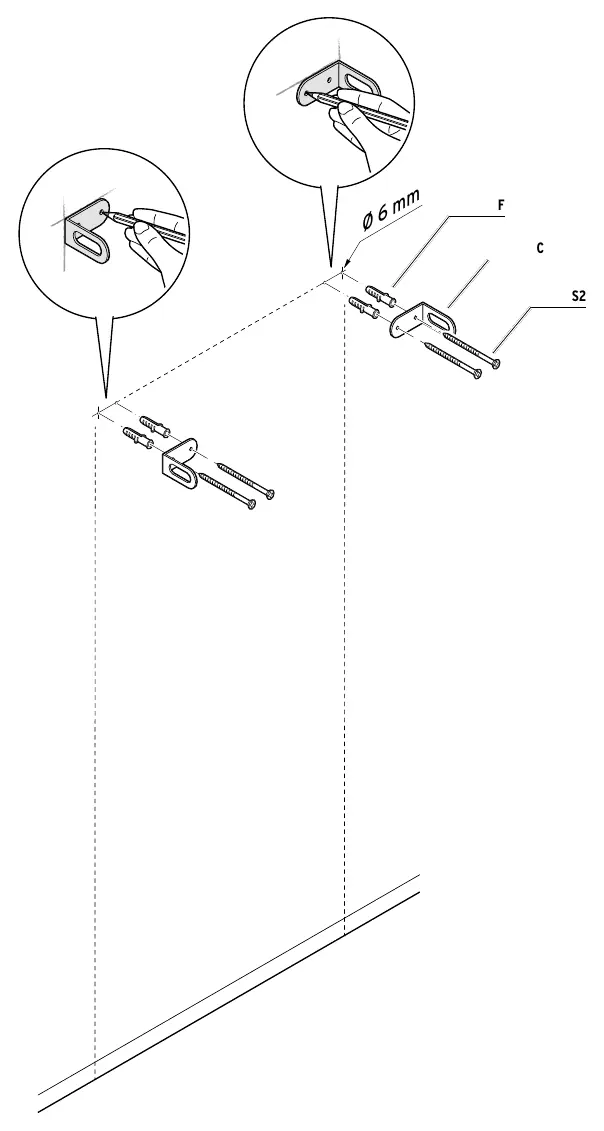

4. Wall Mounting: Use the provided brackets to secure the cabinet to the wall. Ensure the unit is level before final tightening.

Service and Support

If a part is missing or defective, refer to the service information on the last page of the manual. Keep the product number and order number ready when contacting customer service.
