User Manual for ELIAN Extendable Table 16340044/01
Quick guide for the ELIAN extendable table (model 16340044/01). Includes assembly instructions, parts list, and how to operate the extension mechanism safely.
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
This manual provides assembly and operation instructions for the ELIAN extendable table. Key points include a maximum load capacity of 60kg and the correct procedure for extending the table surface. Always ensure the table is on a level surface and do not stand on it.
Assembly instructions
The table requires assembly of the legs to the frame. Use the provided screws (M8*16mm and M6*16mm) and washers (M8) to attach the legs to the table frame. Ensure all screws are tightened securely using the included Allen key. A bracket is also provided to secure the frame components.
Operating the table

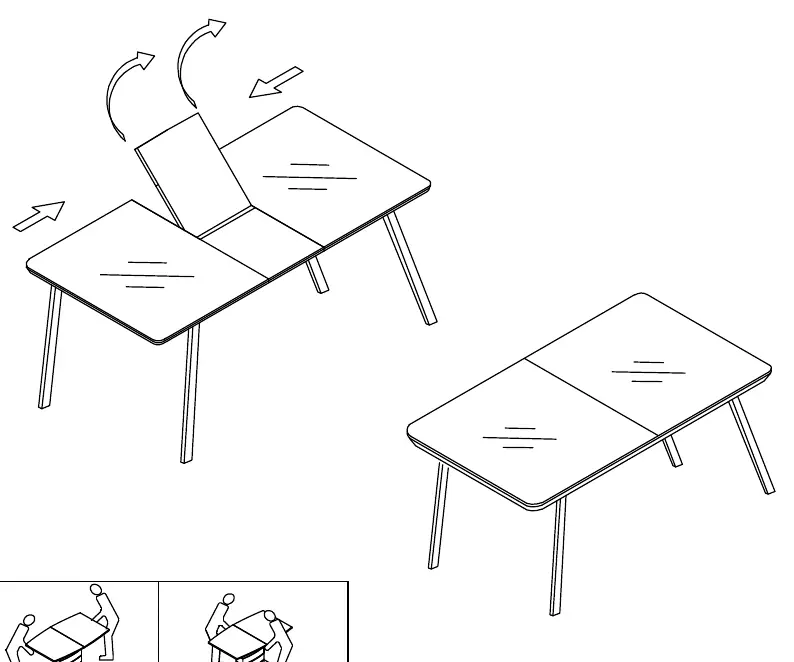

To extend the table, locate the locking mechanisms underneath the table surface. Move the latches to the 'open' position. Slide the table sections apart, unfold the extension leaf, and then lock the mechanism back into the 'lock' position to secure the table in its extended state. It is recommended to have two people when extending the table to ensure stability.
Safety and maintenance
The maximum load capacity for this table is 60kg. Do not exceed this weight. Do not stand on the table. Regularly check that all screws remain tight, especially after initial assembly and periodic use.
Manufacturer information
The Home Depot
Practical help
Common problems
Table feels unstable
Ensure all leg screws are fully tightened using the provided Allen key.
Extension mechanism is stuck
Verify that all locking latches are fully in the 'open' position before attempting to slide the table sections.
Before use
- Verify all parts are present: 4 legs, screws (M8*16mm, M6*16mm), washers, and Allen key.
- Ensure you have a clear, flat space for assembly.
- Check that the floor is level before placing the table.
- Ensure the locking mechanisms are in the 'lock' position before use.
Images and diagrams
- The parts list shows the required screws and washers for leg attachment.

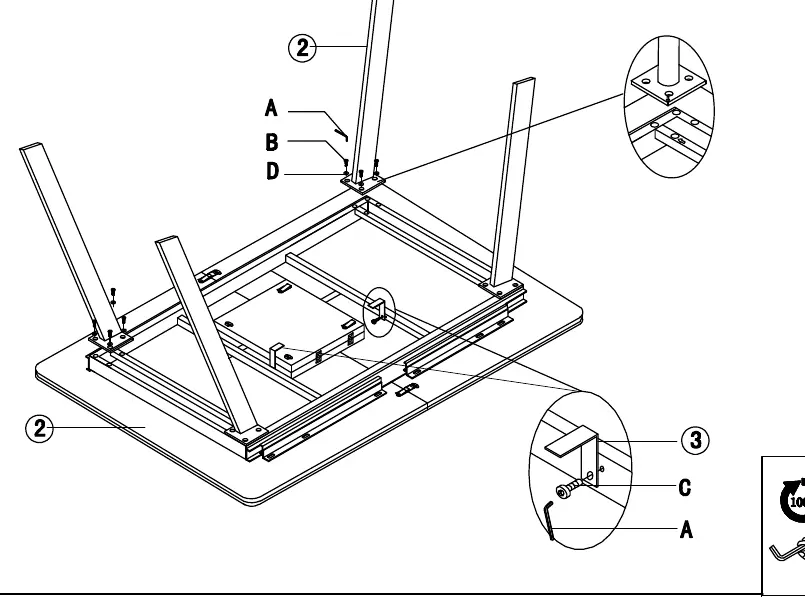

- The assembly diagram illustrates the correct orientation of the legs and the placement of the support bracket.

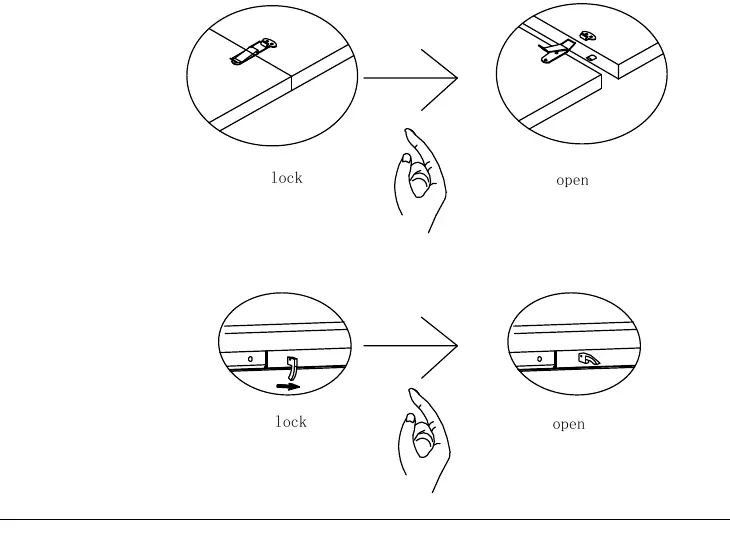

- The operation diagram shows the locking/unlocking sequence for the extension leaf.
