User Manual for Tolsen 87472 and 87474 20V Lithium-Ion Battery Pack
Quick guide for Tolsen 87472 and 87474 20V Lithium-Ion battery packs. Includes safety instructions, charging tips, LED indicator usage, and maintenance guidelines.
Quick answers from the manual
Quick answer
- The Tolsen 87472 and 87474 are 20V Lithium-Ion battery packs for the Tolsen MP20V system. They feature an LED indicator to check remaining charge and should be charged fully before first use. p. 3, 11
Key actions
- Charge fully before first use. p. 3, 6, 11
- Press the check button to view remaining capacity. p. 3, 7, 11
First start
- Charge the battery completely before the first use. Performance improves after 2-3 cycles. p. 3, 6, 11
Problems and fixes
Charger does not charge the battery
Use a different battery to verify if the charger is functioning. If the charger is faulty, replace it. If the battery is indicated as faulty, purchase a replacement.
p. 2, 5, 10Maintenance and reset
- No specific reset procedure; maintain by storing in a high charge state when not in use for long periods. p. 2, 5, 10
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Voltage | 20VDC | Operating voltage | p. 3, 6, 11 |
| Capacity | 2.0Ah / 4.0Ah | Battery energy storage | p. 3, 6, 11 |
Where to find it in the PDF
- Safety Instructions p. 2, 5, 10
- Specifications p. 3, 6, 11
- Functions p. 3, 7, 11
Table of contents
Manual images
Click an image to enlargeQuick Guide

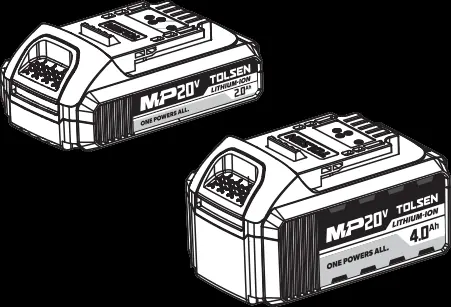

The Tolsen 87472 and 87474 are 20V Lithium-Ion battery packs designed for use with the Tolsen MP20V power platform. For optimal performance, charge the battery fully before the first use. A new battery will reach its best performance after 2-3 complete charge and discharge cycles.
Safety Information
Warning: Failure to follow these instructions may cause overheating, fire, or explosion.
- Keep the battery out of reach of children.
- Charge the battery at ambient temperatures between 5°C and 40°C (ideally around 20°C).
- After charging, allow the battery to cool for 15 minutes before use.
- Do not leave batteries on charge for extended periods and never store the charger with a battery connected.
- Ensure the charger is disconnected from the mains after use.
- When not in use, store batteries at room temperature. Do not store in locations where temperatures may exceed 40°C.
- Keep battery contacts clean and free of foreign objects (e.g., paperclips, coins, keys, nails, screws) to prevent short circuits.
- Do not store lithium-ion batteries in a discharged state for long periods. For long-term storage, keep them in a high charge state and disconnected from the tool.
- Do not open, disassemble, crush, heat, or incinerate the battery.
Functions
The battery features an LED indicator system to monitor remaining capacity:
- Check Button: Press the button on the battery to activate the LED lights.
- LED Indicators: The lights will illuminate for a few seconds to show the approximate charge level.
Note: The indication may differ slightly from the actual capacity depending on usage conditions and ambient temperature.
Maintenance
Battery capacity naturally decreases over time. After 100 charge cycles, runtime and maximum torque performance will begin to decrease. This decline continues until the battery reaches minimum capacity after 350 cycles. This is normal and not a defect. If the charger fails to charge the battery, try a different battery to verify if the charger is functioning correctly.
Specifications
- Model 87472: 20VDC, 2.0Ah
- Model 87474: 20VDC, 4.0Ah
- Compatible Chargers: Tolsen 87480, 87481, 87482, 87484, 87485, 87486 (MP20V symbol)
Practical help
Common problems
Battery not charging
Verify the charger is compatible (Tolsen MP20V). Use a different battery to test if the charger is working; if the charger fails with multiple batteries, it may be defective.
Reduced runtime or power
This is normal after 100+ charge cycles. Performance will gradually decrease until 350 cycles.
Before use
- Charge the battery fully before the first use.
- Ensure the ambient temperature is between 5°C and 40°C.
- Check that battery contacts are clean and free of metal objects.
- Verify the charger is a Tolsen MP20V compatible model.
Images and diagrams
- The LED indicator lights show the remaining capacity when the check button is pressed.
- Three lights indicate 75%-100% charge.
- Two lights indicate 35%-75% charge.
- One light indicates 5%-35% charge.
Model compatibility
- Compatible only with Tolsen MP20V lithium-ion power platform tools.
- Must be used with designated Tolsen chargers (87480-87486).
