Parts Catalog for Toro 21in Super Recycler Lawn Mower 21563

Quick guide to using this parts catalog

This document is the official parts catalog for the Toro 21in Super Recycler lawn mower, model 21563. It is designed to help you identify and order the correct replacement parts for your equipment.

How to identify parts

Each assembly is illustrated with an exploded view diagram. Parts are identified by reference numbers. To find the correct part number:

• Locate the assembly diagram corresponding to the part you need.
• Find the reference number for the specific part in the diagram.
• Look up the reference number in the accompanying parts list table to find the part number, quantity, and description.

Note on reference formats:

• Service Assembly Reference Numbers (a:b): The 'a' represents the assembly, and 'b' represents the specific part within that assembly.
• Quantity Indicators (n X y): The 'n' represents the quantity, and 'y' is the reference number (e.g., 2X 37 means two of part 37).

Major assemblies covered

• Housing Assembly: Includes the deck, discharge ramp, and covers.
• Rear Bag Assembly: Includes the bag frame and grass bag.
• Engine and Blade Assembly: Includes the engine, blade, belt, and related hardware.

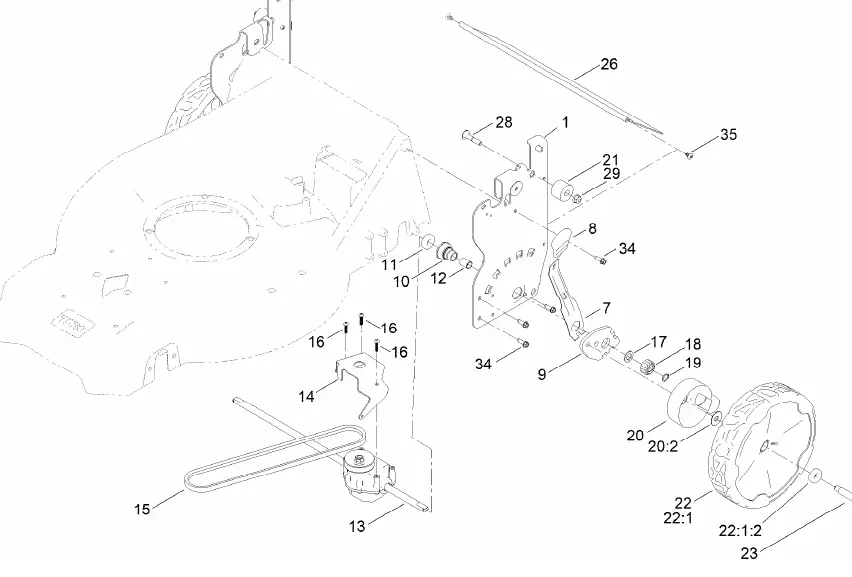

• Wheel and Height-of-Cut Assemblies: Separate sections for front and rear wheels, including height adjustment mechanisms and transmissions.

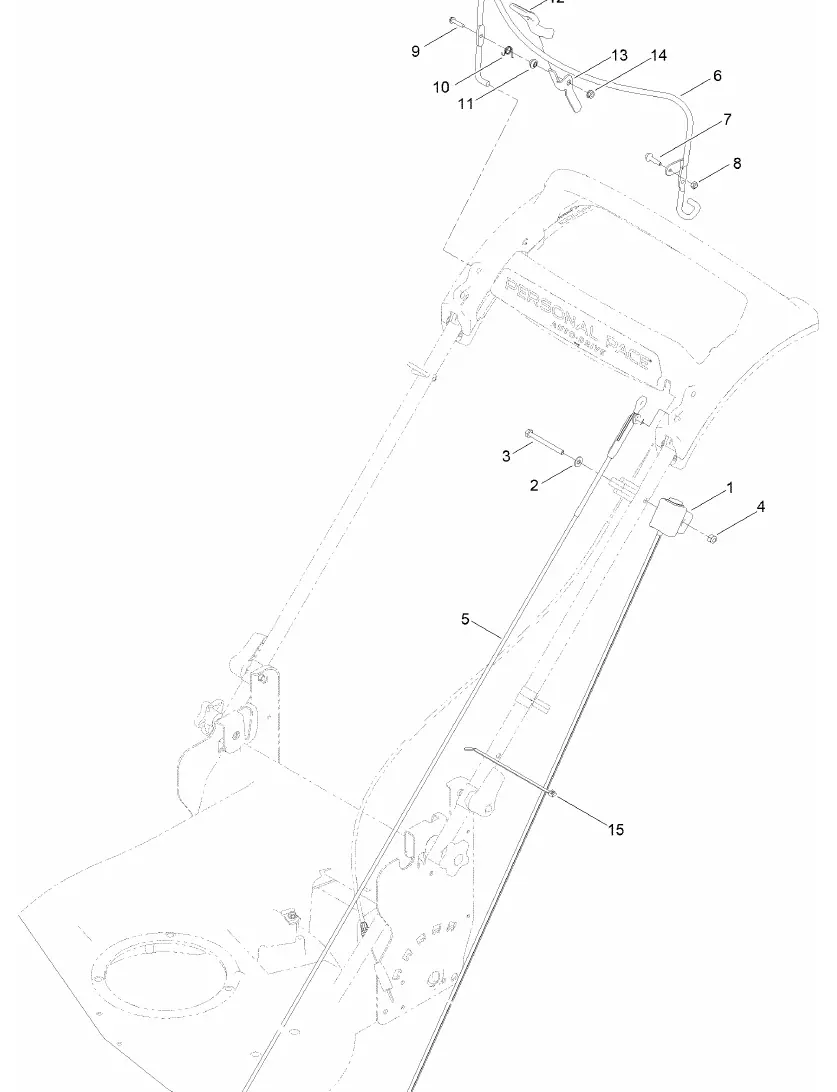

• Handle and Control Assemblies: Includes the handle bars, traction cables, and control levers.

Ordering replacement parts

When ordering parts, please provide the part number, the quantity required, and the description of each part. You can contact Toro at www.Toro.com for further assistance.
