This guide provides essential setup and operation instructions for the Toro 22-inch Recycler Lawn Mower with SmartStow (Model 21445). Always register your product via the QR code or at www.Toro.com. Before operating, ensure you have read the full Operator's Manual.
Assembly

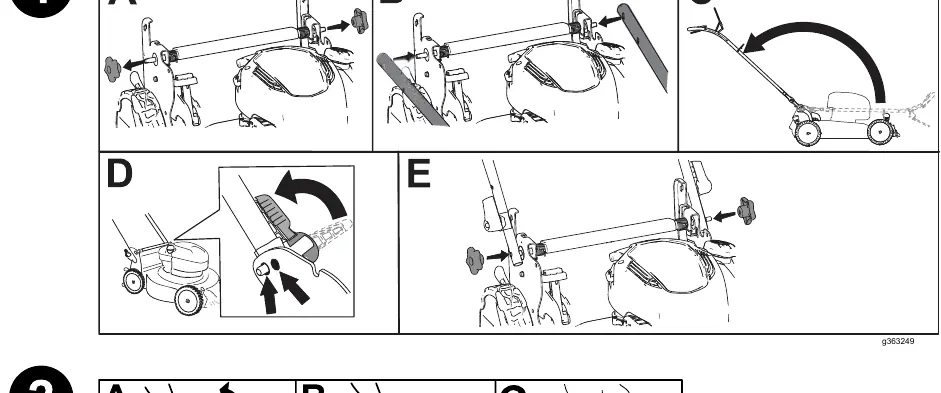

Handle Setup:
- Unfold the handle and secure it using the provided knobs.
- Ensure all cables are routed correctly and not pinched.
- Tighten knobs firmly to lock the handle in the operating position.
Oil and Fuel

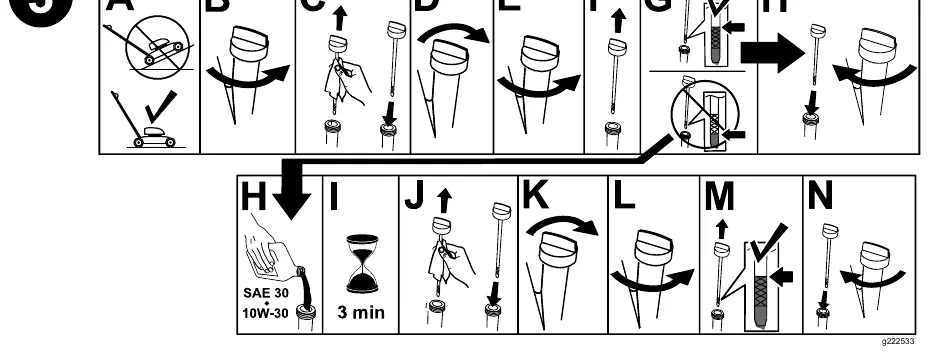

Oil Check:
- Place the mower on a level surface.
- Remove the dipstick, wipe it clean, reinsert it, and remove it again to check the level.
- Use SAE 30 or 10W-30 oil.
Fueling:
- Use fresh, unleaded gasoline with an octane rating of 87 or higher.
- Fuel must contain 10% or less ethanol (E10).
- Do not overfill the tank.
Operation
Starting and Mowing:
- Ensure the spark plug wire is connected.
- Clear the lawn of debris before mowing.
- Always wear hearing protection.
- Do not operate the machine up and down slopes; operate side-to-side on slopes.
- Keep all guards and shields in place.

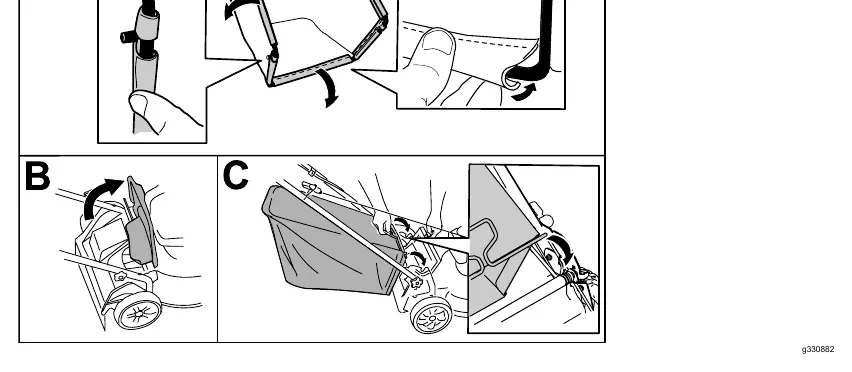

- If using the grass bag, ensure it is properly attached to the rear discharge.
Cutting Height Adjustment

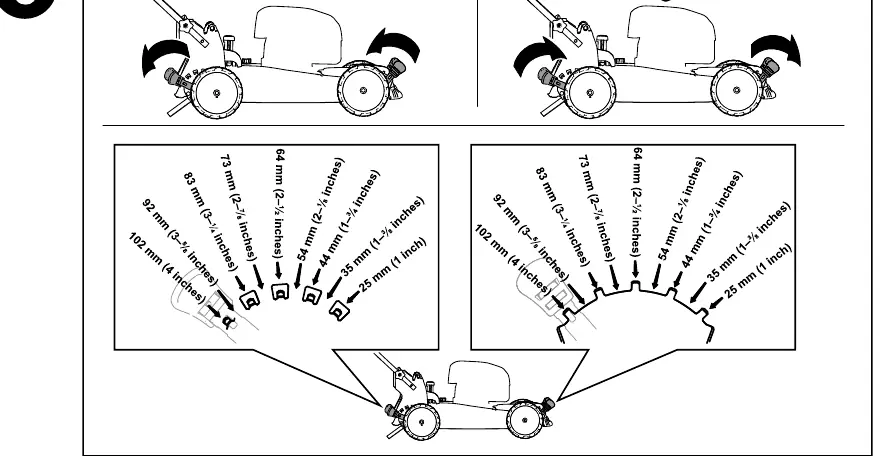

The cutting height can be adjusted to the following settings:
- 25 mm (1 inch)
- 35 mm (1-3/8 inches)
- 44 mm (1-3/4 inches)
- 54 mm (2-1/8 inches)
- 64 mm (2-1/2 inches)
- 73 mm (2-7/8 inches)
- 83 mm (3-1/4 inches)
- 92 mm (3-5/8 inches)
- 102 mm (4 inches)
SmartStow Storage

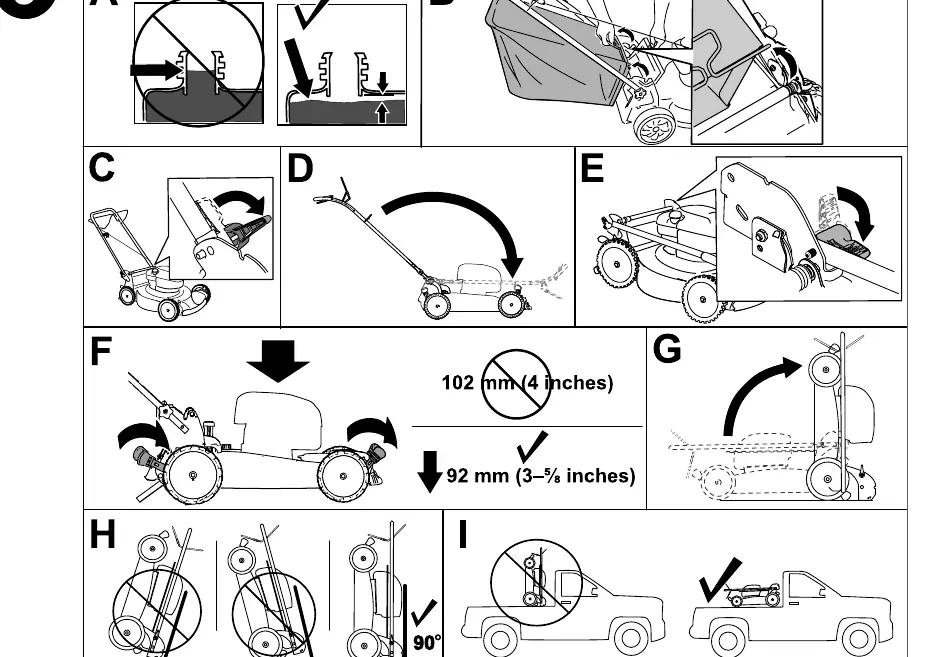

The SmartStow feature allows for vertical storage to save space:
- Ensure the fuel tank is not overfilled.
- Fold the handle down according to the instructions.
- Stand the mower vertically at a 90-degree angle.
- Ensure the mower is stable in the vertical position.
