Husqvarna TC 238TX Riding Lawn Mower User Manual
Quick guide for the Husqvarna TC 238TX riding lawn mower. Includes assembly, operation, maintenance, safety, and troubleshooting instructions.
PDF source: Français · summary: English
Quick answers from the manual
Quick answer
- The Husqvarna TC 238TX is a ride-on lawn mower. This manual covers assembly, safe operation, maintenance, and troubleshooting. p. 2
Key actions
- To start the engine p. 16
- To engage cutting deck p. 19
- To empty grass catcher p. 20
First start
- Check oil, fuel, battery, tire pressure, and remove air from transmission before first use. p. 15, 34
Show 4 more answers Show less
Problems and fixes
Engine does not start
Check fuel, throttle, spark plug, air filter, fuel filter.
p. 34Maintenance and reset
- Reset hour meter: Turn ignition key to ON then STOP 5 times. p. 5
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Engine Model | 40N877-0086-B5 | Engine model identifier | p. 40 |
| Cutting Width | 38 in / 97 cm | Width of cut | p. 41 |
Where to find it in the PDF
- Assembly p. 10, 11, 12, 13
- Operation p. 15, 16, 17, 18
- Maintenance p. 21, 22, 23, 24
- Troubleshooting p. 34, 35, 36, 37
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
This manual provides essential information for the safe and efficient operation of the Husqvarna TC 238TX riding lawn mower. Always read the safety chapter before operating the machine. Key tasks include proper assembly, regular maintenance, and following safety protocols, especially when operating on slopes.
Product overview

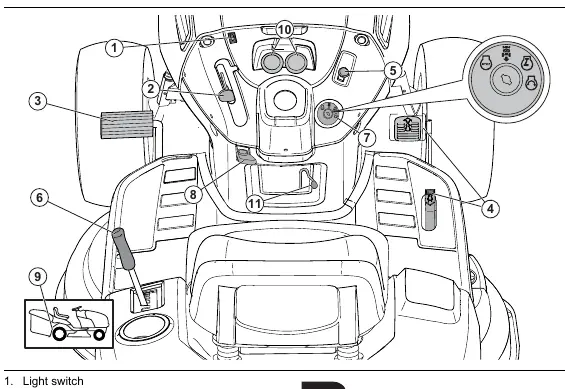

The mower features various controls including a light switch, throttle control, brake and clutch pedal, forward/reverse drive pedals, attachment clutch control, attachment lift lever, ignition switch, parking brake lever, freewheel lever, hour meter, and EZ Mulch lever.
Safety
Important safety warnings:
- Keep children out of the mowing area.
- Do not operate on slopes greater than 15°.
- Always wear eye and ear protection.
- Keep hands and feet away from rotating parts.
- Stop the engine and remove the ignition key before leaving the machine.
- Do not operate the machine under the influence of alcohol or drugs.
Assembly

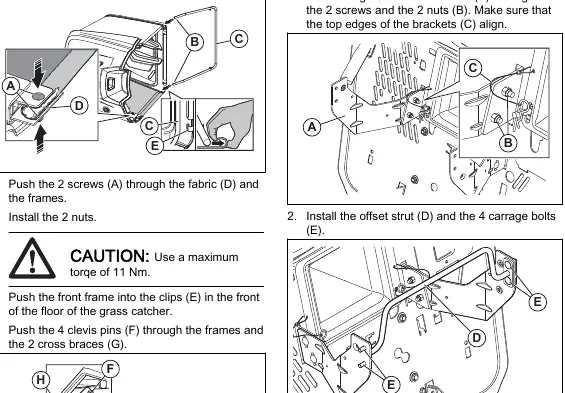

The product requires assembly upon purchase. Ensure all loose parts are accounted for. Follow the detailed steps in the manual for assembling the grass catcher, installing the tow hitch, adjusting the seat, and connecting the battery. Ensure the transmission is in the correct mode before moving the product off the shipping skid.
Operation
Before starting, check the engine oil level, fuel level, and tire pressure. To start the engine, sit in the seat, ensure the cutting deck is disengaged, and follow the specific instructions for cold or warm starts. Use the forward and reverse pedals to control movement. Engage the cutting deck using the attachment clutch control.
Maintenance
Regular maintenance is crucial for performance and safety. Refer to the maintenance schedule for intervals (before each use, 8, 25, 50, 100 hours, each season, before storage). Tasks include checking brake function, tire pressure, blades, battery, and engine oil. Keep the cooling system and air filter clean.
Troubleshooting
If the engine does not start, check the fuel level, throttle position, spark plug, air filter, and fuel filter. If the starter motor does not turn, check the battery, clutch control, and brake pedal. For loss of power, check for engine overload, blocked air intake, or low oil level.
Manufacturer information
Husqvarna
Practical help
Common problems
Engine does not start
Check fuel level, throttle position, spark plug, air filter, fuel filter, or water in fuel.
Starter motor does not turn engine
Check battery charge, clutch control, brake pedal, or main fuse.
Engine becomes too hot
Check for engine overload, blocked air intake/cooling fins, or low oil level.
Loss of power
Reduce speed, clean cutting deck, check air/fuel filters, or check for loose wiring.
Before use
- Check engine oil level
- Fill fuel tank
- Check tire pressure
- Ensure cutting deck is disengaged
- Check battery charge
Show more Show less
Specs in practice
- Engine Model
- 40N877-0086-B5
- Cutting Width
- 38 inches / 97 cm
- Cutting Height
- 1.5 - 4.0 inches / 3.8 - 10.2 cm
- Max Engine Speed
- 2600 ± 100 rpm
Images and diagrams
- Product overview showing controls
- Grass catcher assembly steps
- Battery connection diagram
- Cutting deck adjustment points
Model compatibility
- Use only manufacturer-approved accessories
- Use gasoline with max 10% ethanol and max 15% MTBE
