VEVOR 2020A Hand Truck User Manual
Comprehensive user guide for the VEVOR 2020A hand truck. Includes assembly instructions, safety warnings, weight capacity limits, and maintenance tips.
Quick answers from the manual
Quick answer
- To operate the VEVOR 2020A, keep it upright, place a foot on the axle, pull the release lever (A or F) inward, and pull the frame up using the handle (B or G). Finally, manually unfold the bottom plate (C). p. 5, 9
Key actions
- Unfolding the cart p. 5, 9
Maintenance and reset
- Inspect accessories for wear, cracks, and other damage before use. Replace defective parts immediately. p. 10
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Weight Capacity | 198-400 lbs | Varies by configuration (198/250 lbs or 330/400 lbs). | p. 6, 10 |
Where to find it in the PDF
- Safety Instructions p. 4
- First Way to Use p. 4, 5
- Second Way to Use p. 7, 8, 9
- Maintenance p. 10
Table of contents
Manual images
Click an image to enlargeQuick Guide
This manual provides instructions for the VEVOR 2020A hand truck. The cart features a foldable design with two primary usage configurations. Always ensure the cart is on a stable surface and do not exceed the specified weight limits.
Safety Instructions
- Do not place the cart near flammable materials.
- Forbidden: Carrying people is strictly prohibited under any condition.
- Stairs: This product cannot be used to go up or down stairs.
- Overload: Strictly prohibited.
- Terrain: Do not move too fast when passing over potholes or uneven ground.
- Inspection: Always inspect accessories for wear, cracks, or damage before use. Replace defective parts immediately.
Assembly and Operation
The First Way to Use

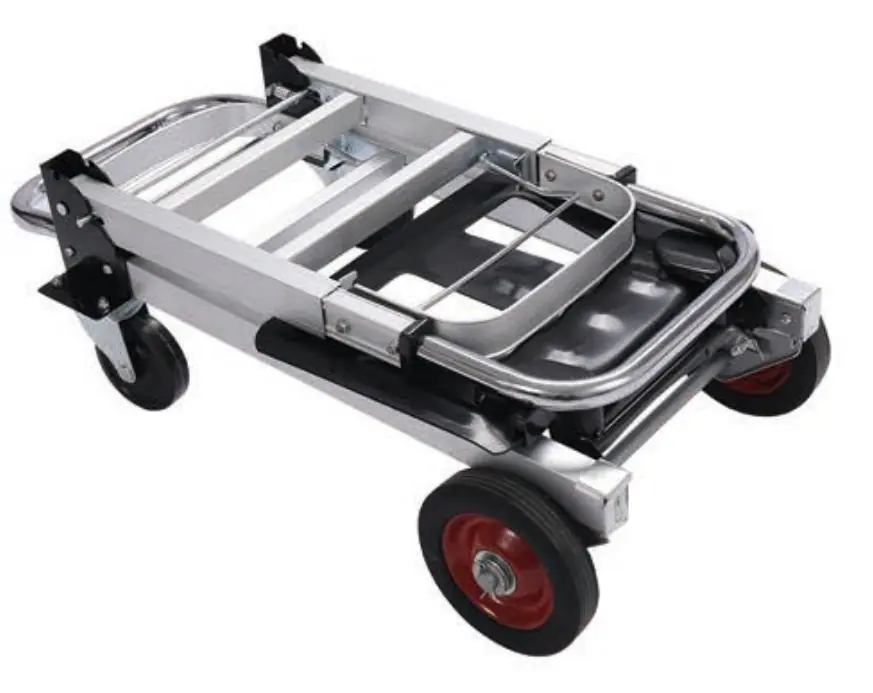

- Keep the cart in a horizontal position.
- Keep the handcart upright and place one foot on the axle.
- Hold the A lever and pull it inward.
- While holding the A lever, use your other hand to hold handle B and pull the frame up and out.

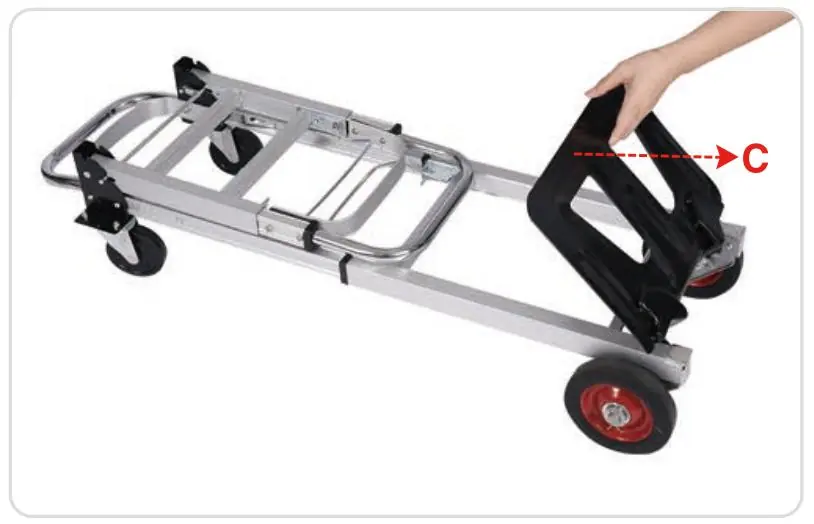

- Open the bottom plate C by hand.
The Second Way to Use
- Keep the cart in a horizontal position.
- Keep the handcart upright and place one foot on the axle.
- Hold the A lever and pull it inward, while holding handle B with your other hand, pull the frame up and out.
- Open the bottom plate C by hand.

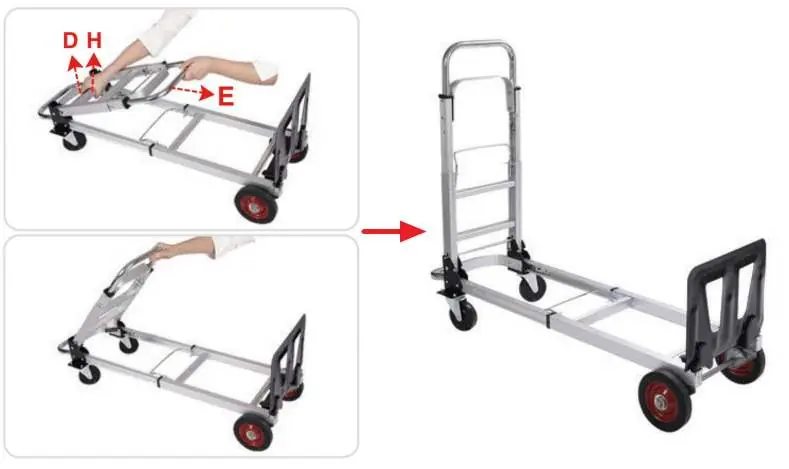

- Hold parts D and H with your right hand, and hold the E handle with your left hand to open the bracket along the direction of the frame.
- Hold the F lever and pull it inward, while holding the G handle with your other hand, pull the frame up and out.
Maintenance
- Avoid prolonged exposure to the sun to prevent material aging.
- Inspect all accessories for wear, cracks, or other damage before each use.
- Replace any defective accessories immediately.
Technical Specifications
The weight capacity varies depending on the configuration:
- Configuration 1: Recommended weight limit is 198 lbs; in extreme cases, do not exceed 250 lbs.
- Configuration 2: Recommended weight limit is 330 lbs; in extreme cases, do not exceed 400 lbs.
Manufacturer information
VEVOR
Practical help
Common problems
Difficulty unfolding the frame
Ensure your foot is firmly placed on the axle to stabilize the cart while pulling the release lever (A or F) and the handle (B or G) simultaneously.
Cart feels unstable
Check that the bottom plate C is fully opened and the bracket is locked in place. Ensure the load is within the specified weight limits.
Before use
- Inspect the frame and wheels for cracks, wear, or damage.
- Ensure the cart is not near flammable materials.
- Verify the load weight is within the recommended limits (198 lbs or 330 lbs depending on setup).
- Check that all levers and handles operate smoothly.
Specs in practice
- Weight Capacity
- The maximum load the cart can safely carry. Exceeding 198 lbs (or 330 lbs in the second configuration) is considered an extreme case and should be avoided.
Images and diagrams
- Lever A/F: The primary release mechanism to unlock the frame for unfolding.
- Handle B/G: The grip used to pull the frame into the upright position.
- Plate C: The load-bearing plate that must be manually unfolded.
Model compatibility
- This product is not designed for use on stairs.
- Not intended for transporting people.
