User Manual for Vevor Stair Climbing Cart 2025B(JP)
Quick guide for the Vevor Stair Climbing Cart 2025B(JP). Includes assembly instructions, safety warnings, load capacities, and maintenance tips.
Quick answers from the manual
Quick answer
- The Vevor 2025B(JP) is a stair-climbing cart with a maximum load capacity of 170kg on flat ground and 100kg on stairs. p. 3
Key actions
- Assemble the cart by attaching the front support, wheel frames, connectors, and wheel sets using the provided bolts and pins. p. 6, 7
Problems and fixes
Wheel rolling is not smooth
Add oil to lubricate the rotating parts.
p. 7Maintenance and reset
- Avoid prolonged sun exposure, fold when not in use, and keep away from children. p. 7
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Max load (flat ground) | 170kg | Maximum weight capacity on flat surfaces | p. 3 |
| Max load (climb stairs) | 100kg | Maximum weight capacity on stairs | p. 3 |
Where to find it in the PDF
- Safety and Specs p. 3
- Assembly p. 6, 7
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
This manual provides instructions for the Vevor Stair Climbing Cart 2025B(JP). It covers assembly, safety, and maintenance to ensure proper operation.
Safety instructions
- Do not place the cart near flammable materials.
- It is strictly forbidden to carry people.
- Use caution when going up and down stairs.
- Do not exceed the maximum load capacity.
- Do not move too fast when passing over potholes or uneven areas.
Technical specifications
- Maximum load (flat ground): 170kg
- Maximum load (climb stairs): 100kg
- Folded size: 38.5 x 46.5 x 74cm
- Unfolding dimension: 65.5 x 46.5 x 110cm

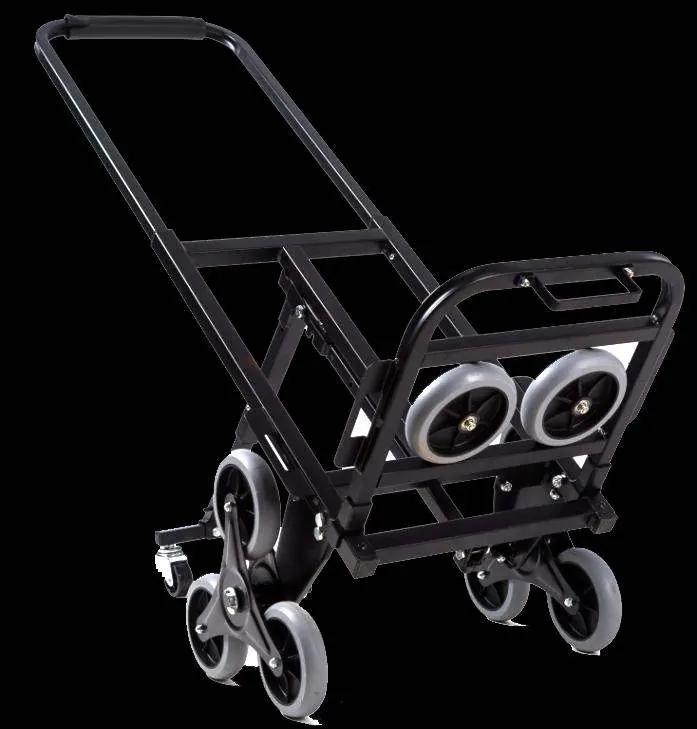

Structure and components
The cart consists of a frame, wheel sets, and support components. Key parts include the Handle, Snap, Front Support, Spare Wheel, Climbing Wheel, and Universal Wheel. Ensure all components listed in the manual are present before assembly.
Assembly instructions
- Fix the front support (E) to the front of the frame using bolts (G+J).
- Fix the wheel frames (B) on both sides of the frame using bolts (F+L).

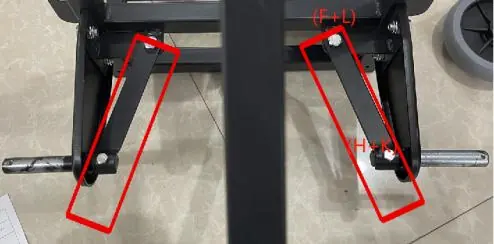

- Connect and fix the connectors (D) using bolts (F+L) and (H+K).
- Install the spacer sleeves (I) and washers (N) onto the axle in the specified order.

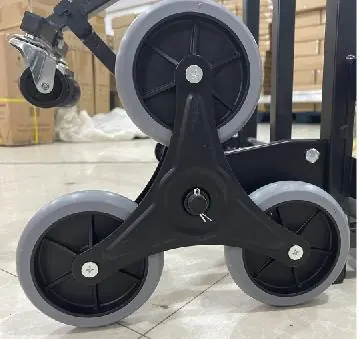

- Install the wheel sets (C), insert the pins (M), and bend them to secure the wheels.
Troubleshooting
If the wheel rolling is not smooth, add oil to lubricate the rotating parts.
Maintenance
- Avoid prolonged exposure to the sun to prevent material aging.
- Fold the cart when it is not used for a long time.
- Keep the cart away from children.
Manufacturer information
VEVOR
Practical help
Common problems
Wheel rolling is not smooth
Add oil to lubricate the rotating parts.
Before use
- Check that all bolts are tightened securely.
- Ensure the cart is not overloaded (170kg flat / 100kg stairs).
- Verify the wheel sets are securely pinned.
- Inspect the frame for any damage.
Specs in practice
- Max load (flat ground)
- 170kg
- Max load (climb stairs)
- 100kg
Images and diagrams
- 3. Front Support
- 4. Spare Wheel
- 5. Climbing Wheel
- 6. Universal Wheel
