Vevor Yurt 121011-17-331-08C User Manual
Comprehensive user guide for the Vevor Yurt (Model 121011-17-331-08C). This manual provides detailed instructions on assembly, inflation, folding, storage, safety precautions, and a complete parts list for your inflatable tent.
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
This manual provides instructions for the assembly, operation, and storage of the Vevor Yurt. Key operational requirements include ensuring the assembly site is flat, level, and free of sharp objects. The tent requires inflation to a pressure between 6 and 8 psi. Always dry the product thoroughly before storage to prevent mildew.
Safety instructions
- Warning: Read all instructions before use. Failure to do so can result in serious injury.
- Do not sit or stand on the item.
- This product is not a toy; keep children away.
- Do not exceed specified weight capacities.
- Inspect the tent before every use; do not use if parts are loose or damaged.
- Wear ANSI-approved safety goggles and heavy-duty work gloves during assembly.
- Assemble only on a flat, level, hard, and smooth surface.
- Do not assemble if tired or under the influence of alcohol, drugs, or medication.

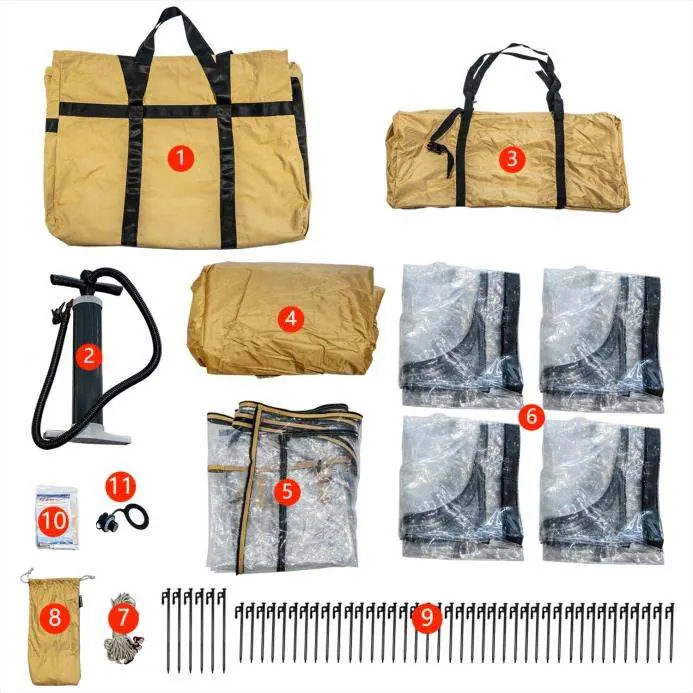

Parts list
Ensure all parts are present before starting assembly:
- Organizer bags (x2)
- Hand pump (x1)
- Rain fly (x1)
- Transparent door (x1)
- Transparent windows (x4)
- Ropes (x10)
- Pocket (x1)
- Pegs (x46, including six 30cm pegs for the rain fly)
- Self-complementing toolkit (x1)
- Nozzle spare parts (x1)
Assembly steps

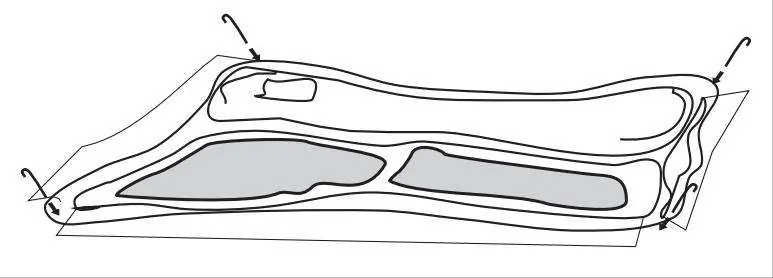

- Site Preparation: Clear the area of trash and sharp objects. Unfold the tent and insert stakes into the corners.
- Valve Check: The tent has two external air valves. Ensure one is closed before inflating. Check and tighten the deflation valve before use.

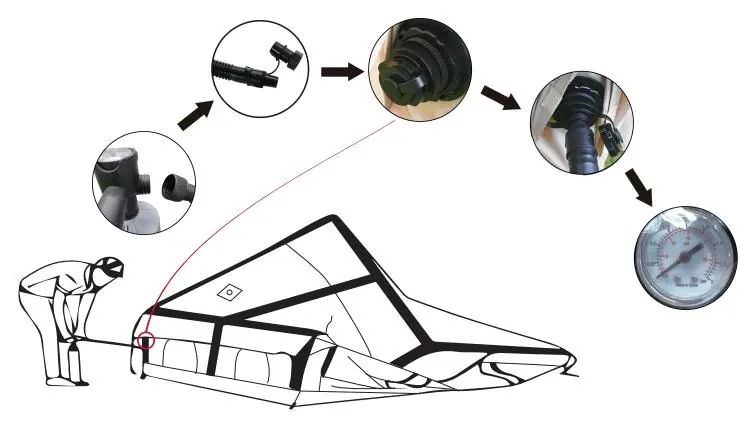

- Inflation: Attach the pump head to the valve. Inflate until the air column stands upright. Do not over-inflate, especially in hot weather, as the air column may burst due to heat expansion. Ideal pressure is 6-8 psi.
- Accessories: Install the transparent door and windows as needed.

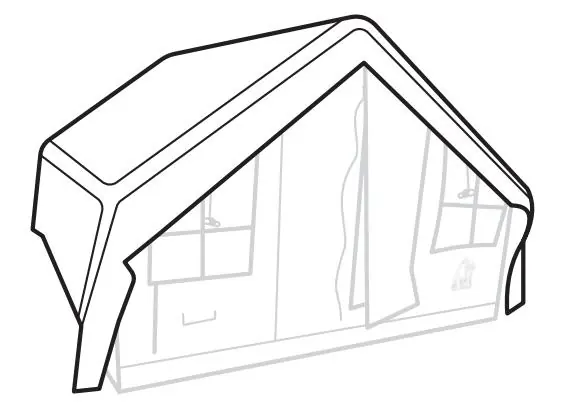

- Securing: On rainy days, attach the rain fly for better waterproofing. Tighten the valve cover and secure the tent with guy ropes and pegs.
Folding and storage

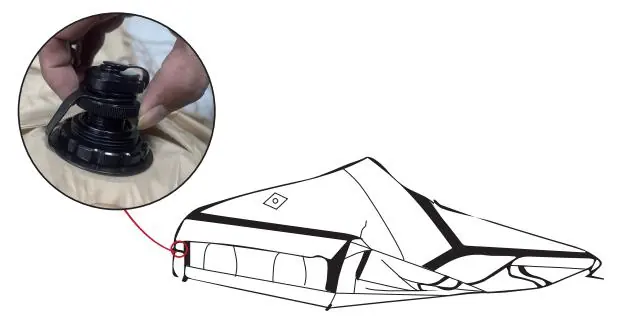

- Deflation: Unscrew the valve of the inflatable nozzle to release air.
- Preparation: Remove ground pegs and stow wind ropes. Spread the tent flat.

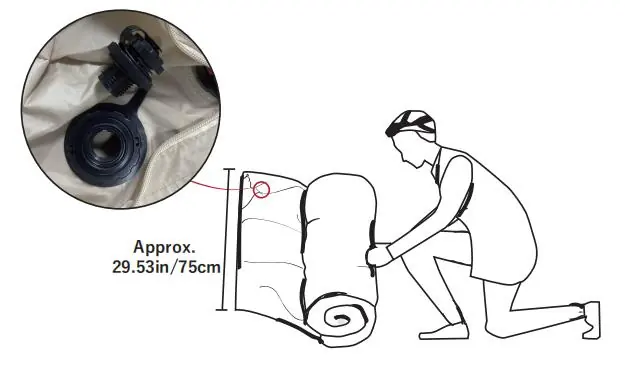

- Folding: Fold the sides toward the center, then fold in half (approx. 75cm width).
- Packing: Roll the tent to fit into the organizer bag. Do not roll from the side of the air vent.
Technical specifications
- Model: 121011-17-331-08C
- Color: Yellow
- Product Size: 4800*3600*2200mm
Manufacturer information
VEVOR
Practical help
Common problems
Tent does not stand upright after inflation.
Continue inflating until the air column is fully upright.
Air column bursting or damage.
Do not over-inflate. Ideal pressure is 6-8 psi. Reduce inflation in hot weather to account for air expansion.
Mildew formation.
Always dry the product completely before storing.
Before use
- Inspect for loose or damaged parts.
- Ensure the assembly area is clean, well-lit, and free of sharp objects.
- Check that the deflation valve is tightened.
- Wear safety goggles and work gloves.
- Verify the ground is flat and level.
Specs in practice
- Ideal Pressure
- 6-8 pounds per square inch (psi) for safe inflation.
- Product Size
- 4800mm x 3600mm x 2200mm.
Images and diagrams
- Assembly steps show the inflation process using a pump and pressure gauge.
- Folding instructions illustrate how to deflate and fold the tent to fit into the organizer bag.
Model compatibility
- Use only on a flat, level, hard, and smooth surface.
