Vevor 121010-12-331-08C Inflatable Yurt Tent User Guide

Quick guide from the manual

This guide provides essential instructions for the Vevor 121010-12-331-08C inflatable yurt tent. Always ensure the assembly area is clean, well-lit, and free of sharp objects. The ideal inflation pressure for the tent is between 6 and 8 PSI. Do not over-inflate, especially during hot summer days, as air expansion can damage the air column. Always dry the tent completely before storage to prevent mildew.

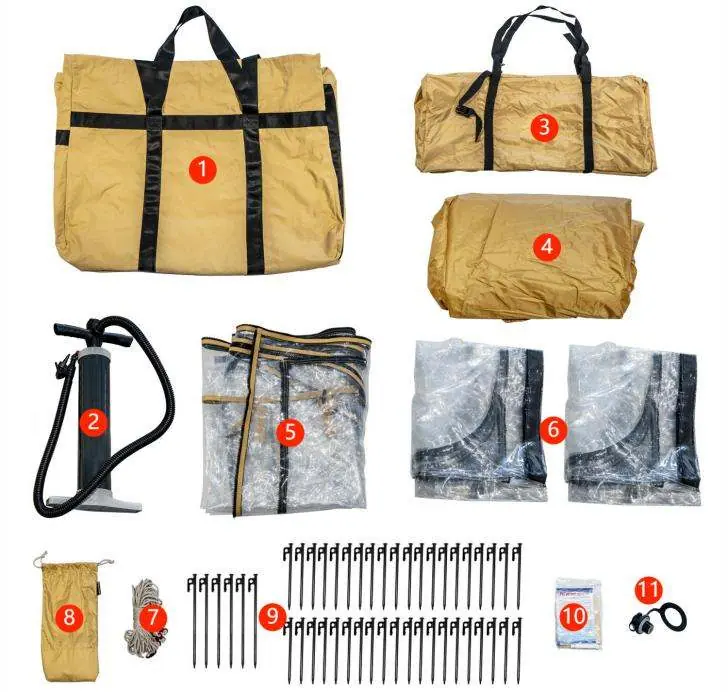

Parts List

• Organizer bags (x2)
• Hand pump (x1)
• Rain fly (x1)
• Transparent door (x1)
• Transparent windows (x2)
• Ropes (x6)
• Pocket (x1)
• Pegs (x46, including 30cm pegs for the rain fly)
• Self-complementing toolkit (x1)
• Nozzle spare parts (x1)

Assembly Instructions

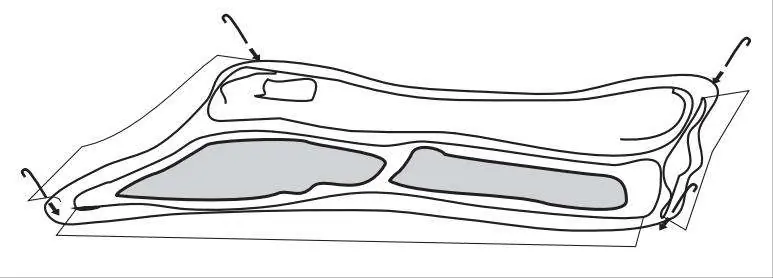

Step 1: Site PreparationClear the area of trash and sharp objects. Ensure the ground is level. Unfold the tent and insert stakes into the corners.

Step 2: Valve SetupThe tent features two external air valves. Ensure one valve is closed before beginning inflation. Check and tighten the deflation valve before use.

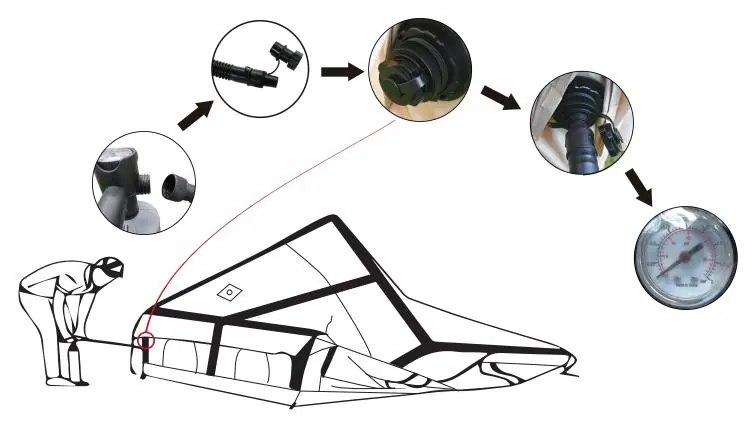

Step 3: InflationAttach the pump head to the valve. Inflate until the air column stands up fully. Do not exceed 6-8 PSI.

Step 4: AccessoriesInstall the transparent door and windows according to your needs.

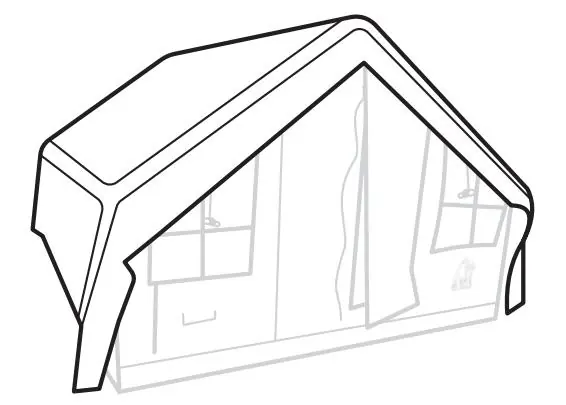

Step 5: SecuringOn rainy days, attach the rain fly for better waterproofing. Tighten the valve cover and secure the tent using the provided guy ropes and pegs.

Folding and Storage

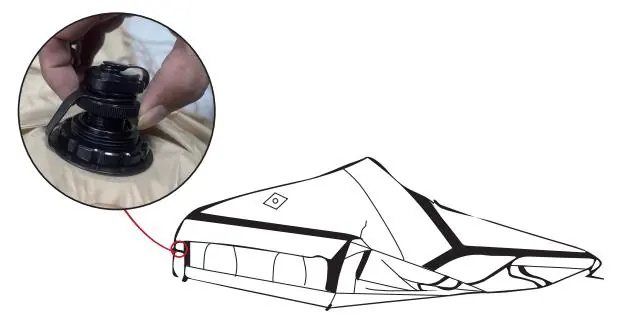

Step 1: DeflationUnscrew the valve nozzle to deflate the tent.

Step 2: PreparationRemove all ground pegs and stow the wind ropes. Spread the tent out flat.

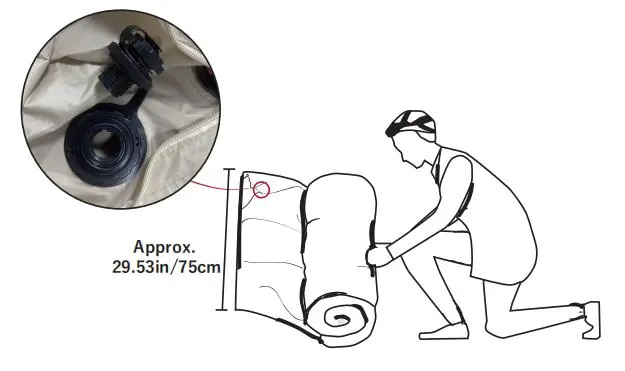

Step 3: FoldingFold the sides toward the center, then fold in half (approx. 75cm). Note: Do not roll the tent from the side of the air vent.

Step 4: PackingPlace the folded tent into the organizer bag.

Safety Warnings

• Do not sit or stand on the tent.
• This product is not a toy; keep children away.
• Do not exceed weight capacities.
• Inspect the tent before every use; do not use if parts are damaged.
• Do not assemble if tired or under the influence of alcohol/drugs.
• Wear safety goggles and work gloves during assembly.
