Furniture / Trade Show Displays
LookOurWay LED Light Set for Canopy Tent
Quick guide for the LookOurWay LED Light Set for Canopy Tent. Learn how to charge, mount, and operate your lighting system with this easy-to-follow manual.
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
This guide covers the setup and operation of the LookOurWay LED Light Set for Canopy Tents. Before first use, ensure the lights are fully charged using the provided USB charger. The lights are designed for easy attachment to canopy frames using the included straps and offer multiple lighting modes for various needs.
What's included
- LED Light(s)
- USB Charger
- USB Cable
- Mounting Straps
- EVA Carry Case
Product overview

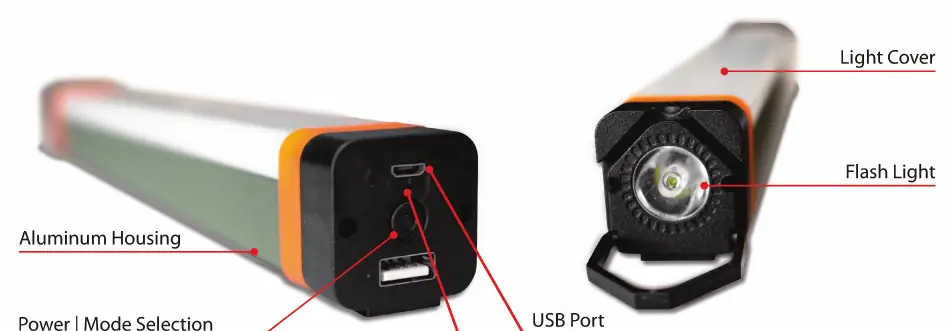

The LED light unit features an aluminum housing with a power/mode selection button on the end. It includes a USB port for charging and a charging indicator light. The opposite end contains the flashlight lens.
Specifications
- SKU: 10M1011004-2P / 10M1011004-4P
- Battery Type: Lithium Ion
- Input Voltage: DC5V 1A (USB Charger included)
- Water Resistance: IP20
- Dimensions: 12.5" x 1.5" x 1.5"
- Brightness: 390 Lumens (per light)
- Color Temperature: 6500K (Bright White)
- Discharge Time: 6-8 Hours
- Light Modes: High, Low, Bug Repelling Amber, Flashlight
Charging and operation
Charging: Before using your LED Light set, make sure that they are fully charged. Plug each light into a 120V power source using the provided charger and USB cables.

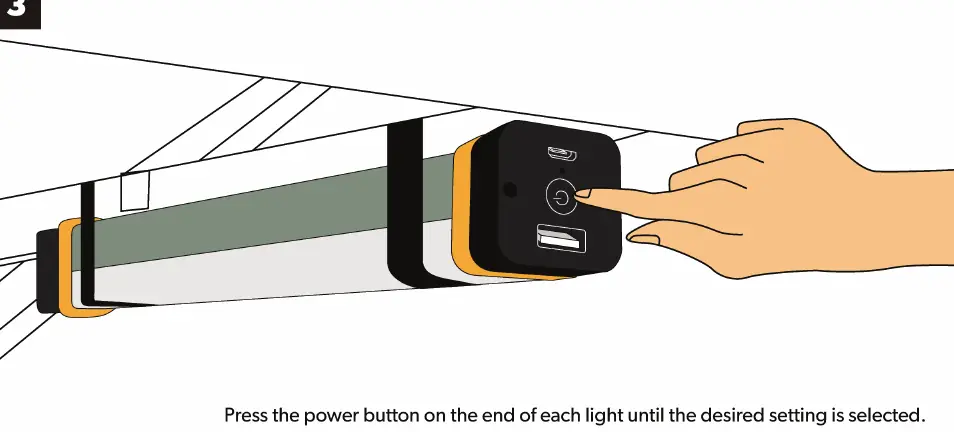

Operation: Press the power button on the end of each light to cycle through the available settings: High, Low, Bug Repelling Amber, and Flashlight.
Mounting instructions

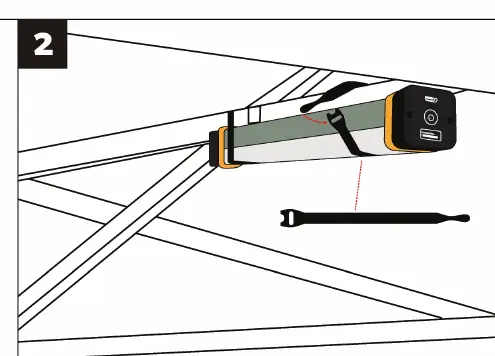

Remove the LED Light from its case and secure it to your Canopy Tent frame using the hook & loop Mounting Straps included in the set. Ensure the straps are tightened securely to prevent the light from slipping.
Manufacturer information
LookOurWay, LLC
Practical help
Common problems
Light does not turn on
Ensure the unit is fully charged using the provided USB charger and cable.
Light slips from the canopy frame
Check that the hook & loop mounting straps are pulled tight and securely fastened around the frame.
Before use
- Charge the light fully before first use
- Verify all components are present (Light, Charger, Cable, Straps)
- Check the canopy frame for suitable mounting points
- Ensure the USB charger is connected to a 120V power source
Images and diagrams
- The power button cycles through modes: High, Low, Bug Repelling Amber, and Flashlight.
- The USB port is located on the end of the light for charging.
- The charging indicator light shows the status of the battery.
Model compatibility
- Compatible with standard canopy tent frames.
- Requires 120V power source for the provided USB charger.
