User Manual for VEVOR 2243B Stair Climbing Cart
Quick guide for the VEVOR 2243B Stair Climbing Cart. Includes assembly instructions, safety warnings, load capacities, and maintenance tips.
Quick answers from the manual
Quick answer
- The VEVOR 2243B is a stair climbing cart with a maximum load capacity of 350kg on flat ground and 150kg when climbing stairs. p. 3
Key actions
- Assemble the cart by attaching the wheel frame and tray to the main frame using the provided bolts and nuts. p. 6
Problems and fixes
Wheel rolling is not smooth
Add oil to lubricate the rotating parts.
p. 9Show 3 more answers Show less
Maintenance and reset
- Avoid prolonged exposure to the sun to prevent aging. Fold the cart when not in use. p. 9
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Maximum Load (Flat Ground) | 350kg | Maximum weight capacity on flat surfaces | p. 3 |
| Maximum Load (Climb Stairs) | 150kg | Maximum weight capacity when climbing stairs | p. 3 |
Where to find it in the PDF
- Safety Instructions p. 3
- Assembly p. 6, 7
- Troubleshooting p. 9
Table of contents
Manual images
Click an image to enlargeQuick Guide
The VEVOR 2243B is a stair climbing cart designed for transporting goods. Before use, ensure you are familiar with the load limits and safety precautions. Always inspect the cart for any loose parts or damage before operation.
Safety Instructions
- Do not place the cart near flammable materials.
- It is strictly forbidden to carry people under any condition.
- Pay close attention to safety when navigating stairs.
- Overloading is strictly prohibited.
- Do not move too fast when passing over pothole areas.
Technical Specifications
The cart has specific load capacities depending on the terrain:
- Maximum Load (Flat Ground): 770lbs / 350kg
- Maximum Load (Climb Stairs): 330lbs / 150kg
- Material: Aluminum alloy, Steel, and Plastic
Structure and Components

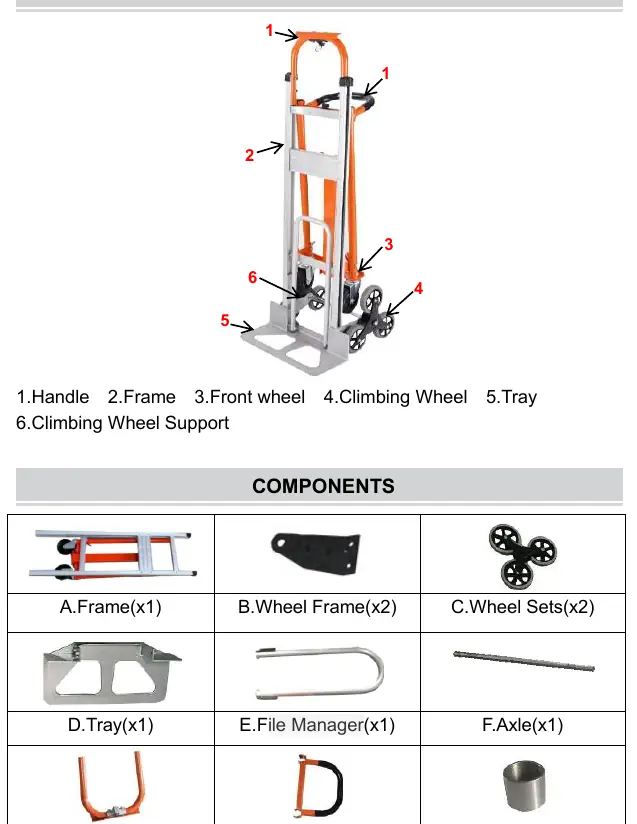

The cart consists of several key components, including the main frame, climbing wheel sets, tray, and handles. Ensure all parts listed in the manual are present before beginning assembly.
Assembly
Follow these steps to assemble your cart:
- Step 1: Insert component D (Tray) into the main frame. Place component E inside component D. Align the holes and insert component B. Secure them using bolts L and nuts N.
- Step 2: Insert axle F into the wheel frame and secure it with two pins K. Place parts K, J, and C on both sides in sequence, ensuring the pins are bent to secure them.

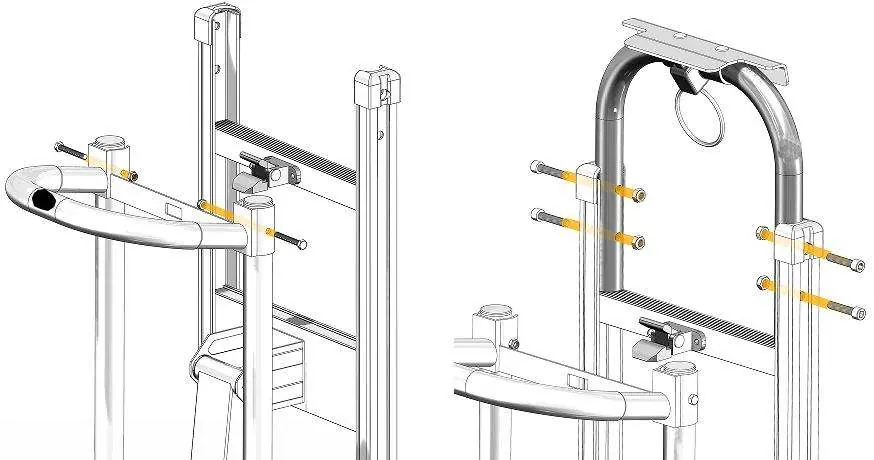

- Step 3: Insert parts G and H (Handles) into the frame. Insert bolts into both sides and tighten them with nuts.
- Step 4: To use as a folding hand truck, push the sub-frame into the primary frame until the spring lock engages. Ensure the lower metal hook is properly latched. If loading extra-long items, fold down the foldable U-extended nose plate.
Operation

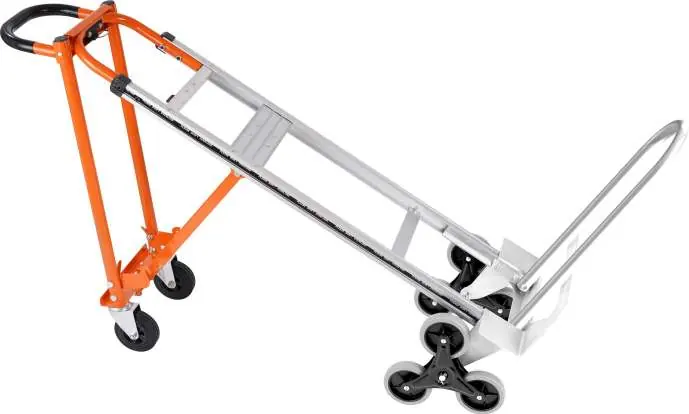

To secure the cart in its configuration, pull the spring latch lock to secure it into the locking groove of the D-shaped handle. To secure the sub-frame, slide the tab on the U-shaped handle into the Y-shaped slot at the base of the sub-frame.
Maintenance and Troubleshooting
Regular maintenance ensures the longevity of your cart:
- Maintenance: Avoid prolonged exposure to the sun to prevent aging. Fold the cart when not in use for long periods. Keep children away from the cart.
- Troubleshooting: If the wheel rolling is not smooth, it is likely due to insufficient lubrication. Add oil to lubricate the rotating parts.
