User Manual for Vevor 2124B Stair Climbing Cart
Comprehensive user guide for the Vevor 2124B Stair Climbing Cart. Includes assembly instructions, safety warnings, technical specifications, and maintenance tips.
Quick answers from the manual
Quick answer
- The Vevor 2124B is a stair-climbing cart with a 100kg capacity on flat ground and 50kg on stairs. It requires assembly of the wheels using the provided bolts and tools. p. 3, 6
Key actions
- Assemble the wheels p. 6
First start
- Unfold the frame and install the four universal wheels using the provided bolts and nuts. p. 6
Show 4 more answers Show less
Problems and fixes
Wheel rolling is not smooth
Add oil to lubricate the rotating parts
p. 7Maintenance and reset
- Avoid prolonged sun exposure, fold when not in use, and keep away from children. p. 7
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Maximum Load (Flat Ground) | 100kg | Max weight capacity on level surfaces | p. 3 |
| Maximum Load (Climb Stairs) | 50kg | Max weight capacity when using stairs | p. 3 |
Where to find it in the PDF
- Safety and Specs p. 3
- Assembly p. 6
Table of contents
Manual images
Click an image to enlargeQuick Guide
The Vevor 2124B is a stair-climbing cart designed for transporting goods. It features a foldable frame and specialized wheels for navigating stairs. Always ensure the load is within the specified weight limits before use.
Safety Instructions
- Do not place the cart near flammable materials.
- It is strictly forbidden to carry people on the cart under any condition.
- Exercise caution when going up and down stairs.
- Overloading is strictly prohibited.
- Do not move too fast when passing over potholes or uneven surfaces.
Technical Specifications
- Maximum Load (Flat Ground): 100kg
- Maximum Load (Climb Stairs): 50kg
- Folded Size: 46 x 47 x 114.7 cm
Structure Diagram
The cart consists of the following main parts:
- Handle
- Push Button
- Connector
- Rotating Shaft
- Universal Wheel
- Tray
- Climbing Wheel
Components
The package includes the following components for assembly:

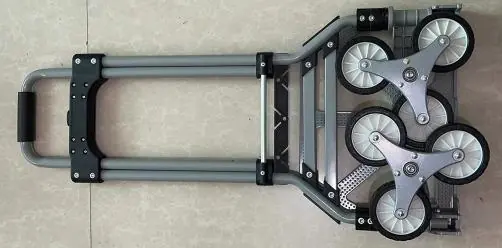

- Frame (x1)
- Universal Wheels (x4)
- Long Bolts (x4)
- Short Bolts (x4)
- Nuts (x8)
- Installation Tools (x2)
- Elastic Binding Ropes (x2)
Assembly and Use
- Unfold the frame (A).

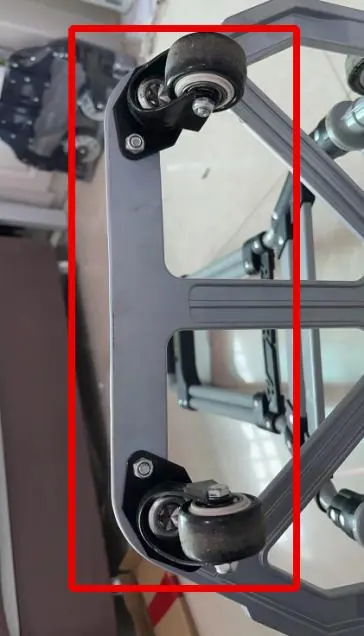

- Install two universal wheels (B) at the front end of the tray bottom using the short bolts (D+E).
- Install the remaining two universal wheels (B) at the rear end of the tray bottom using the long bolts (C+E).
Troubleshooting
If the wheel rolling is not smooth, it is likely due to insufficient lubrication. Add oil to lubricate the rotating parts.
Maintenance
- Avoid prolonged exposure to the sun to prevent aging of materials.
- Fold the cart when it is not in use for a long period.
- Keep children away from the cart to prevent them from using it as a toy.
Manufacturer information
VEVOR
Practical help
Common problems
Wheel rolling is not smooth
Add oil to lubricate the rotating parts.
Before use
- Ensure the load does not exceed 100kg on flat ground.
- Ensure the load does not exceed 50kg when climbing stairs.
- Check that all wheels are securely installed.
- Ensure the frame is fully unfolded before loading.
- Verify that the elastic binding ropes are available for securing the load.
Show more Show less
Specs in practice
- Maximum Load (Flat Ground)
- The maximum weight the cart can safely carry on level surfaces is 100kg.
- Maximum Load (Climb Stairs)
- The maximum weight the cart can safely carry when navigating stairs is 50kg.
Images and diagrams

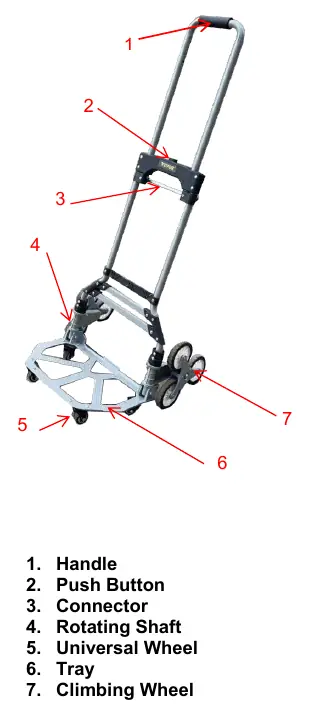

- 1. Handle: Used for pushing and pulling the cart.
- 2. Push Button: Used for adjusting the handle height.
- 5. Universal Wheel: Provides mobility on flat surfaces.
- 7. Climbing Wheel: Specialized wheel assembly for stairs.
