User Manual for VEVOR 2143B Hand Truck
Quick guide for the VEVOR 2143B hand truck. Includes assembly instructions, safety warnings, load capacity specifications for different usage modes, and maintenance tips.
Quick answers from the manual
Quick answer
- The VEVOR 2143B is a convertible hand truck. Assembly requires following the provided installation and physical detail diagrams. Always adhere to the specific load capacities for the three different usage modes. p. 2, 4, 5
Key actions
- Assemble the hand truck using the provided installation and physical detail diagrams. p. 4, 5
First start
- Inspect all parts before assembly. Follow the installation diagram to connect the frame, wheels, and support components. p. 3, 4
Show 3 more answers Show less
Maintenance and reset
- Avoid prolonged sun exposure to prevent aging. Inspect accessories for wear, cracks, or damage before each use and replace defective parts immediately. p. 6
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Material | Alloy Aluminium + Alloy Steel | Construction material | p. 6 |
Where to find it in the PDF
- Safety Instructions p. 3
- Installation p. 4, 5
- Product Parameters p. 6
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
This document provides essential instructions for the assembly, operation, and maintenance of the VEVOR 2143B hand truck. Users should read all instructions carefully before operating the equipment to ensure safety and proper functionality.
Safety Instructions
Failure to follow these warnings may result in serious injury or property damage:
- Do not place the unit near flammable materials.
- Transporting people is strictly forbidden under any conditions.
- This product is not designed for use on stairs.
- Overloading is strictly prohibited.
- Do not move at high speeds when passing over potholes or uneven surfaces.
Installation

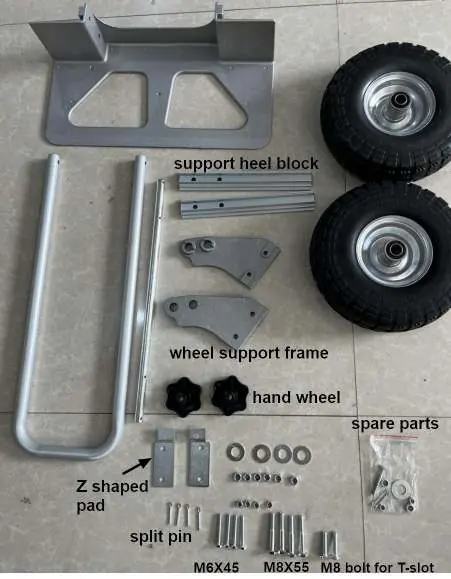

Before beginning assembly, ensure all parts are present. The assembly process involves combining the installation instruction diagram with the physical detail diagram provided in the manual. Key components include the frame, wheels, support heel block, Z-shaped pad, and various bolts and nuts (M6 and M8).

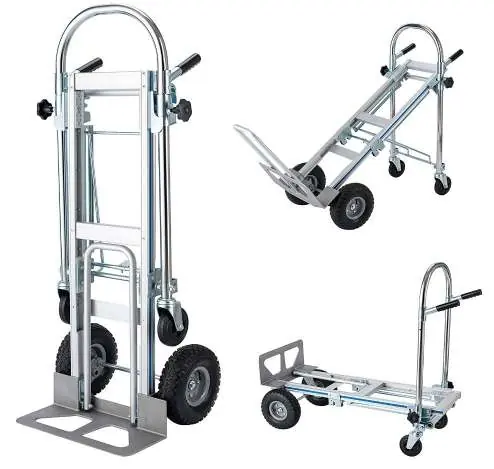

Product Parameters
The hand truck is constructed from a combination of alloy aluminium and alloy steel. Load capacity varies depending on the usage mode:
- Way 1: Normal use up to 550 lbs, extreme use up to 1000 lbs.
- Way 2: Normal use up to 220 lbs, extreme use up to 800 lbs.
- Way 3: Recommended maximum load is 220 lbs.
Maintenance
To ensure the longevity of the product:
- Avoid prolonged exposure to direct sunlight to prevent material aging.
- Inspect all accessories for wear, cracks, or damage before each use.
- Replace any defective accessories immediately.
Manufacturer information
VEVOR
Practical help
Common problems
Wear or damage to accessories
Inspect parts before each use and replace defective accessories immediately.
Material aging
Avoid prolonged exposure to direct sunlight.
Before use
- Verify all installation parts are present
- Inspect accessories for wear, cracks, or damage
- Ensure the load does not exceed the capacity for the specific usage mode
- Check that all bolts and nuts are securely tightened
Show more Show less
Specs in practice
- Load Capacity (Way 1)
- Normal: 550 lbs, Extreme: 1000 lbs
- Load Capacity (Way 2)
- Normal: 220 lbs, Extreme: 800 lbs
- Load Capacity (Way 3)
- Max 220 lbs recommended
Images and diagrams

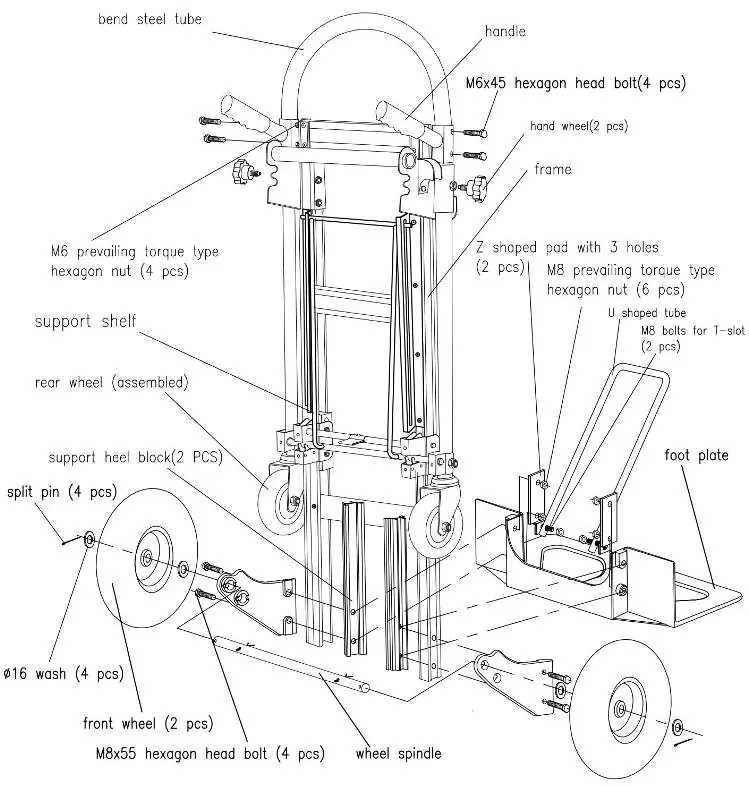

- The assembly diagram illustrates the connection of the handle, frame, wheels, and support components using M6 and M8 bolts, nuts, and split pins.

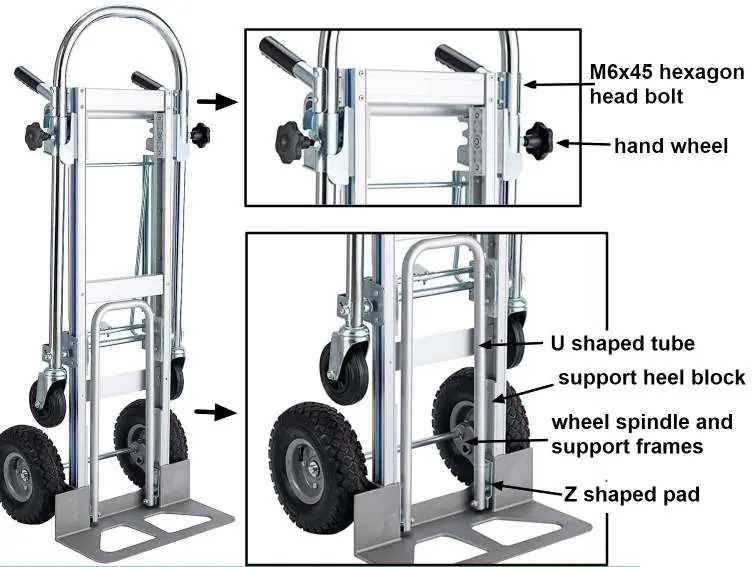

- The physical detail diagram shows the final configuration of the wheels, support frames, and Z-shaped pad.
Model compatibility
- Not for use on stairs
- Do not carry people
Manual page author
Michael Turner
Technical manual editor
