Vivere 13BEAM Steel Beam Hammock Stand Assembly Instructions

Quick guide from the manual

The Vivere 13BEAM is a steel beam hammock stand designed for 13ft (375cm) hammocks. The maximum weight capacity is 205 kg. Always assemble and use the product on a clean, level surface to ensure the frame remains in contact with the ground at all times.

Parts list

Before beginning assembly, ensure all parts are accounted for:

• 2 x Part A
• 4 x Part B
• 1 x Part C
• 2 x Part D
• 9 x Part F (Bolts)
• 2 x Part G (Hooks)
• Spare End Caps (Part E)

Assembly instructions

1. Preparation: Unwrap all packaging materials and ensure you have a clean, dry area for assembly with all necessary tools at hand.

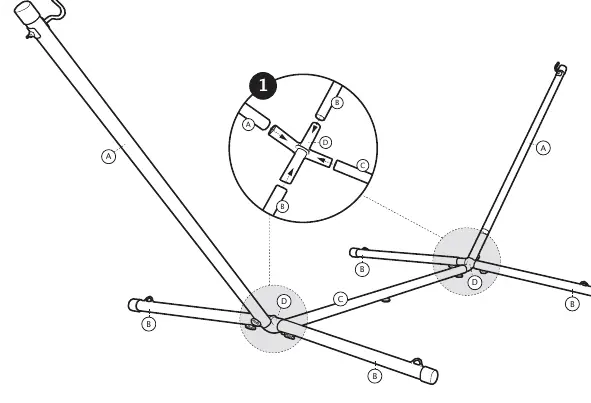

2. Frame Assembly: Connect the base and support beams (Parts A, B, C, D) as shown in the diagrams. Do not tighten bolts until the frame is fully assembled to allow for adjustments.

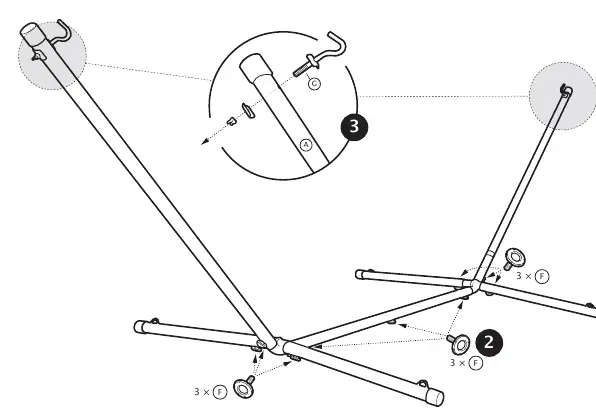

3. Finalizing: Once the frame is aligned, tighten all bolts (Part F). Do not over-tighten.
4. Hooks: Attach the hooks (Part G) to the designated points on the frame.

Warnings and safety

• Maximum weight capacity is 205 kg. Do not exceed this limit.
• Do not stand on the product.
• Keep small parts out of reach of children.
• Inspect and tighten all bolts regularly.
• Do not use the product if any parts are missing, damaged, or worn.

Care and maintenance

To clean the frame, wipe with a clean, damp cloth and warm soapy water. Wipe dry with a clean cloth. Do not use solvent-based cleaners, scourers, abrasives, or chemical cleaners. Never use a pressure hose to wash the product.

The frame is made of powder-coated steel. To prevent corrosion, any scratches or damage to the paintwork should be touched up immediately with metal exterior paint. We recommend using furniture covers when not in use and storing the product in a cool, dry place during winter months.

Warranty

Vivere provides a limited one-year warranty against defects in material and workmanship. To obtain service, contact Vivere via email at [email protected] or call +61 409 918 108 to receive return authorization. You will need to provide photos of the defect and proof of purchase.
