Operator's Manual for Vollrath Tomato Pro, Econo Pro, and Tomato King

Quick guide from the manual

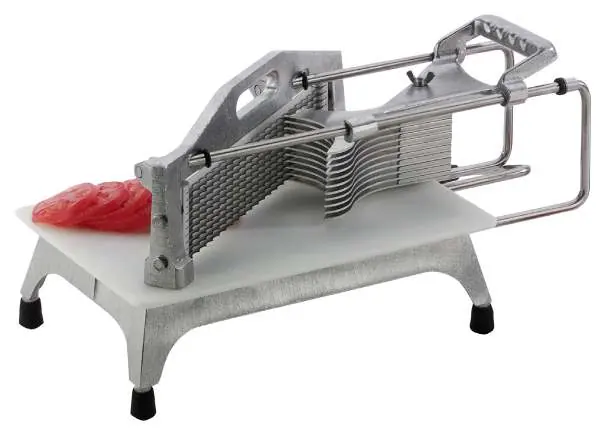

This manual covers the operation and maintenance of the Vollrath Tomato Pro, Econo Pro, and Tomato King food slicers. These units are designed specifically for slicing tomatoes, mushrooms, and strawberries. Do not use the equipment for hard foods like onions or lemons, as this will cause blade breakage. Always clean the equipment before first use and immediately after every use to prevent corrosion from food acids.

Safety precautions

• Sharp Blade Hazard: Blades are extremely sharp and can cause cuts or amputation. Handle with caution.
• Only trained personnel should operate the equipment or perform maintenance.
• Always check for proper blade tightness before each use by strumming the dull side of the blade to identify a uniform vibration.
• If blades are broken, nicked, or dull, they must be replaced.
• Ensure the pusher head sits completely on the rubber bumpers before operation.

Operation

To operate the slicer:

1. Place the slicer on a stable table or counter. Position the unit so the pivot arm is over the edge to hold it securely.
2. Use the Tomato King Scooper to remove the stem scar from the tomato.
3. For best results, ensure tomatoes are clean and wet. Spray the plastic platform and blades with water to reduce friction.
4. Place the tomato top-down on the platform against the pusher head and blade.
5. With a quick push of the pusher head, push the tomato through the blades and catch the slices at the rear.

Adjustments

If the pusher head does not slide smoothly or if blades need tensioning:

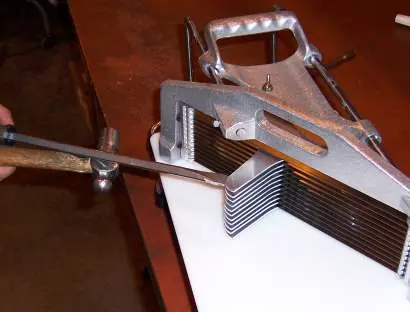

• Pusher Head Fingers: If fingers are nicked or burred, smooth them with a small flat file. If they do not slide effortlessly through the blades, insert a screwdriver between the slots in the pusher head assembly and gently tap it up or down to align the fingers.
• Blade Tensioning: Tighten blade screws in an alternating sequence (Top Right, Bottom Left, Bottom Right, Top Left), turning each screw 1/2 turn at a time until tight.

Replacing blade assembly

1. Allow ample room on a flat, dry surface.
2. For Tomato King: Close the pusher head so fingers are through the blades against the pin stop.
3. For Tomato Pro/Econo Pro: Pull the pusher head assembly back away from the blades against the back stop.
4. Remove the four blade block screws (two at each end). Retain the rubber seals mounted on the screws.
5. Install the new assembly, ensuring the sharp side faces the pusher head.
6. Never mix old and new blades in the same assembly.

Maintenance

• Cleaning: Rinse or spray the equipment with HOT water. You may immerse it in warm soapy water. Do not use scrub pads or wipe across the sharp edges. Do not use a dishwasher or harsh alkaline chemicals.
• Lubrication: Lubricate guide rods with mineral oil or Petro Gel after each use. Do not use cooking oil, as it will become sticky and permanently damage the pusher head bearings.
• Air Dry: Always let the equipment air dry after cleaning.
