User Manual for Xiaomi Mi 23.8" Desktop Monitor 1C
Quick guide for the Xiaomi Mi 23.8" Desktop Monitor 1C. Includes installation steps, button navigation, OSD menu settings, troubleshooting, and technical specifications.
Quick answers from the manual
Quick answer
- The Xiaomi Mi 23.8" Desktop Monitor 1C is a 1080p display with HDMI and VGA inputs. It is controlled via a 5-way navigation button on the back. Assembly requires attaching the stand to the monitor and base with the included screws. p. 2, 3, 4, 5
Key actions
- Assemble the stand and base using the provided screws. p. 3
- Use the 5-way navigation button to turn the monitor on/off and access the OSD menu. p. 5
First start
- Attach the stand to the monitor and base, connect the power adapter, and connect your video cable (HDMI or VGA). p. 3, 4
Show 4 more answers Show less
Problems and fixes
Unable to turn on
Check power connection and press the navigation button.
p. 7
No image
Check video cable connection and computer output.
p. 7Maintenance and reset
- You can restore the monitor to factory settings via the 'Reset' option in the Settings menu. p. 6
Technical specifications

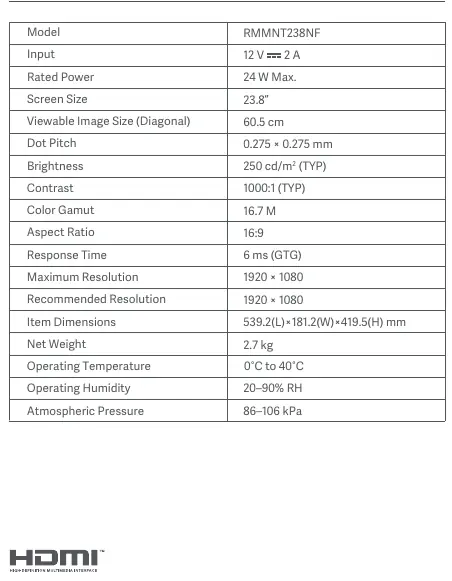

| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Resolution | 1920 x 1080 | Recommended and maximum resolution. | p. 8 |
| Refresh Rate | 60 Hz | Maximum refresh rate. | p. 4 |
| Response Time | 6 ms (GTG) | Pixel response time. | p. 8 |
| Power Input | 12 V 2 A | Required power input. | p. 8 |
Where to find it in the PDF
- Product Overview p. 2
- Installation p. 3
- How to Use p. 4, 5, 6
- Troubleshooting p. 7
- Specifications p. 8, 9
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
The Xiaomi Mi 23.8" Desktop Monitor 1C is a high-definition display designed for desktop use. This guide provides essential information for assembly, operation, and maintenance. Always ensure the monitor is placed on a stable surface and connected to a compatible power source.
Product Overview
The monitor features a 5-way navigation button for OSD control, a power port, an HDMI port, a VGA port, and a security slot. Accessories included in the box are the AC adapter, HDMI cable, stand, base, base screw, stand screws, and an L-shaped screwdriver.
Installation
- Stand Assembly: Install the stand onto the back of the monitor and fix it firmly using the provided stand screws.
- Base Connection: Connect the stand to the base and tighten the base screw securely.
- Angle Adjustment: You can adjust the monitor angle forward (5°) or backward (15°). Note: Always hold the base with one hand while adjusting the monitor with the other to prevent it from falling.
How to Use
Turning On/Off
- Turn on: Press the middle of the 5-way navigation button.
- Turn off: Press and hold the middle of the 5-way navigation button for 2 seconds.
5-way Navigation Button
The button allows you to navigate the OSD menu:
- Press right: Open menu / Select.
- Press up/down: Switch between menu options / Adjust values.
- Press left: Return.
Menu Description
The OSD menu allows you to adjust various settings:
- Brightness/Contrast: Adjust levels (0-100).
- Color Temp: Standard, Cool, Warm, or Custom.
- Smart Modes: Standard, ECO, Game, Movie, or Low Blue Light mode.
- Input: Switch between VGA and HDMI.
- Settings: Language, Overdrive (response time), Image/Color Auto-adjust (VGA only), Information, and Reset.
Troubleshooting
- Unable to turn on: Check if the AC adapter is plugged in properly and press the navigation button.
- Image is dark: Adjust brightness and contrast in the menu.
- Image jittery/rippled: Keep the monitor away from electronic devices causing interference.
- Indicator lit but no image: Ensure the computer is on, the graphics card is working, and the video cable is connected.
- Out of range: Use the recommended resolution settings (1920 x 1080).
Safety and Eye Health
To avoid eyestrain, keep the monitor at a distance of 50–70 cm (20–28 inches) from your eyes. Take regular breaks, look at distant objects, and stretch your body. Do not use the monitor in damp environments or block the heat dissipation vents.
Manufacturer information
Xiaomi Corporation
Practical help
Common problems
Unable to turn on
Ensure the AC adapter is securely connected and press the middle of the 5-way navigation button.
Image is dark
Adjust the brightness and contrast settings via the OSD menu.
Image is jittery or rippled
Move the monitor away from other electronic devices that may cause electrical interference.
Indicator is lit, but no image
Check that the computer is on, the graphics card is functioning, and the HDMI/VGA cable is properly connected.
Monitor displays 'Out of range'
Adjust the computer's resolution to the recommended 1920 x 1080 setting.
Before use
- Ensure the monitor is placed on a stable, flat surface.
- Verify the power supply voltage matches the monitor's requirements.
- Connect the stand to the monitor and base securely.
- Connect the appropriate video cable (HDMI or VGA) to your computer.
- Plug the AC adapter into a power outlet.
Show more Show less
Specs in practice
- Refresh Rate
- Maximum refresh rate is 60 Hz.
- Response Time
- 6 ms (GTG) indicates the speed at which pixels change color.
- Operating Temperature
- The monitor should be used in environments between 0°C and 40°C.
Images and diagrams
- The 5-way navigation button is located on the back of the monitor for OSD control.
- The stand assembly requires fixing the stand to the monitor and the base using the provided screws.
Model compatibility
- HDMI 1.4 input supported.
- VGA input supported.
- Security slot compatible with 3 x 7 mm cable locks.
