Installation and User Guide for Ximax Designer Radiators
A comprehensive installation and maintenance guide for Ximax designer radiators. Includes assembly steps, connection diagrams, filling and venting procedures, and troubleshooting tips for various models.
Quick answers from the manual
Quick answer
- The radiator must be installed by a qualified plumber. Ensure the wall is solid masonry for the supplied plugs. Follow the specific filling and venting procedure to ensure efficient operation. p. 1, 4
Key actions
- Mounting the radiator p. 1, 4
- Filling and venting p. 4
First start
- Filling and venting procedure p. 4
Show 4 more answers Show less
Problems and fixes
Radiator not heating properly
Vent the radiator or check if it was installed upside down (baffle orientation).
p. 4Maintenance and reset
- Topping up electric radiator p. 4
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Max. Operating pressure | 4-10 bar (model dependent) | Maximum pressure allowed to prevent damage. | p. 5, 6 |
Where to find it in the PDF
- Assembly instructions and tools p. 1
- Connection options and diagrams p. 2, 3
- Detailed assembly and troubleshooting p. 4
- Installation dimension tables p. 5, 6
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
This document provides installation and maintenance instructions for Ximax designer radiators. Key requirements include installation by a qualified plumber, ensuring the wall is solid masonry for the supplied wall plugs, and maintaining a minimum 150 mm clearance from the floor for efficient ventilation. Always check the packaging for completeness before starting.
Scope of delivery
- 1 pc. radiator
- 1 pc. Air vent (A)
- 1 pc. Blanking plug (B)
- 4 pcs. Masonry wall plug (C)
- 4 pcs. Screws (D)
- 4 pcs. Washers (E)
- 4 pcs. Wall bracket
Assembly instructions
Tools required: Phillips screwdriver, flat screwdriver, tape measure, wrench, drill bit, and drilling machine.
- Drill 4 holes with a depth of approx. 60 mm and a diameter of 8 mm using the dimensions for the main holes found in the assembly dimension table.
- Insert wall plugs (C) into the holes (only for solid walls).
- Attach the screw (D) and washer (E) to the bracket. Do not overtighten.
- Check for a baffle inside the horizontal tubes. If present, it must be at the bottom.
- Hang the radiator on the bracket.
- Mount the air valve (A) and blanking plug (B) in the upper threaded openings.
- Connect the flow and return using appropriate radiator valves (not included). Use PTFE tape or similar for watertight sealing.
Filling and venting
- Open the air vent.
- Slightly open the inlet valve (about 10%) while keeping the outlet valve closed.
- Allow the system to fill the radiator slowly.
- Once filled, close the air vent.
- Open both inlet and outlet valves fully and run the heating system for about 2 hours.
- Close both valves, open the air vent to release remaining air, then close the vent.
Care and use
After installation, ensure the system is thoroughly rinsed to flush out debris. Add a suitable inhibitor to the central heating system to prevent internal rust and limescale. Clean the radiator using a soft, damp cloth; do not use scouring pads or chemical cleaning agents.
Troubleshooting
If pipes are not warm, vent the radiator again. If tubes remain cold, the radiator may have been filled too quickly or requires draining and refilling. If the radiator provides patchy heat, it may be installed upside down; check the baffle orientation. For electric radiators, a small amount of water discharge upon first use is normal; if panels do not heat, the radiator may need to be topped up with water.
Practical help
Common problems
Radiator pipes are not warm
Check and vent the radiator again using the air vent.
Patchy heat or long heating time
The radiator may be installed upside down. Check the baffle orientation inside the tube.
Electric radiator not heating
The radiator may need to be topped up with water. Place on its side, undo the top side nut, and add water.
Before use
- Check packaging contents for completeness.
- Ensure you have the appropriate connection fittings.
- Verify there are no hidden water, electric, or gas lines behind the wall.
- Ensure the wall is solid masonry for the supplied wall plugs.
- Prepare a clean, dry environment for assembly.
- Ensure at least 150 mm distance between the floor and the bottom of the radiator.
Show more Show less
Specs in practice
- Max. Operating pressure
- The maximum pressure the radiator can withstand; exceeding this voids the warranty.
- Hub spacing (NA)
- The distance between the connection points for the radiator.
Images and diagrams

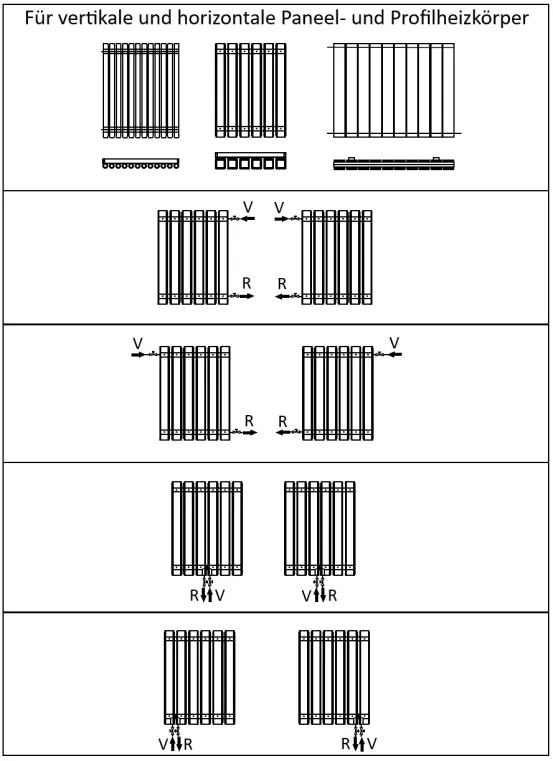

- Connection options: Shows various configurations for vertical and horizontal radiators.
- Assembly diagrams: Illustrates different bracket positioning methods (between cross tubes, on manifold, fixed bracket, fixed pins).
Model compatibility
- Supplied wall plugs are only suitable for solid masonry walls.
- For other wall types, obtain the correct wall fixings.
