Installation Guide for Acroma 12X Chandelier

Quick guide from the manual

This document provides essential instructions for the safe assembly and installation of the Acroma 12X chandelier. Before beginning, ensure the power is disconnected at the circuit breaker. The installation requires basic tools including a Phillips screwdriver, wire stripper, pliers, and safety goggles. Always work on a soft surface to prevent damage to the fixture finish.

Safety Information

• Always turn off the main power supply before starting installation or removing an existing fixture.
• Use tools with insulated handles and ladders made of wood or fiberglass.
• If you have any electrical questions, consult a qualified electrician.
• Do not attempt to modify the fixture or use it in a way not specified in the manual.

Assembly Instructions

The assembly process involves preparing the fixture structure and then mounting it to the ceiling junction box.

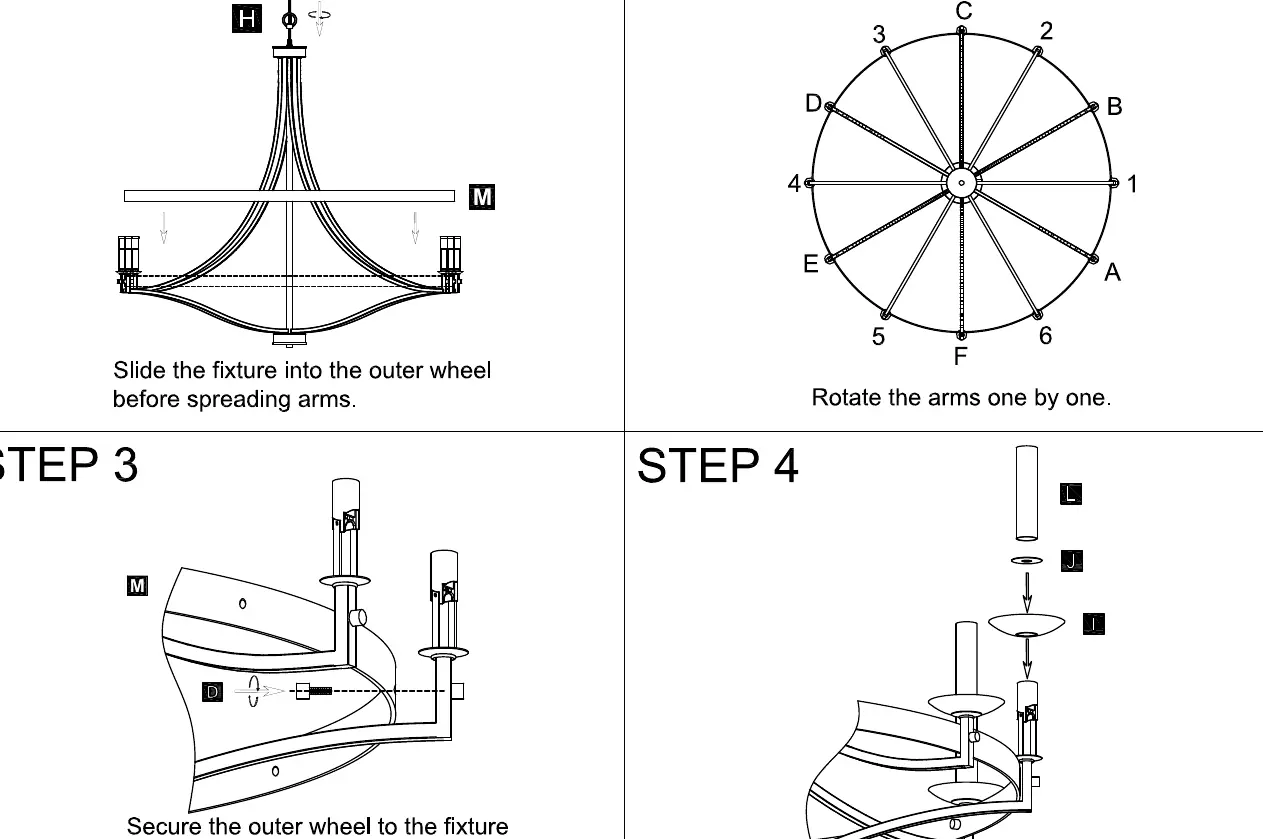

1. Fixture Assembly: Slide the fixture into the outer wheel (M) and rotate the arms into position. Secure the outer wheel to the fixture using the provided finials (D).
2. Component Setup: Install the socket sleeves (L), rubber pads (J), and covers (I) onto the light sockets.
3. Mounting: Attach the mounting plate (A) to the junction box using the support screws (B).
4. Hanging: Assemble the chain (F) with the chain end loops (G) and connect it to the fixture loop (H) and the canopy (E).

Wiring

Connect the fixture wires to the supply wires using the provided wire connectors (C):

• White supply wire to the white or identified fixture wire.
• Black supply wire to the plain or black fixture wire.
• Bare or green ground wire from the supply to the fixture ground wire or green ground screw.
