User Manual for AcuRite 06008RM 3-in-1 Weather Sensor

Quick guide from the manual

This document provides essential instructions for setting up and installing your AcuRite 3-in-1 Weather Sensor. Proper placement is critical for accurate wind, temperature, and humidity measurements. Ensure the sensor is mounted at least 5 ft (1.5 m) off the ground and away from obstructions, heat sources, and humidity sources.

Package Contents

• 3-in-1 Weather Sensor (Model 06008RM)
• Mounting Bracket
• Mounting Hardware (4 screws, 4 anchors)
• Mounting Sleeve

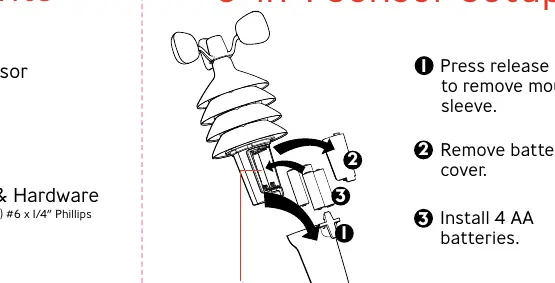

Sensor Setup

Before mounting, prepare the sensor for operation:

1. Press the release lever to remove the mounting sleeve.
2. Remove the battery cover.
3. Install 4 AA batteries.
4. If syncing with a display unit (not included), ensure the A-B-C switch located in the battery compartment matches the setting on your display unit.

Installation

For optimal performance, ensure no obstructions are above or around the sensor. The sensor transmits a wireless signal up to 330 ft (100 m), though this range may be reduced by thick walls or metal surfaces.

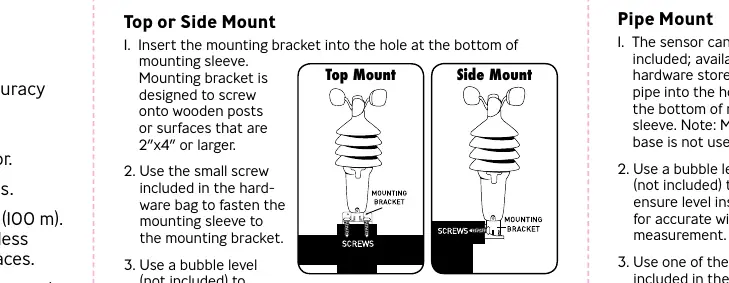

Top or Side Mount

1. Insert the mounting bracket into the hole at the bottom of the mounting sleeve.
2. Use the small screw included in the hardware bag to fasten the mounting sleeve to the mounting bracket.
3. Use a bubble level (not included) to ensure level installation.
4. Fasten the mounting bracket to a wooden post or surface (2"x4" or larger) using 2 screws.

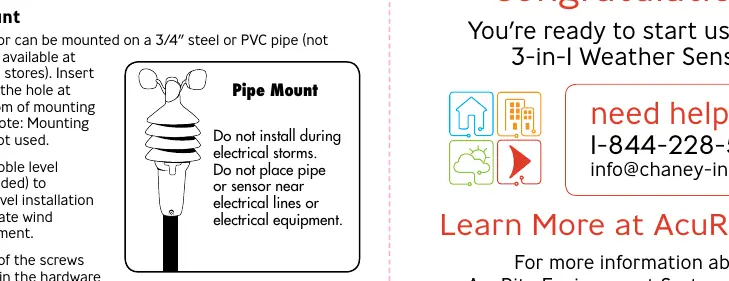

Pipe Mount

1. The sensor can be mounted on a 3/4 inch steel or PVC pipe (available at hardware stores).
2. Insert the pipe into the hole at the bottom of the mounting sleeve. Note: The mounting base is not used for this method.
3. Use a bubble level to ensure level installation for accurate wind measurement.
4. Use one of the screws included in the hardware bag to fasten the mounting sleeve securely to the pipe.

Specifications

• Power: 4 x AA alkaline or lithium batteries
• Temperature Range: -40°F to 158°F (-40°C to 70°C)
• Humidity Range: 1% to 99%
• Wind Speed: 0 to 99 mph (0 to 159 kph)
• Wireless Range: 330 ft (100 m) depending on home construction materials
• Operating Frequency: 433 MHz

Warranty

The product includes a limited one-year warranty. It is recommended to register your product online at www.AcuRite.com to receive warranty protection. Retain your original proof of purchase for warranty claims.
