User Manual for Adler AD 1246 1.8L Electric Kettle

Quick guide for the Adler AD 1246 1.8L Electric Kettle. Includes usage instructions, safety warnings, descaling procedures, and technical specifications.

Table of contents

Manual images

Click an image to enlarge

Quick guide from the manual

Before using your Adler AD 1246 electric kettle for the first time, fill it with water to the MAX level, boil it, and pour it out. Repeat this process three times to remove any factory odor. Always ensure the kettle is placed on a flat, heat-resistant surface and that the heating element is fully immersed in water before switching it on. Never leave the kettle unattended while in use and ensure the lid is closed during the boiling process for the automatic shut-off to function correctly.

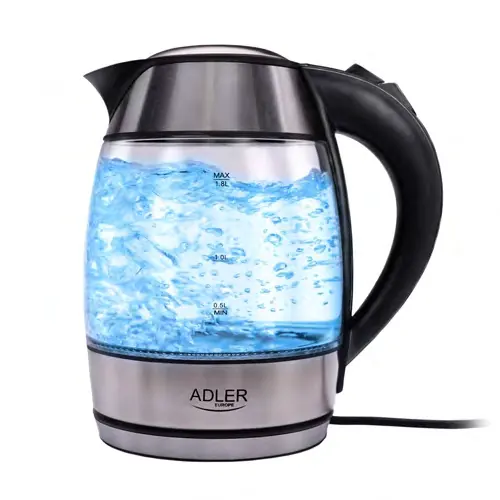

Adler AD 1246 Electric Kettle
Adler AD 1246 Electric Kettle

Description of the device

The kettle consists of the following main components: housing, ON/OFF switch, indicator lamp, rotating base, lid, handle, and lid unlock button.

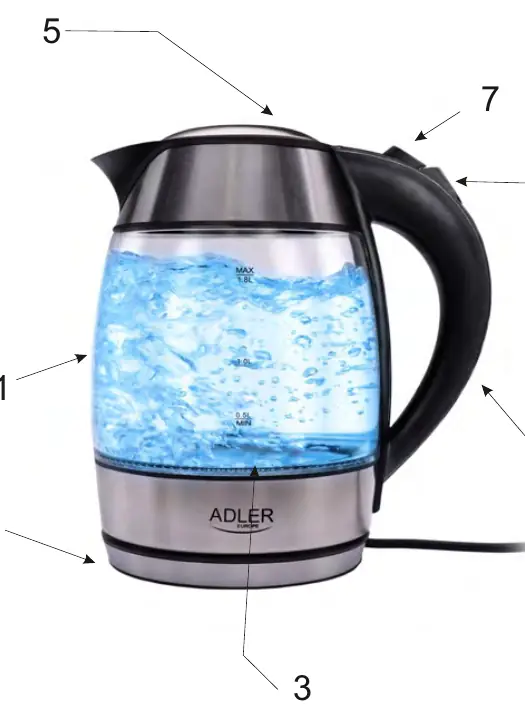

Kettle components diagram
Kettle components diagram

Usage

To use the kettle, fill it with fresh water between the MIN and MAX levels. Place the kettle on the provided base, plug it into a 220-240V ~50/60Hz outlet, and press the ON/OFF switch. The indicator lamp will light up. The kettle will switch off automatically once the water has boiled. If you wish to switch it off manually before boiling, press the ON/OFF switch again.

Safety instructions

  • Never switch on the kettle without water.
  • Do not open the lid while the water is boiling or immediately after, as escaping steam can cause burns.
  • Always use the handle to move the kettle.
  • Do not fill above the MAX level or below the MIN level.
  • Keep the kettle away from children and do not allow them to play with it.
  • If the kettle is overfilled, boiling water may spurt out.
  • Use only with the provided base.

Cleaning and maintenance

Regularly descale the kettle to prevent damage to the heating element and ensure longevity. Use appropriate descaling agents available in stores. Do not use aggressive detergents on the housing. The base should not be washed directly in water; wipe it with a dry cloth.

Technical data

Capacity: 1.8LVoltage: 220-240V ~50/60HzPower: 1850-2200W

Manufacturer information

Adler Europe Group

Brand profile

Practical help

Common problems

Kettle switches off automatically

This may happen if the kettle is empty or has insufficient water. Wait a few minutes for it to cool down, then refill with an adequate amount of water and switch it on again.

Unpleasant factory smell

Boil water in the kettle three times, discarding the water each time, to remove any manufacturing odors.

Before use

  • Ensure the heating plate is fully immersed in water
  • Place the base on a flat, even, and heat-resistant surface
  • Fill the kettle between the MIN and MAX levels
  • Ensure the lid is closed before boiling
  • Check that the kettle is switched off before removing it from the base

Images and diagrams

  • 2: ON/OFF switch
  • 3: Indicator lamp
  • 4: Rotating base
  • 7: Lid unlock

Model compatibility

  • The kettle must only be used with the provided base.
