User Manual for Adler AD 7342 Rechargeable Desk Fan
Quick user guide for the Adler AD 7342 rechargeable desk fan. Includes charging instructions, speed settings, safety precautions, and technical specifications.
Table of contents
Quick guide from the manual
The Adler AD 7342 is a rechargeable desk fan designed for personal use. Before first use, the battery must be fully charged. The device features three speed settings and is charged via a USB Type-C port.
Safety Conditions
- This appliance may be used by children over 8 years of age and persons with limited physical, sensory, or mental abilities under supervision.
- Do not use the product near hot surfaces, kitchen appliances, or combustible materials.
- Do not place the device near open flames or fire sources.
- Use only in a dry place.
- If water is spilled on the device, unplug it and let it dry for 24 hours before use.
- Do not block the front or rear grilles.
- Do not immerse the device in water or other liquids.
Before First Use and Charging
The battery must be fully charged before the first use. Use only the original USB cable provided in the package.
- Ensure the power source is compatible with the device (USB 5V 1A).
- Connect the provided power cord to the USB Type-C port on the device.
- During charging, the LED indicator flashes red.
- The LED indicator lights up red continuously when the battery is fully charged.

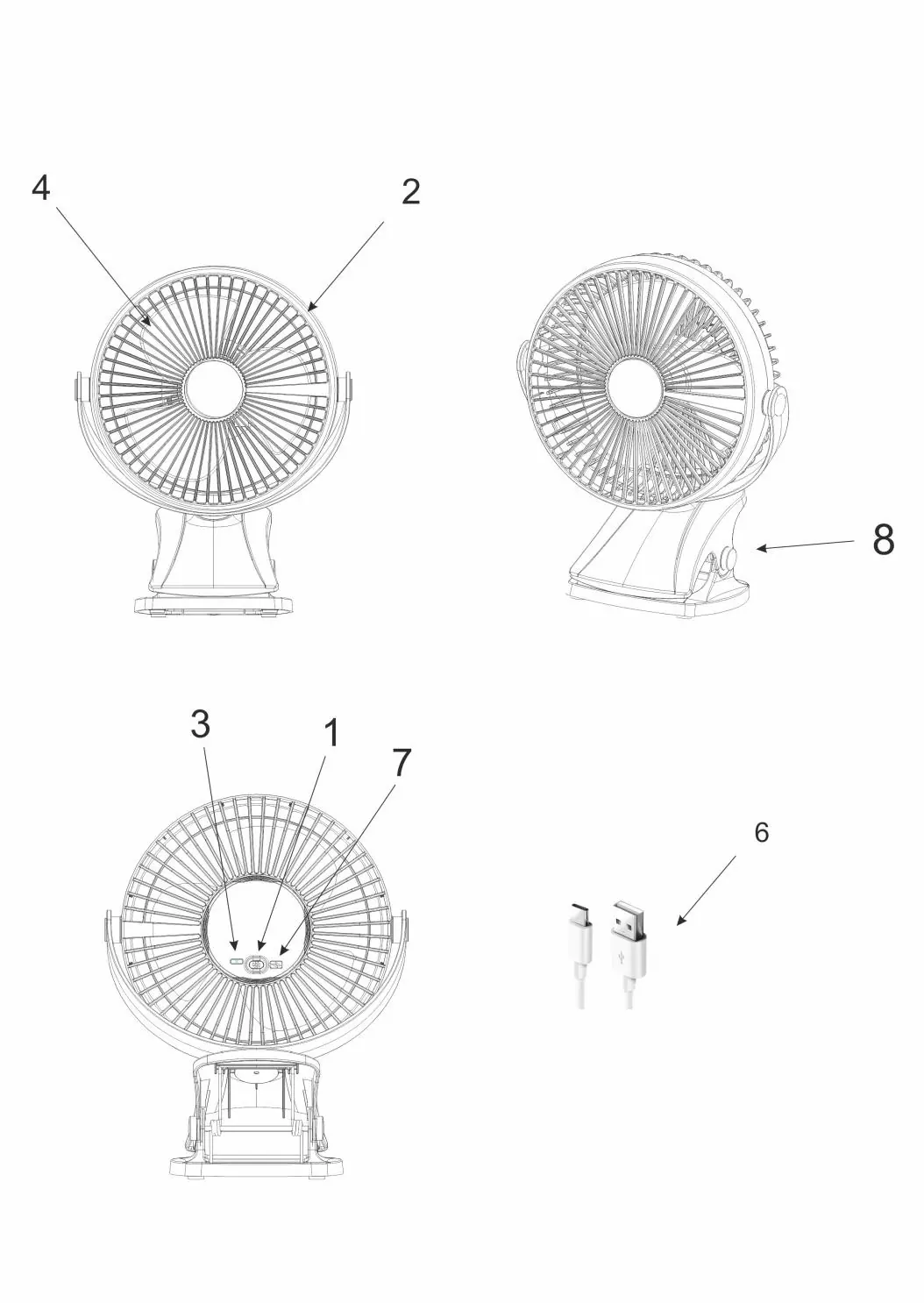

Product Description
The device consists of the following components:
- On/off and fan speed button
- Housing
- USB Type-C socket
- Propeller
- USB connector (A connector and type C plug)
- LED indicator
- Mounting clamp / stand
Using the Device
The device is operated using the on/off button:
- Press once: Turn on the device and set to low speed.
- Press twice: Set to medium speed.
- Press three times: Set to high speed.
- Press four times: Turn off the device.
Battery Safety
Improper use of batteries may cause electrolyte leakage, overheating, or explosion. To reduce the risk of injury:
- Do not heat, open, puncture, destroy, or throw batteries into a fire.
- Do not touch battery terminals with metal objects.
- If electrolyte leaks, avoid contact with skin or clothing. If contact occurs, flush the area immediately with water.
- Charge only with the charger supplied with the product or one suitable for the battery type.
Technical Specifications
Power Input: USB 5V 1ABattery: 3.7V 3000mAh Lithium batteryPower: 5WDimensions: 200x125x280mm
Manufacturer information
Adler Europe Group
Practical help
Common problems
Device does not turn on
Ensure the battery is fully charged using the provided USB cable.
LED indicator does not light up during charging
Check if the power source is compatible and the cable is securely connected to the USB Type-C port.
Battery life is short
Ensure the battery is fully charged before use. Avoid exposing the device to extreme temperatures.
Before use
- Ensure the battery is fully charged before first use.
- Check that the power source is compatible (USB 5V 1A).
- Place the device on a stable, higher surface like a table or countertop.
- Ensure the front and rear grilles are not blocked.
Images and diagrams
- The device features a fan head with a propeller, a mounting clamp/stand, and a USB Type-C charging port.
- The control button is used for both power and speed settings.
Model compatibility
- Use only the original USB cable provided in the package.
- Charge only with the charger supplied with the product or one suitable for the battery type.
