User Guide for Adtran Combo PON D2 SFP+ Transceiver

Quick start guide and technical specifications for the Adtran Combo PON D2 SFP+ transceiver. Includes installation steps, safety precautions, and environmental requirements.

Table of contents

Quick guide from the manual

This document provides essential installation and safety information for the Adtran Combo PON D2 SFP+ transceiver. Key requirements include strict adherence to ESD (Electrostatic Discharge) protocols and proper grounding of the host system.

Installation: Insert into the SFP+ cage until an audible click is heard.
Removal: Rotate the latch away from the SFP+ to release it.
Safety: Always use an antistatic wrist strap and grounded mat when handling.
Environment: Designed for outdoor use with an operating temperature range of -40°C to +70°C.

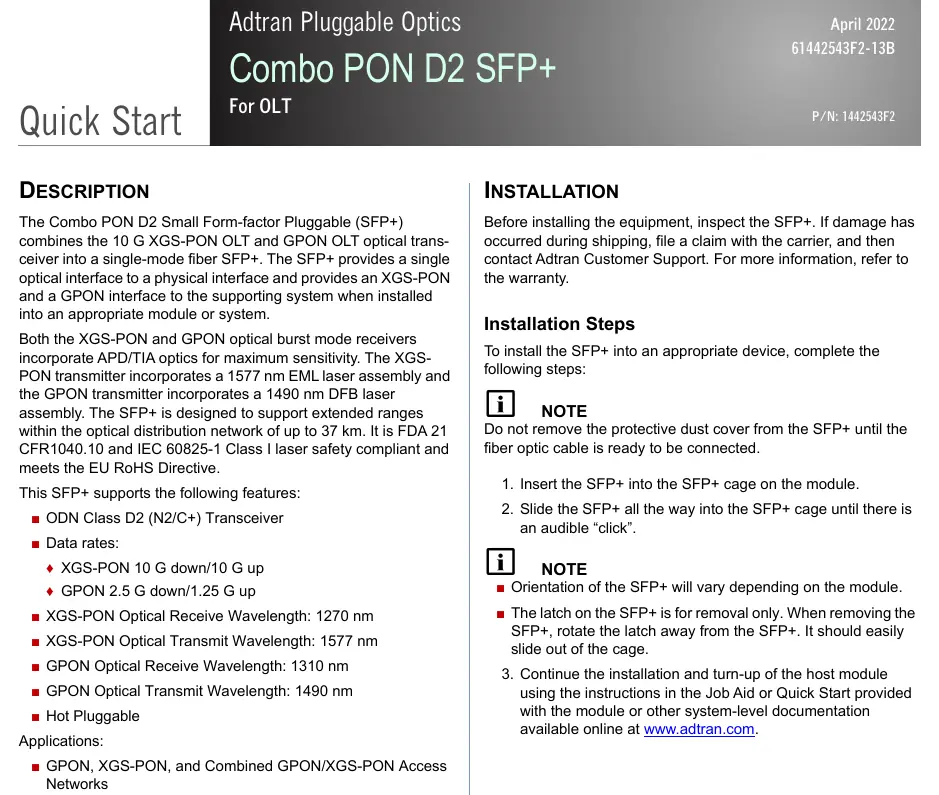

Product Description

The Combo PON D2 Small Form-factor Pluggable (SFP+) combines 10 G XGS-PON OLT and GPON OLT optical transceivers into a single-mode fiber SFP+. It is designed for extended ranges up to 37 km and is compliant with FDA 21 CFR 1040.10 and IEC 60825-1 Class I laser safety standards.

Installation Steps

Inspect the SFP+ for any damage that may have occurred during shipping.
Do not remove the protective dust cover until the fiber optic cable is ready to be connected.
Insert the SFP+ into the SFP+ cage on the module.
Slide the SFP+ all the way into the cage until you hear an audible click.
Removal: To remove, rotate the latch away from the SFP+ and slide it out of the cage.

Safety and Regulatory

This device is sensitive to electrostatic discharge. Always wear an antistatic discharge wrist strap and work on an electrically grounded antistatic mat. The product is designed for installation in either a Common Bonding Network (CBN) or Isolated Bonding Network (IBN). If the host system has a protective earth (PE) terminal, it must be connected to ensure proper grounding of the optical module.

Technical Specifications

Data Rates: 10 G (XGS-PON) and 2.5 G/1.25 G (GPON).
Wavelengths: 1577 nm (XGS-PON Tx), 1270 nm (XGS-PON Rx), 1490 nm (GPON Tx), 1310 nm (GPON Rx).
Operating Temperature: -40°C to +70°C.
Storage Temperature: -40°C to +85°C.
Relative Humidity: 5% to 95%, non-condensing.

Practical help

Common problems

ESD damage to electronic components

Always wear an antistatic discharge wrist strap and work on an electrically grounded antistatic mat.

Difficulty removing the SFP+ module

Rotate the latch away from the SFP+ module to release it before sliding it out of the cage.

Installation failure

Ensure the module is inserted into the SFP+ cage until an audible click is heard.

Before use

Inspect the SFP+ for shipping damage.
Ensure the fiber optic cable is ready before removing the dust cover.
Verify the host system has a protective earth (PE) terminal if required.
Prepare an antistatic wrist strap and grounded mat.

Specs in practice

XGS-PON Data Rate: 10 Gbps down / 10 Gbps up.
GPON Data Rate: 2.5 Gbps down / 1.25 Gbps up.
Operating Temperature: -40°C to +70°C (Outdoor environment).
Max Distance: Up to 37 km.

Model compatibility

Not compatible with SFP+ MSA.
Use only pluggable optics supplied by Adtran.
Designed for deployment in GR-3108-CORE environmental Class 1, 2, or 3.
