User Manual for Artika Elsa LED Flush Mount Light
Get started with your Artika Elsa LED Flush Mount Light. This guide covers installation, wiring, color temperature settings, and safety instructions for models 13FM-EL5C-BL10TE10-J and 13FM-EL5C-WH10TE10-J.
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
The Artika Elsa LED Flush Mount Light is designed for indoor, residential use only. Before beginning installation, ensure the main electrical supply is turned off at the circuit breaker. The installation requires a screwdriver and should be performed by a certified electrician if required by local building codes. If you intend to use a dimmer switch, it must be compatible with LED lighting.

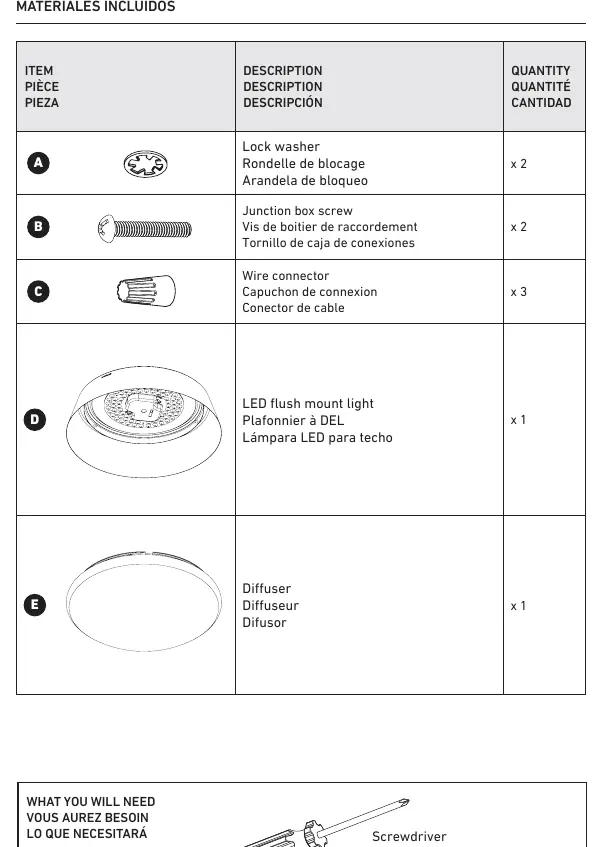

Included Hardware
- Lock washers (x2)
- Junction box screws (x2)
- Wire connectors (x3)
- LED flush mount light (x1)
- Diffuser (x1)
Installation
1. Mounting the Fixture: Secure the fixture base to the junction box using the provided junction box screws and lock washers.
2. Wiring Connection: Connect the fixture wires to the house wires using the provided wire connectors. Match the wires as follows: Black (L) to Black (L), White (N) to White (N), and Ground (GND) to the Ground wire.
3. Final Assembly: Once the wiring is secure, attach the diffuser to the fixture base by rotating it into place.
Selectable White Technology

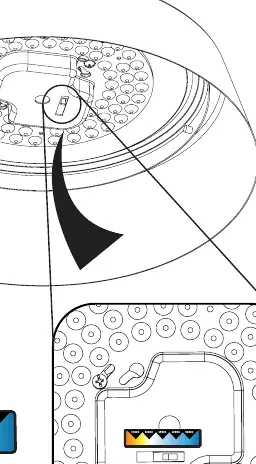

This fixture features Selectable White Technology, allowing you to adjust the color temperature of the light. Locate the switch on the fixture base to select your preferred color temperature, ranging from 2700K (warm) to 5000K (cool).
Safety and Maintenance
Always turn off the power at the breaker before performing any maintenance. Do not use harsh chemicals or abrasive cleaners on the fixture surface. This product is for indoor use only.
Warranty and Support
Artika For Living Inc. offers a five-year limited warranty against manufacturing defects for residential use. The warranty is non-transferable and requires the original sales receipt. For support, you can contact Artika at 1-866-661-9606 or via email at [email protected]. Customer service is available Monday to Friday, 9 am - 5 pm EST.
Manufacturer information
Artika
Practical help
Common problems
Light does not turn on after installation
Ensure the circuit breaker is turned on and all wire connections are secure and correctly matched.
Light flickers
Verify that the dimmer switch being used is compatible with LED lights.
Before use
- Turn off the main electrical supply at the fuse box or circuit breaker.
- Ensure you have a screwdriver available.
- Verify that your dimmer switch (if applicable) is LED compatible.
- Confirm the installation location is indoors and suitable for a flush mount fixture.
Specs in practice
- Selectable White Technology
- Allows adjustment of the light color temperature between 2700K and 5000K using a built-in switch.
Images and diagrams

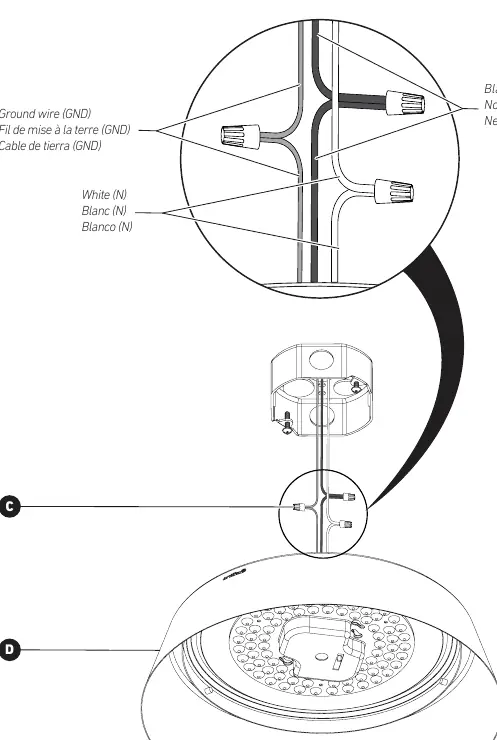

- The wiring diagram illustrates the correct connection of the Black (L), White (N), and Ground (GND) wires using the provided wire connectors.

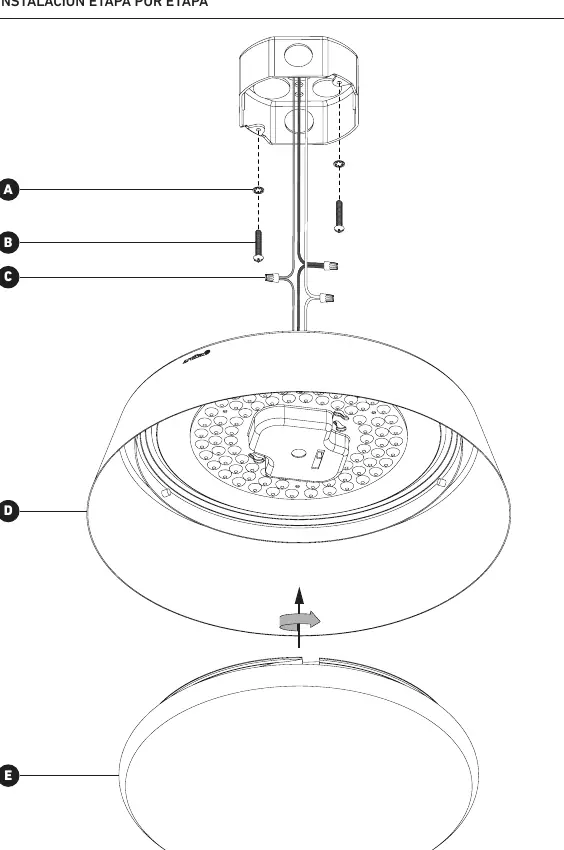

- The installation steps show the sequence of mounting the fixture base to the junction box and attaching the diffuser.
Model compatibility
- For indoor use only.
- For residential use only.
- If using a dimmer, it must be LED compatible.
