User Manual for Artika Rayker 12 LED Flush Mount Light
Quick guide for the Artika Rayker 12 LED Flush Mount Light. Includes installation steps, wiring instructions, color temperature settings, and safety warnings.
Table of contents
Manual images
Click an image to enlargeImportant Information
The Artika Rayker 12 LED Flush Mount Light is designed for indoor, residential use only. Before installation, ensure the power is turned off at the circuit breaker. If you intend to use a dimmer switch, it must be LED compatible to ensure proper operation.
Safety Warnings
- Risk of electrical shock: Always turn off the main electrical supply from the fuse box or circuit breaker before installing the unit or performing maintenance.
- Professional installation: It is recommended that this product be installed by a certified electrician. In some regions, this is a legal requirement.
- Damaged cords: If the external flexible cable is damaged, it must be replaced by the manufacturer, a service agent, or a qualified person to avoid hazards.
Included Hardware
- Lock washers (x2)
- Junction box screws (x2)
- Wire connectors (x3)
- LED ceiling light with canopy
- Diffuser and trim
- Interchangeable color trims (x3)
Installation
Step 1: Mounting the BaseSecure the LED ceiling light base to the junction box using the provided junction box screws and lock washers. Ensure the base is firmly attached.
Step 2: Wiring ConnectionConnect the wires using the provided wire connectors. Match the wires as follows: Ground wire (green/bare) to ground, White (neutral) to white, and Black (live) to black.
Step 3: Securing the LightOnce wired, rotate the light fixture base to secure it into position against the ceiling.
Step 4: Final InstallationAttach the diffuser to the base by rotating it into place.

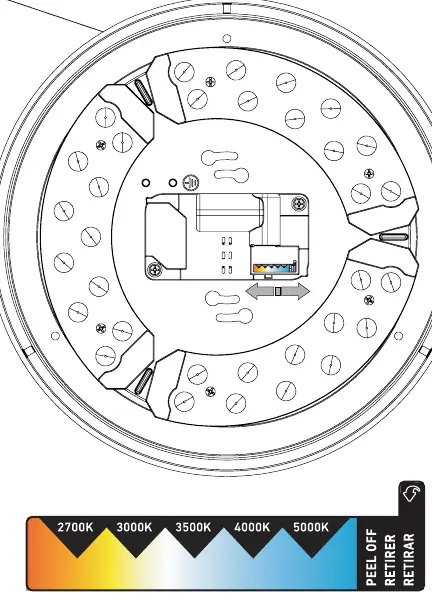

Color Temperature Adjustment
The fixture features Selectable White Technology. You can adjust the color temperature by accessing the switch on the light fixture base. Options typically range from 2700K (warm) to 5000K (cool). Ensure the protective film is removed if present.

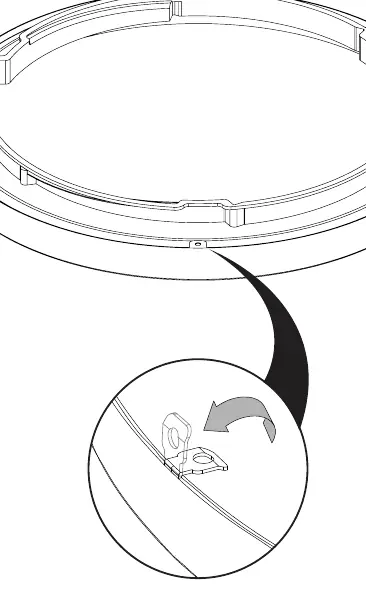

Interchangeable Trim Installation
To change the look of your fixture, you can install the interchangeable color trims. Align the trim with the fixture and secure it using the provided clips or locking mechanism as indicated in the installation steps.
Warranty and Support
Artika For Living Inc. offers a five-year limited warranty on manufacturing defects for residential use. The warranty is non-transferable and requires the original sales receipt. For support, contact Artika at 1-866-661-9606 or email [email protected]. Customer service is available Monday to Friday, 9 am to 5 pm EST.
Manufacturer information
Artika
Practical help
Common problems
Light does not turn on
Check that the circuit breaker is on and verify all wiring connections are secure.
Flickering or buzzing with dimmer
Ensure the dimmer switch installed is specifically compatible with LED lighting.
Before use
- Turn off power at the circuit breaker panel.
- Verify all hardware (screws, washers, connectors) is present.
- Ensure the junction box is compatible and secure.
- Have a screwdriver ready for installation.
- Confirm the installation location is indoors.
Specs in practice
- Selectable White Technology
- Allows the user to choose between different color temperatures (2700K-5000K) via a switch on the fixture.
- LED Compatible Dimmer
- Required if you wish to dim the light; standard incandescent dimmers may cause malfunction.
Images and diagrams

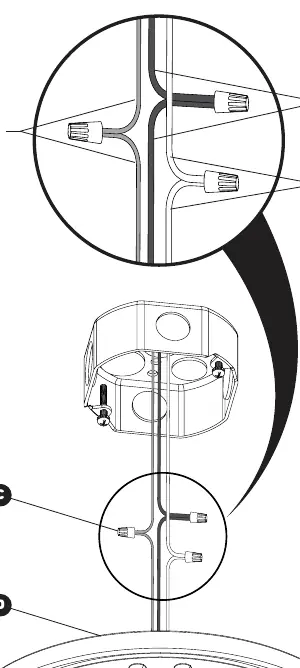

- The wiring diagram illustrates connecting the house ground wire to the fixture ground, white neutral to white, and black live to black using wire connectors.
Model compatibility
- For indoor use only.
- For residential use only.
- Requires LED compatible dimmer.
