Artika Knox 13 LED Ceiling Light
Installation and usage guide for the Artika Knox 13 LED Ceiling Light (13FM-KN-WT10TE10-J). Includes step-by-step mounting instructions, wiring diagrams, and safety precautions.
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
The Artika Knox 13 LED Ceiling Light is designed for indoor residential use. Before installation, ensure the main power is turned off at the circuit breaker. If you intend to use a dimmer switch, it must be LED compatible to prevent flickering or damage to the fixture. Professional installation by a certified electrician is recommended.

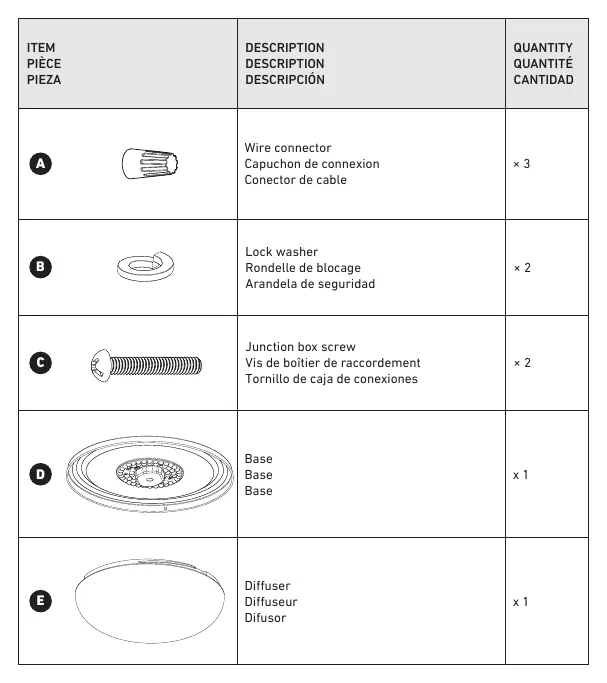

Included hardware
- Wire connectors (x3)
- Lock washers (x2)
- Junction box screws (x2)
- Base (x1)
- Diffuser (x1)
You will also need a screwdriver for the installation.
Installation steps
Mounting the base
- Turn off the main electrical supply at the fuse box or circuit breaker.
- Secure the base to the junction box using the provided junction box screws and lock washers.

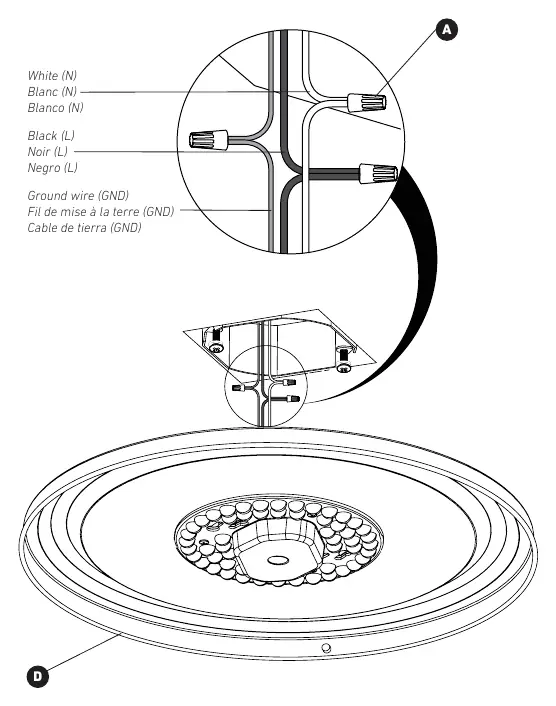

Wiring connection
- Connect the white wire from the fixture to the white (neutral) wire from the junction box using a wire connector.
- Connect the black wire from the fixture to the black (line) wire from the junction box using a wire connector.
- Connect the ground wire from the fixture to the ground wire from the junction box using a wire connector.

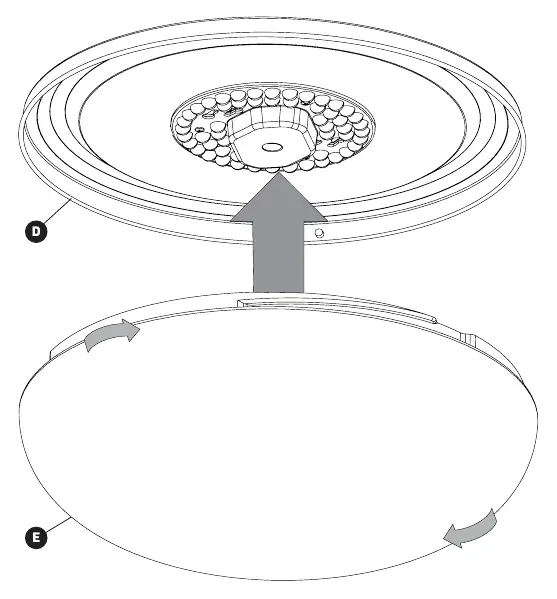

Diffuser installation
- Once the base is securely mounted and wired, attach the diffuser to the base by rotating it into position.
Safety and warnings
- Risk of electrical shock: Always turn off the circuit breaker before installing or performing maintenance.
- Indoor use only: Do not use this product outdoors.
- Dimmer compatibility: Only use with LED-compatible dimmers.
- Compliance: This device complies with Part 15 of the FCC Rules and Canada IC regulations.
Warranty and support
Artika For Living Inc. offers a five-year limited warranty on manufacturing defects for residential use. The warranty is non-transferable and requires the original sales receipt. For support, contact Artika at 1-866-661-9606 or email [email protected]. Customer service is available Monday to Friday, 9 am - 5 pm EST.
Manufacturer information
Artika
Practical help
Common problems
Light does not turn on
Check that the circuit breaker is on and verify all wire connections are secure.
Light flickers
Ensure the dimmer switch being used is specifically rated as LED compatible.
Before use
- Turn off main power at the circuit breaker.
- Verify you have all included hardware (A, B, C, D, E).
- Ensure you have a screwdriver.
- Confirm the dimmer switch is LED compatible if applicable.
Specs in practice
- LED compatible
- The fixture requires a specific type of dimmer switch designed for LED loads to function correctly.
- Indoor use only
- The fixture is not weather-resistant and must not be installed in outdoor or wet locations.
Images and diagrams
- The wiring diagram illustrates connecting the fixture's white wire to the house neutral, black wire to the house line, and the ground wire to the house ground using the provided wire connectors.
Model compatibility
- Requires LED compatible dimmer switch.
- For residential indoor use only.
