User Manual for Arzum Panini Color Grill and Sandwich Maker
Comprehensive user guide for the Arzum Panini Color Grill and Sandwich Maker (AR 2013-AG / AR 2013-DM). Includes setup, cooking functions, cleaning instructions, and safety guidelines.
PDF source: TR · summary: English
Quick answers from the manual
Quick answer
- The Arzum Panini Color is a versatile grill and sandwich maker. Preheat until the green ready light illuminates before cooking. It features removable granite-effect plates and can be used as a sandwich press, double-sided grill, or opened 180° for a party grill. p. 16, 17
Key actions
- Preheating p. 16
- Cleaning p. 18
First start
- Wash plates, attach them, oil slightly, plug in, set to max, and let it heat up (smoke/odor is normal). p. 15
Show 3 more answers Show less
Problems and fixes
Smoke or odor on first use
This is normal and will not recur after a while.
p. 15Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Power | 1800 W | Power consumption | p. 11, 21 |
| Voltage | 220-240 V ~ 50-60 Hz | Operating voltage | p. 11, 21 |
Where to find it in the PDF
- Product Diagram p. 12
- Cooking Functions p. 16, 17
- Cleaning and Care p. 18
Table of contents
Manual images
Click an image to enlargeImportant Information
The Arzum Panini Color Grill and Sandwich Maker is designed for household use only. Before first use, ensure the voltage matches your local supply. The appliance features removable, non-stick granite-effect plates and adjustable temperature control. Always preheat the appliance until the green ready light illuminates before cooking.
Product Overview
- 180° rotational top body: Allows for party grill position.
- Variable temperature button: Adjusts heat levels.
- Ready light (green): Indicates the appliance is at the set temperature.
- Power light (red): Indicates the appliance is switched on.
- Security latch: Locks the device for storage or transport.
Before First Use
- Rinse the cooking plates with tepid water and a small amount of dishwashing detergent.
- Attach the plates to the appliance; a click sound confirms they are properly fitted.
- We recommend lightly oiling the surfaces before the first use.
- Connect to a power outlet and set the temperature to maximum. A slight smoke or odor may occur; this is normal and will dissipate.
Cooking Functions
Sandwich and Toast
Preheat the appliance until the green ready light turns on. Butter the outside of the bread (optional, as plates are non-stick) and close the lid gently. Cooking time depends on ingredients and personal taste.
Double-Sided Grill
Preheat the appliance. Place food on the lower cooking surface and close the upper cover. You do not need to turn the food.
One-Sided Grill
Preheat the appliance. Pull the upper cover upright and open it to 90°. You can grill on the lower surface without the top cover touching the food.
Party Grill (Barbecue)
To increase the cooking area, open the upper cover 180° backward. Adjust the upper leg pins to the top point of the lower leg pins to stabilize the cover in the flat position. Use both surfaces simultaneously.
Cleaning and Maintenance
Always unplug the appliance and allow it to cool completely before cleaning.
- Plates: Remove by pressing the clips. They can be washed with a soft cloth, plastic brush, or in a dishwasher.
- Base: Wipe the plastic and metal parts with a damp, soapy cloth.
- Warning: Never immerse the main unit in water. Do not use metal brushes, steel wool, or abrasive cleaners, as these will damage the non-stick coating.
Safety Guidelines
- Never touch the outer surfaces during operation; use the handle.
- Keep the appliance and cord out of reach of children under 8 years.
- Do not use metal utensils (tongs, forks, knives) on the cooking plates.
- Ensure the power cord is kept away from the cooking plates during use.
Manufacturer information
Arzum Elektrikli Ev Aletleri San. ve Tic. A.Ş.
Practical help
Common problems
Smoke or odor during first use
This is normal and will disappear after a short time.
Food sticking to plates
Ensure you are not using metal utensils. Use wooden or plastic tools only.
Plates not fitting correctly
Ensure you hear a 'click' sound when attaching the plates to the clips.
Before use
- Check that local voltage matches the appliance rating.
- Wash cooking plates with warm soapy water.
- Attach plates securely until they click.
- Lightly oil the cooking surfaces.
- Preheat until the green ready light illuminates.
Show more Show less

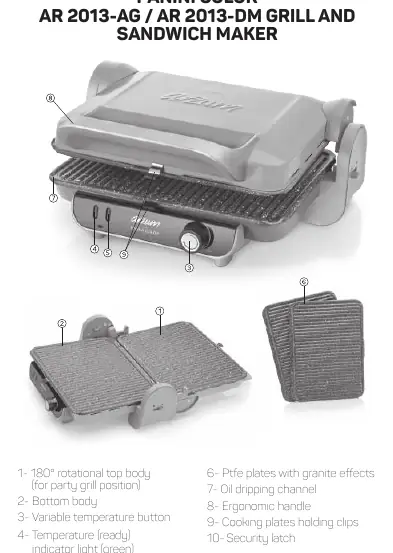

Images and diagrams
- 1: 180° rotational top body for party grill.
- 3: Variable temperature control knob.
- 4: Green ready light.
- 5: Red power light.
- 10: Security latch for locking.
Model compatibility
- For household use only; not for commercial or industrial purposes.
- Use only on flat, stable, and heat-resistant surfaces.
