User Manual for Avide Siraz Series Outdoor Wall Lamp

Quick guide from the manual

The Avide Siraz Series outdoor wall lamp requires professional installation. The process involves disconnecting the power supply, drilling holes while avoiding existing wiring or pipes, mounting the fixture, connecting the electrical wires, and restoring power. Ensure the lamp is not covered and maintains a minimum distance of 0.5m from the illuminated surface.

Safety instructions

Warning: Installation, maintenance, and repairs must be performed by a qualified person. Failure to do so may void the warranty and poses a risk of electric shock.

• Always disconnect the power supply before starting any installation or maintenance work.
• Do not install the product if it is damaged.
• The lamp must not be covered due to fire risk.
• Ensure a minimum distance of 0.5m from the illuminated surface.
• Keep the lamp and its accessories away from children as they contain small parts.
• This is a Class I device and must be connected to a protective earth (ground) conductor (yellow-green wire).

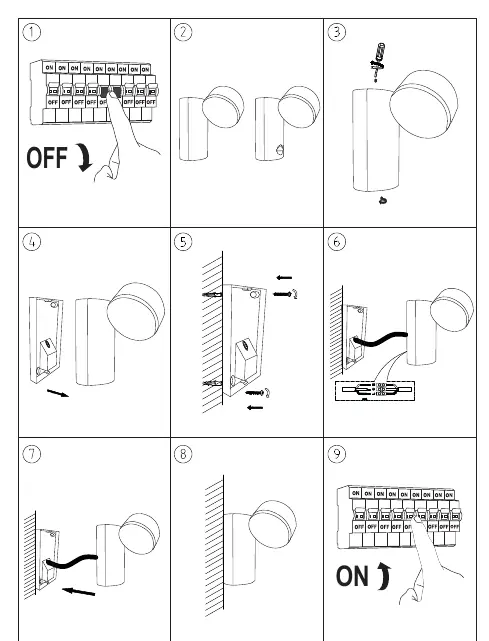

Installation

Follow these steps for installation:

1. Turn off the main power supply or fuse.
2. Prepare the mounting location.
3. Drill holes for the fixture, ensuring no pipes or wires are damaged in the wall.
4. Mount the fixture base to the wall.
5. Connect the electrical wires according to local regulations.
6. Secure the lamp to the base.
7. Turn the power back on.

Maintenance and cleaning

Before cleaning, ensure the power is disconnected. Clean the outer surface of the luminaire using a slightly moistened cloth. Do not use aggressive cleaning agents. Ensure that no water enters the interior of the lamp or comes into contact with electrical components.

Disposal

Do not dispose of this product with household waste. It contains components that may be hazardous to the environment. Please dispose of the product at a designated facility for electronic waste collection or return it to the point of sale.
