User Manual for Bauer 1791C-B1 and 1792C-B1 Cordless Drill
Comprehensive user manual for the Bauer 20V Hypermax Lithium 1/2" Compact Drill/Driver (1791C-B1) and Hammer Drill (1792C-B1). Includes safety instructions, setup, operation, maintenance, and troubleshooting.
Quick answers from the manual
Quick answer
- This manual covers the operation, safety, and maintenance of the Bauer 20V Cordless Drill models 1791C-B1 and 1792C-B1. p. 1
Key actions
- Charge the battery pack before first use. p. 8
- Remove the battery pack before changing bits or storing the tool. p. 8, 9
First start
- Charge the battery, insert it into the tool until it clicks, select the desired mode/torque, and press the trigger. p. 8, 9
Problems and fixes
Tool will not start
Check battery connection, charge level, or replace battery.
p. 11
Overheating
Allow tool to work at its own rate, keep bits sharp, and clear blocked vents.
p. 11Maintenance and reset
- Wipe external surfaces with a clean cloth after use. Store in a dry, indoor area. p. 11
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Battery Rating | 20V / 1.5Ah | Voltage and capacity | p. 7 |
| Chuck Size | 1/2" | Capacity of the drill chuck | p. 7 |
Where to find it in the PDF
- Safety Information p. 2, 3, 4, 5
- Specifications p. 7
- Operating Instructions p. 8, 9, 10
- Maintenance and Troubleshooting p. 11
- Parts List and Assembly Diagram p. 12, 13, 14, 15
Table of contents
Manual images
Click an image to enlargeQuick Guide from the Manual
This manual provides instructions for the Bauer 20V Cordless Drill models 1791C-B1 and 1792C-B1. Before using the tool, ensure the battery is fully charged and the trigger is in the off position. Always wear appropriate personal protective equipment, including eye and ear protection.
Safety Information
General Power Tool Safety: Keep the work area clean and well-lit. Do not operate in explosive atmospheres. Keep children and bystanders away. Ensure the switch is in the off-position before connecting the battery pack.
Battery Safety: Keep the battery pack dry. Do not open, drop, short-circuit, puncture, incinerate, or expose to temperatures above 265°F. Charge only with the specified charger.
Vibration and Silicosis: Prolonged use of vibrating tools can cause injury. Use tools with the lowest vibration when possible. When drilling masonry, use NIOSH-approved respirators and safety goggles to prevent silicosis from silica dust.
Setup and Operation
Battery Charging: Charge the battery after unpacking and before using the tool. Follow the instructions included with the battery charger.
Bit Installation: Wear heavy-duty gloves. Rotate the chuck collar counterclockwise to open the jaws, insert the bit, and hand-tighten the chuck securely.
Mode Selection (1792C-B1 only): Rotate the mode selector to choose between Drilling (wood/metal), Driving (screws/bolts), or Hammer Drilling (masonry).
Torque Selection: Use settings 1-17 for driving screws and bolts. Use the drill icon setting for drilling.
General Use: Insert the battery until it clicks. Use the direction switch to select forward or reverse. Press the trigger to start; the work light will turn on automatically.
Maintenance
Cleaning: Wipe external surfaces with a clean cloth after use. Keep motor housing vents clear of dust.
Troubleshooting: If the tool will not start, check the battery connection and charge level. If the tool operates slowly or overheats, avoid forcing it and check for dull bits or blocked vents.
Practical help
Common problems
Tool will not start
Check if the battery pack is properly connected and charged. If the battery is burnt out, replace it.
Tool operates slowly
Do not force the tool; allow it to work at its own rate. Check if the battery is wearing out.
Overheating
Ensure motor housing vents are not blocked. Use sharp bits and do not force the tool.
Before use
- Charge the battery pack fully
- Inspect the tool for damage or loose hardware
- Ensure the trigger is in the off-position
- Select the correct bit for the material
- Set the torque and mode selector appropriately
Specs in practice
- Battery Rating
- 20V / 1.5Ah Li-ion battery
- No Load Speed
- 0-450 / 0-1,700 RPM
Images and diagrams

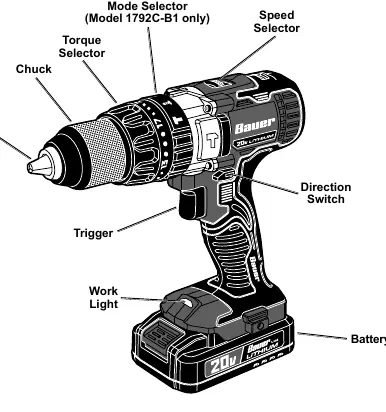

- The functions diagram identifies the trigger, chuck, torque selector, mode selector, and direction switch.
- Assembly diagrams provide a breakdown of internal components for parts replacement reference.
Model compatibility
- 1792C-B1 includes a Hammer Drilling mode for masonry.
- Use only designated battery packs specified by the manufacturer.
