User Manual for Bauer 1981C-B 1/4" Hex Compact Impact Driver
Quick guide for the Bauer 1981C-B 1/4" Hex Compact Impact Driver. Includes setup, bit installation, operation instructions, maintenance tips, and troubleshooting.
Quick answers from the manual
Quick answer
- The Bauer 1981C-B is a 20V cordless impact driver. To operate, insert a charged battery, select the direction using the switch, and press the trigger. Always lock the trigger when not in use. p. 7, 9
Key actions
- Install Bit p. 8
- Set Direction p. 9
First start
- Charge battery, insert into tool, set direction switch, and press trigger. p. 8, 9
Problems and fixes
Tool will not start
Check battery connection and charge level.
p. 11
Overheating
Clear motor vents.
p. 11Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| No Load Speed | 0-2900/min | p. 7 | |
| Chuck Size | 1/4" Hex | Bit shank size | p. 7 |
Where to find it in the PDF
- Functions p. 7
- Operation p. 9
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
This manual provides essential safety, operation, and maintenance instructions for the Bauer 1981C-B 1/4" Hex Compact Impact Driver. Always read the full safety information before use. Ensure the trigger is in the off-position and the battery is removed before performing any setup or maintenance.

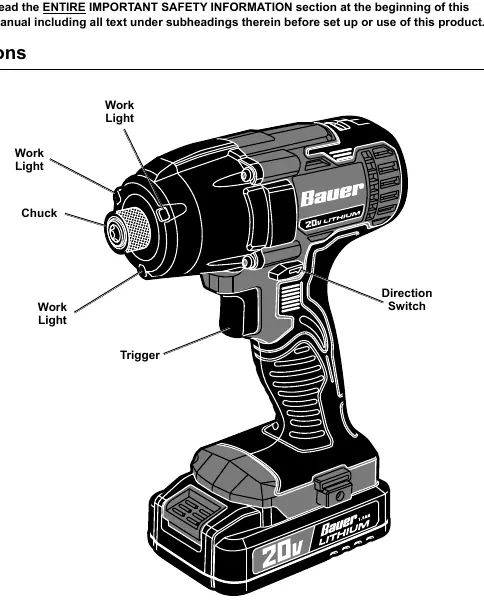

Product Overview
The impact driver features a 1/4" hex chuck, a variable speed trigger, and a direction switch. It is designed for use with Bauer 20V Li-ion batteries.
Setup and Installation
Battery Charging
Charge the battery after unpacking and before using the tool. Follow the instructions provided with your specific battery charger.
Bit Installation
- Pull the collar forward.
- Insert an appropriate 1/4" hex shank impact-rated accessory into the chuck.
- Release the collar and pull on the bit to ensure it is secure.
- To remove, pull the collar forward again and remove the bit.
Attaching Belt Clip
Attach the belt clip to the handle using the supplied screw. The clip can be attached to either side of the tool.
Operation
Direction Switch
The direction switch controls the rotation of the chuck:
- Forward: Push the switch in on the right side (arrow pointing forward) for clockwise rotation.
- Reverse: Push the switch in on the left side (arrow pointing backward) for counter-clockwise rotation.
- Trigger Lock: Push the switch to the center position to lock the trigger. Always set the switch to the center position when the tool is idle or during setup.
Using the Tool
The tool features variable speed; apply more pressure to the trigger to increase speed. The work lights will turn on automatically when the trigger is pressed.
Maintenance and Cleaning
- Before each use: Inspect the tool for damaged battery packs, loose hardware, or misaligned parts.
- After use: Wipe external surfaces with a clean cloth.
- Storage: Store the tool, battery, and charger in a dry, indoor area out of reach of children and away from metal objects to prevent shorting.
Practical help
Common problems
Tool will not start
Check if the battery is properly connected and charged. Ensure there are no obstructions in the battery port.
Tool operates slowly
Do not force the tool; allow it to work at its own rate. Check if the battery is wearing out.
Overheating
Ensure motor housing vents are not blocked. Clear dust using compressed air while wearing appropriate safety gear.
Before use
- Inspect the tool for damage (cracked battery, loose hardware).
- Ensure the battery is fully charged.
- Verify the bit fits the chuck precisely.
- Set the direction switch to the center (lock) position before setup.
- Wear ANSI-approved safety goggles.
Specs in practice
- No Load Speed
- 0-2900/min (RPM) - the speed of the tool without a load.
- Battery Type
- Bauer 20V Li-ion (sold separately).
Images and diagrams
- Direction Switch: Push right for forward, left for reverse, center to lock.
- Bit Installation: Pull collar forward to insert or release bit.
Model compatibility
- Use only 1/4" hex shank bits designed for impact use.
- Use only Bauer 20V Li-ion batteries and chargers.
- Extension cords must not be used with the charger.
