User Manual for Bauknecht BVH 2065B F Induction Hob
Quick guide and user manual for the Bauknecht BVH 2065B F induction hob with integrated extractor. Includes installation, operation, maintenance, and troubleshooting.
PDF source: italiano · summary: English
Quick answers from the manual
Quick answer
- The Bauknecht BVH 2065B F is an induction hob with an integrated extractor. It features 9 power levels, a Power Booster function, Bridge Zones, and a Power Limitation setting. p. 41, 48
Key actions
- To turn on the hob, press the ON/OFF button. p. 48
- To set power level, slide your finger along the selection bar. p. 48
First start
- The Power Limitation setting must be configured within 2 minutes of connecting the hob to the mains. p. 44, 49
Show 5 more answers Show less
Problems and fixes
Command zone switches off due to high temperature
Wait for the hob to cool down.
p. 54
Container unsuitable
Remove the pot.
p. 54Error codes
| Code | Meaning | Action | Pages |
|---|---|---|---|
| E-2 | Command zone switches off due to high temperature | Wait for the hob to cool down. | p. 54 |
| E-3 | Container unsuitable | Remove the pot. | p. 54 |
| E-5 | Communication problems | Disconnect and check connection. | p. 54 |
Maintenance and reset
- After cleaning filters, press and hold the FILTER button to reset. p. 53
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Height | 25 cm | Height of the unit | p. 54 |
| Width | 65 cm | Width of the unit | p. 54 |
| Depth | 51.5 cm | Depth of the unit | p. 54 |
Where to find it in the PDF
- Installation p. 43, 44, 45
- Maintenance p. 52, 53
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
The Bauknecht BVH 2065B F is an induction hob with an integrated extractor system. This guide provides essential information for safe installation, operation, and maintenance.
Safety
Important: The device must be disconnected from the mains before any installation work. Installation must be performed by a qualified technician. The product must be earthed. Do not use power strips or extension cords. The hob and its accessible parts become hot during use; do not touch heating elements. Keep children at a safe distance. If the surface is cracked, switch off the product immediately to prevent electric shock.
Installation
The product is designed to be built into a worktop with a thickness of 2-6 cm (TOP installation) or 2.5-6 cm (FLUSH installation). Ensure a minimum distance of 5 cm in front, 4 cm on the sides, and 50 cm from overhead wall units. The electrical connection must be carried out by qualified personnel. The product is intended for permanent connection to the mains via an approved omnipolar switch.
Using the Hob
The induction system transfers energy directly to the pot. Use only pots and pans with the induction symbol. The hob features 9 power levels and a Power Booster function. Use the selection bar to adjust power. The hob includes a Timer, Bridge Zones (to combine two cooking zones), and a Temperature Manager (Warming Function).
Using the Extractor
The extractor can be used in duct-out or recirculating mode. It features 3 speed levels and 2 Power Booster levels. It includes an automatic mode that adjusts extraction speed based on the cooking level. Maintain the grease and odour filters regularly for optimal performance.
Maintenance
Clean the hob after each use. Do not use abrasive sponges or steam cleaners. Clean the grease filter monthly. Ceramic odour filters can be thermally regenerated in an oven at 200°C for 45 minutes every 2-3 months.
Manufacturer information
Bauknecht
Practical help
Common problems
Command zone switches off due to high temperature
Wait for the hob to cool down before reusing it.
Container unsuitable
Remove the pot; the container has lost its magnetic properties.
Communication problems between user interface and induction module
Disconnect the hob from the electrical network and check the connection.
Before use
- Check that the product is not damaged.
- Ensure the power cable is not damaged.
- Verify that the voltage on the rating plate corresponds to your home supply.
- Ensure the hob is installed by a qualified technician.
- Check that the hob is installed in a suitable worktop thickness (2-6 cm).
Show more Show less
Specs in practice
- Power Limitation
- Allows setting a maximum power limit (kW) for the hob to match your electrical system.
- Bridge Zones
- Combines two cooking zones into one larger zone for large cookware.
Images and diagrams
- Page 3: Components included in the package.

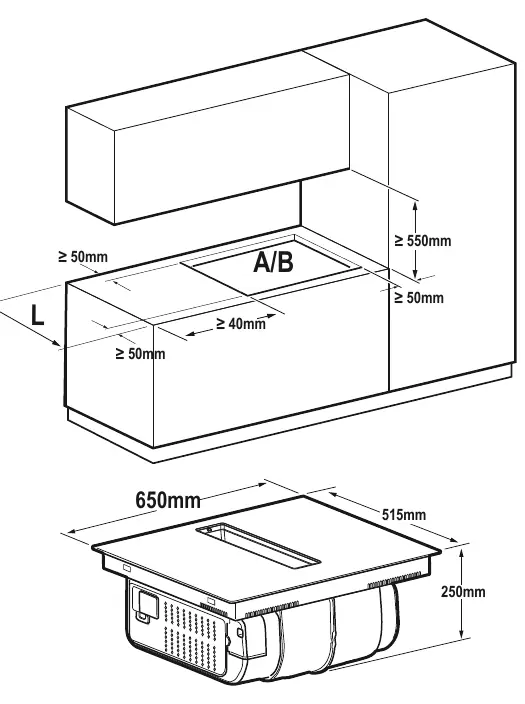

- Page 4: Installation dimensions and clearances.

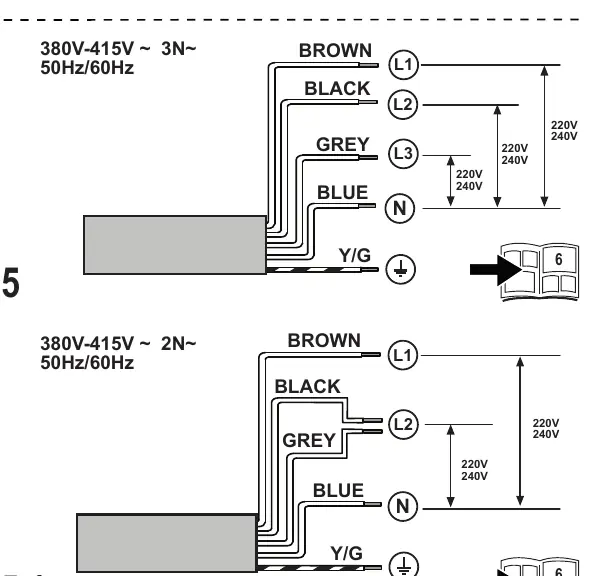

- Page 10: Electrical connection diagrams for different power configurations.
- Page 32: Control panel layout and function keys.
Model compatibility
- Use only pots and pans with the induction symbol.
- Pots must have a flat bottom.
- Do not use metal cookware with an enamelled base.
- Do not use cookware with a rough base to avoid scratching the hob.
