Installation and User Guide for BEGA 24918K3 Wall Luminaire
Comprehensive installation and maintenance guide for the BEGA 24918K3 wall luminaire. Includes mounting instructions, technical specifications, safety guidelines, and LED module replacement procedures.
PDF source: Français · summary: English
Quick answers from the manual
Quick answer
- The BEGA 24918K3 is an IP65-rated wall luminaire. Installation must be performed by a qualified electrician, ensuring the 'arrow down' orientation and the inclusion of the desiccant pouch for longevity. p. 1, 2
Key actions
- Mounting p. 2
- LED Replacement p. 3
Problems and fixes
Damaged glass
Defective glass must be replaced.
p. 3Show 3 more answers Show less
Maintenance and reset
- Clean regularly with a soft, lint-free, damp cloth. p. 2
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Luminaire connected wattage | 13.5 W | Power consumption of the luminaire | p. 1 |
| Protection class | IP 65 | Dust-tight and protection against water jets | p. 1 |
| Colour temperature | 3000 K | Light color | p. 1 |
Where to find it in the PDF
- Technical Data p. 1
- Installation and Safety p. 2
- Maintenance and Spares p. 3
Table of contents
Quick guide from the manual
The BEGA 24918K3 is a shielded wall luminaire with an IP65 protection rating. Installation must be performed by a qualified electrician. Key requirements include ensuring the luminaire is mounted with the "arrow down" orientation and placing the included desiccant pouch inside the housing before final closure to ensure maximum service life.
Product description
This luminaire is constructed from die-cast aluminium and stainless steel with BEGA Unidure coating. It features an impact-resistant synthetic diffuser (BEGA NeoGlass) and is designed for outdoor use with dust-tight and water-jet protection.
Installation
Preparation: Ensure the power is disconnected. The installation must be carried out by a qualified electrician in accordance with national safety regulations.
- Undo the screws to remove the luminaire top and the diffuser.
- Lead the mains supply cable through the cable entry of the luminaire base.
- Important: Observe the "arrow down" position on the luminaire back plate.
- Fix the luminaire base to the mounting surface using the provided or suitable fixing material. Ensure the supplied gasket rings are used.
- Make the earth conductor connection and the electrical connection.
- Remove the desiccant pouch from its foil packaging and place it in the position marked by the red information label inside the luminaire.
- Reattach the diffuser with the gasket and the luminaire top. Tighten the screws evenly.
Maintenance and cleaning
Clean the luminaire regularly with a soft, lint-free, damp cloth. Use water with a little dishwashing detergent if necessary. Do not use high-pressure cleaners or cleaning agents containing solvents. For lacquered surfaces, BEGA Lacquer Care Set 71 179 is recommended.
Replacing the LED module
The LED module can be replaced by a qualified person using standard tools. Disconnect the system from the power supply before opening the luminaire. Ensure the replacement module matches the original specifications. Check and replace gaskets if necessary.
Manufacturer information
BEGA
Practical help
Common problems
Water ingress or condensation
Ensure the gasket is correctly positioned and the luminaire is properly sealed. Use the provided desiccant pouch inside the luminaire.
LED failure
The LED module can be replaced by a qualified person using standard tools. Ensure the power is disconnected first.
Before use
- Ensure installation is performed by a qualified electrician.
- Verify the 'arrow down' position on the luminaire back plate.
- Ensure the desiccant pouch is placed inside the luminaire before closing.
- Check that the gasket is correctly seated.
- Ensure the mains supply cable diameter is between 7-10.5mm.
Show more Show less
Specs in practice
- Safety Class I
- Requires earth conductor connection.
Images and diagrams

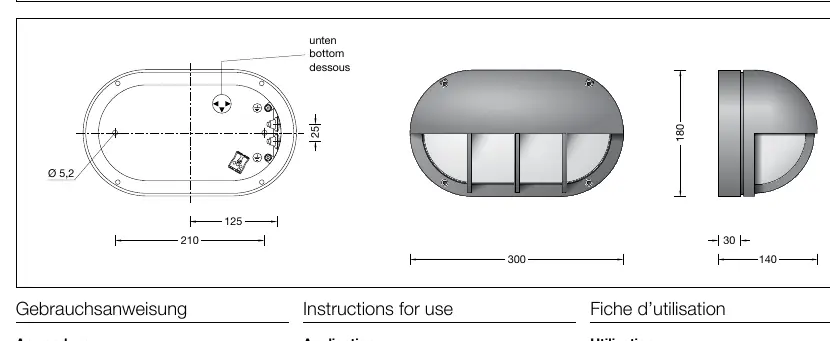

- The diagram on page 1 shows the mounting dimensions with 210mm hole spacing.
- The diagram indicates the 'bottom' orientation for correct installation.
Model compatibility
- Compatible with BEGA 71320 electronic relay for overvoltage protection.
- Compatible with BEGA Lacquer Care Set 71 179 for surface maintenance.
