Instruction Manual for BEGA 24790WK3 Recessed Ceiling Spotlight
Quick guide for the BEGA 24790WK3 recessed ceiling spotlight. Includes installation instructions for concrete and suspended ceilings, wiring details, maintenance, and technical specifications.
Quick answers from the manual
Quick answer
- The BEGA 24790WK3 is a recessed ceiling spotlight requiring a 68mm diameter cutout and 105mm installation depth. It is rated IP65 for indoor and outdoor use. p. 1
Key actions
- Installation in suspended ceilings p. 2
- Wiring the luminaire p. 2
First start
- Ensure power is disconnected before starting installation. p. 2
Show 3 more answers Show less
Maintenance and reset
- Cleaning the luminaire p. 3
- Replacing the LED module p. 3
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Operating Voltage | 220-240 V, 0/50-60 Hz | Power supply requirements | p. 1 |
| Protection Class | IP 65 | Dust-tight and protection against water jets | p. 1 |
| Impact Strength | IK07 | Protection against mechanical impacts < 2 joules | p. 1 |
Where to find it in the PDF
- Product Overview and Specifications p. 1
- Installation and Safety p. 2
- Maintenance and Spares p. 3
Table of contents
Quick Guide from the Manual
The BEGA 24790WK3 is a recessed ceiling spotlight designed for both indoor and outdoor use. It requires a 68mm diameter cutout and a minimum installation depth of 105mm. The luminaire is supplied with an external power supply unit. Installation must be performed by a qualified electrician.
Product Description
The luminaire is constructed from cast aluminium, aluminium, and stainless steel with BEGA Unidure® coating technology. It features a polymer lens and is available in graphite or white. The unit is dust-tight and protected against water jets (IP65) and has an impact strength of IK07.
Safety Information
- Installation and operation must comply with national safety regulations.
- Only a qualified electrician may perform installation and commissioning.
- The manufacturer is not liable for damage caused by improper use or installation.
- Modifications to the luminaire make the modifier responsible for the product.
- Electronic components are protected against overvoltage according to DIN EN 61547.
Installation
Installation in Concrete Ceilings
For concrete ceilings, it is recommended to use the installation housing 13618 to accommodate the luminaire and the external power supply unit.
Installation in Suspended Ceilings
A recessed opening of 68mm diameter is required, with a minimum depth of 105mm. The external power supply unit requires a minimum clearance of 105mm above the ceiling.
Wiring Instructions
- Undo the screw and lift the cover off the connection housing.
- Pass the power connecting cable through the screw cable gland.
- Make the electrical connection. If a protective earth conductor is included, connect it to the terminal marked “E”.
- For through-wiring, replace the factory-installed dummy plug with the enclosed sealing ring.
- Tighten the screw cable glands securely and refit the cover.
- Slide the external power supply unit into the ceiling opening.
- Press the luminaire housing against the spring pressure into the installation opening.
Maintenance and LED Replacement
Clean the luminaire regularly with solvent-free cleansers to remove dirt and deposits. Do not use high-pressure cleaners. The LED module can be replaced by qualified persons using standard tools. Always disconnect the system from the power supply before opening the luminaire and replacing the module. Inspect and replace gaskets if necessary.
Technical Specifications
- Power Supply: 220-240 V, 0/50-60 Hz
- Module Connected Wattage: 5 W
- Luminaire Connected Wattage: 6.3 W
- Protection Class: II
- Protection Rating: IP 65 (Dust-tight and protected against water jets)
- Impact Strength: IK07 (< 2 joules)
- Colour Temperature: 3000 K
- Colour Rendering Index: CRI > 80
- Luminaire Luminous Flux: 650 lm
Manufacturer information
BEGA
Practical help
Common problems
Installation depth constraints
Ensure there is at least 105mm of clearance above the ceiling for the power supply unit.
Electrical connection issues
If using through-wiring, ensure the factory-installed dummy plug is replaced with the provided sealing ring.
Before use
- Verify the ceiling cutout diameter is exactly 68mm.
- Ensure a minimum installation depth of 105mm is available.
- Disconnect the power supply before starting installation.
- For concrete ceilings, ensure installation housing 13618 is available.
- Check that the protective earth conductor is connected to terminal 'E' if present.
Show more Show less
Specs in practice
- Safety Class II
- The device is double-insulated and does not require a protective earth connection for the luminaire itself.
Images and diagrams

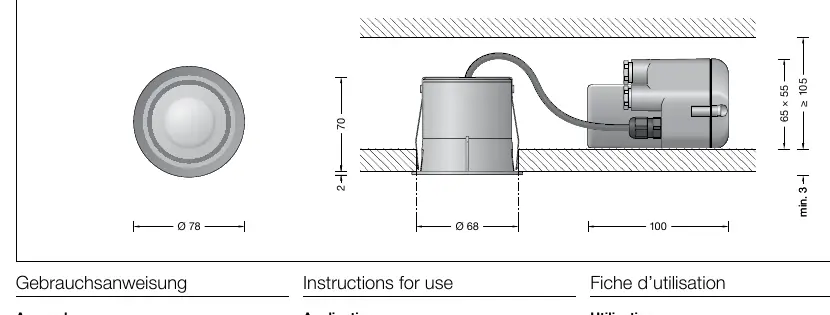

- The diagram on page 1 illustrates the required dimensions: 78mm outer diameter, 68mm cutout diameter, and 105mm minimum installation depth.
Model compatibility
- Compatible with installation housing 13618 for concrete ceiling installations.
